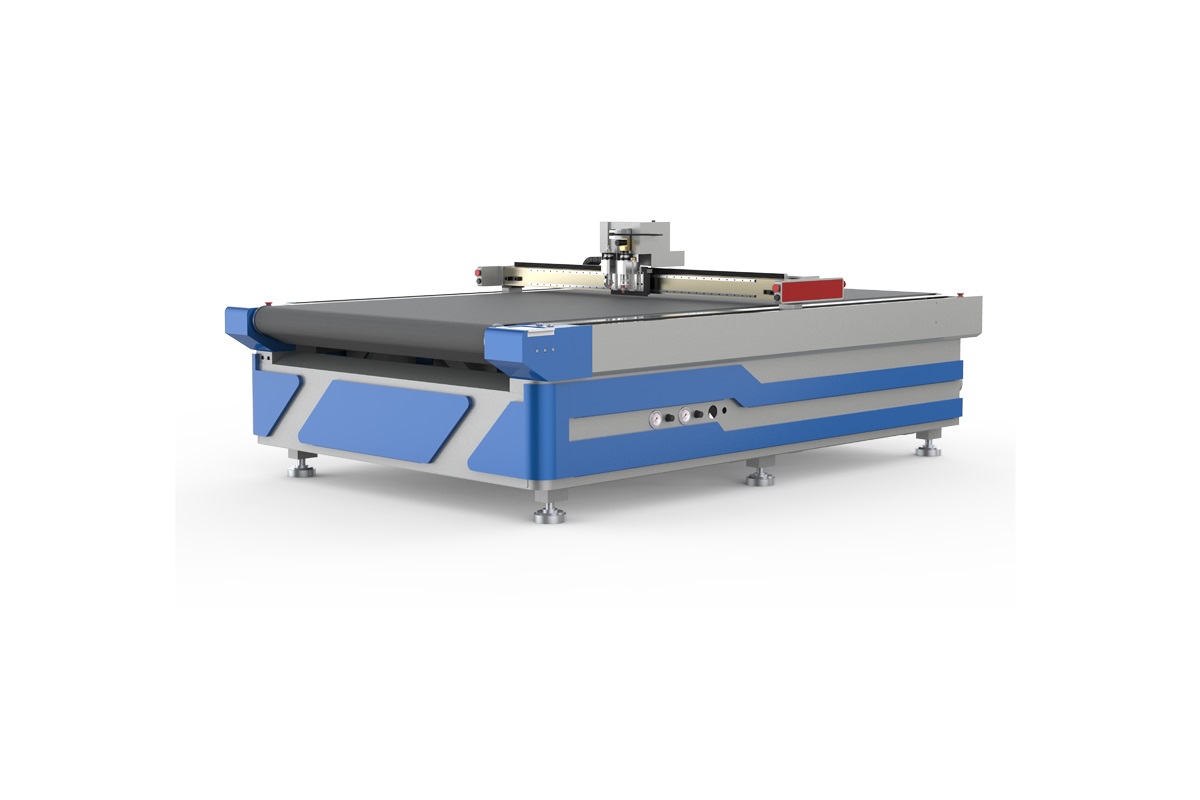

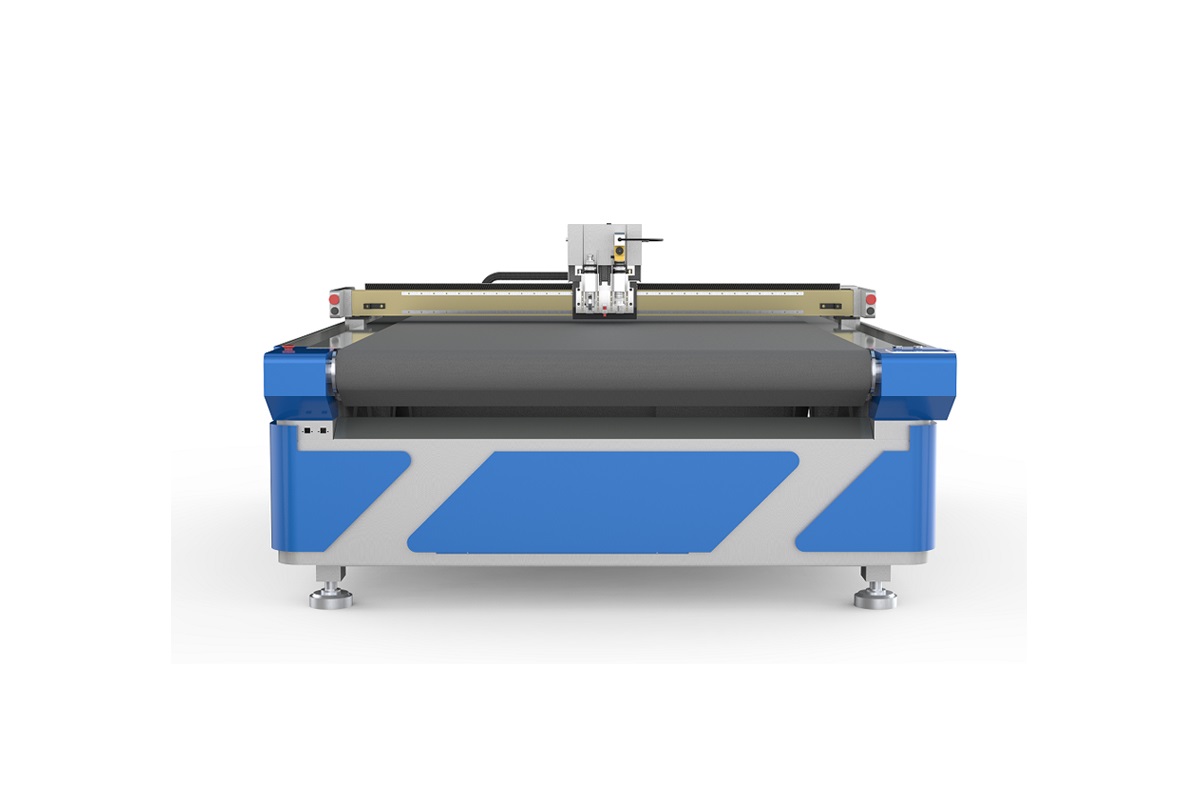

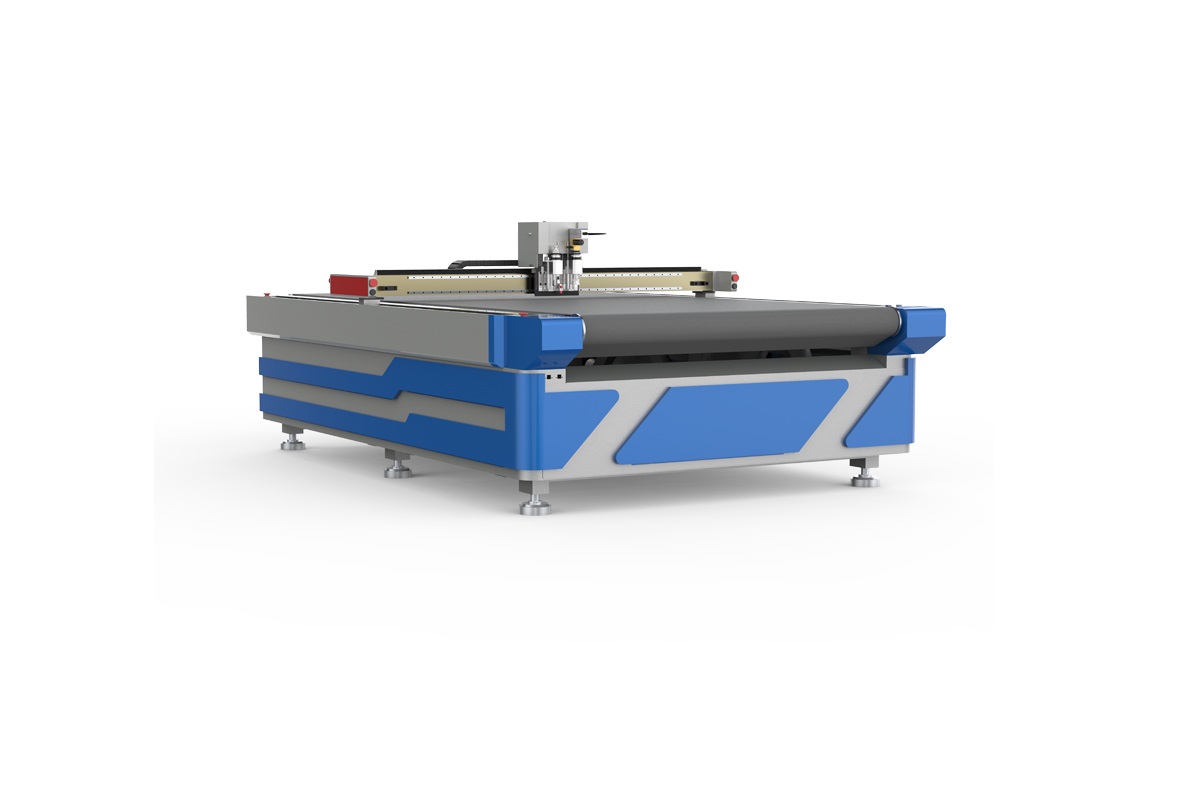

Digital cutting machine with convey belt

Application material



Corrugated paper, Cardboard, KT board, Composite Material, Honey Comb Plate, Acrylic, PVC, Foam, Rubber, fabric, Leather etc.



Feature



Hopetool Digital Cutting System is a high precision system what can realize through cutting, kiss cutting, milling, Conveyor system for each size, Optional for Electric Oscillating Tool, Pneumatic Oscillating Tool, CNC Router, V-Cut Tool,

Kiss-Cut Tool, Driven Rotary Tool, CCD Camera Registration System, Autoloader, Projector, Nature Leather System

punching, creasing and marking functions with high seed and high precision. With autoloader, it can complete the material with different cutting tools, suitable for different kind of materials. feeding and collecting quickly. It is quite suitable for sample making, short run and mass production in sign, advertising, printing and packaging.



Parameter



        Model HT-1610  HT-1625    HT-1825
      Cutting size 1600*1000mm 1600*2500mm 1800*2500mm
Cutting Speed ≤ 1.500 mm/s
Cutting Depth ≤ 50 mm (optional up to 70 mm)
Cutting Accuracy ≤ 0,1 mm
Media Fixture Method Vacuum System
Pump Power 5.5KW / 7.5KW / 9KW
Operating Environment Temperature 0°C – 40°C Humidity 20% – 80% RH
Software RUIDA CAD
Required data files DXF, HPGL, PLT,AI
Interface USB/ LAN /Serial Port
Power Supply 220V/50Hz 380V/50Hz
Cutting Material Corrugated paper, Cardboard, KT board, Composite Material, Honey Comb Plate, Acrylic, PVC, Foam, Rubber, fabric, textile, Leather,fiber glass, carbon fiber, gasket etc.—Advertisement, Automotive interior, Sofa Industries, Shoes industries, Cloth Industries, Digital Printing, Sublimation Materials, Leather Industries.

    Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
