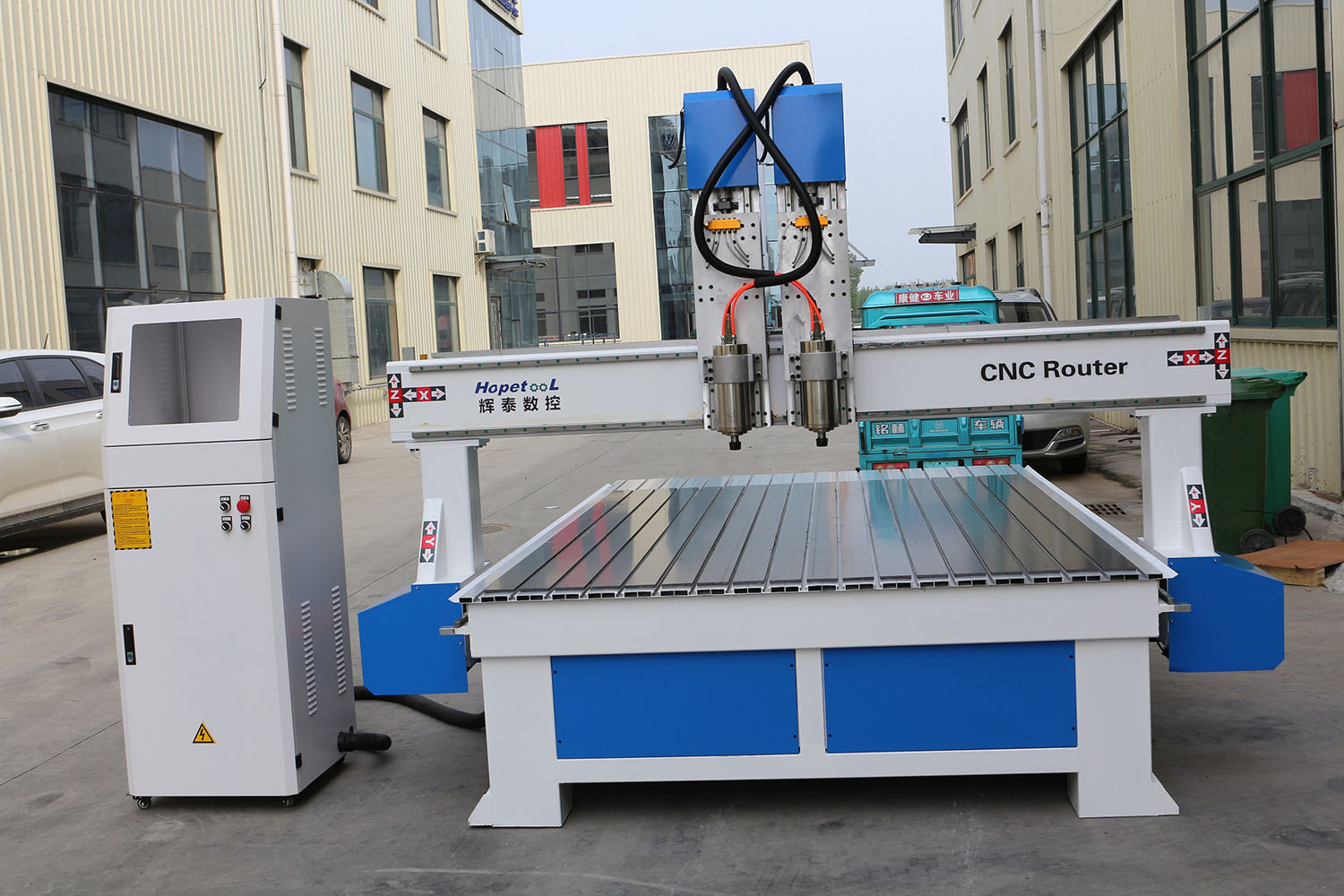

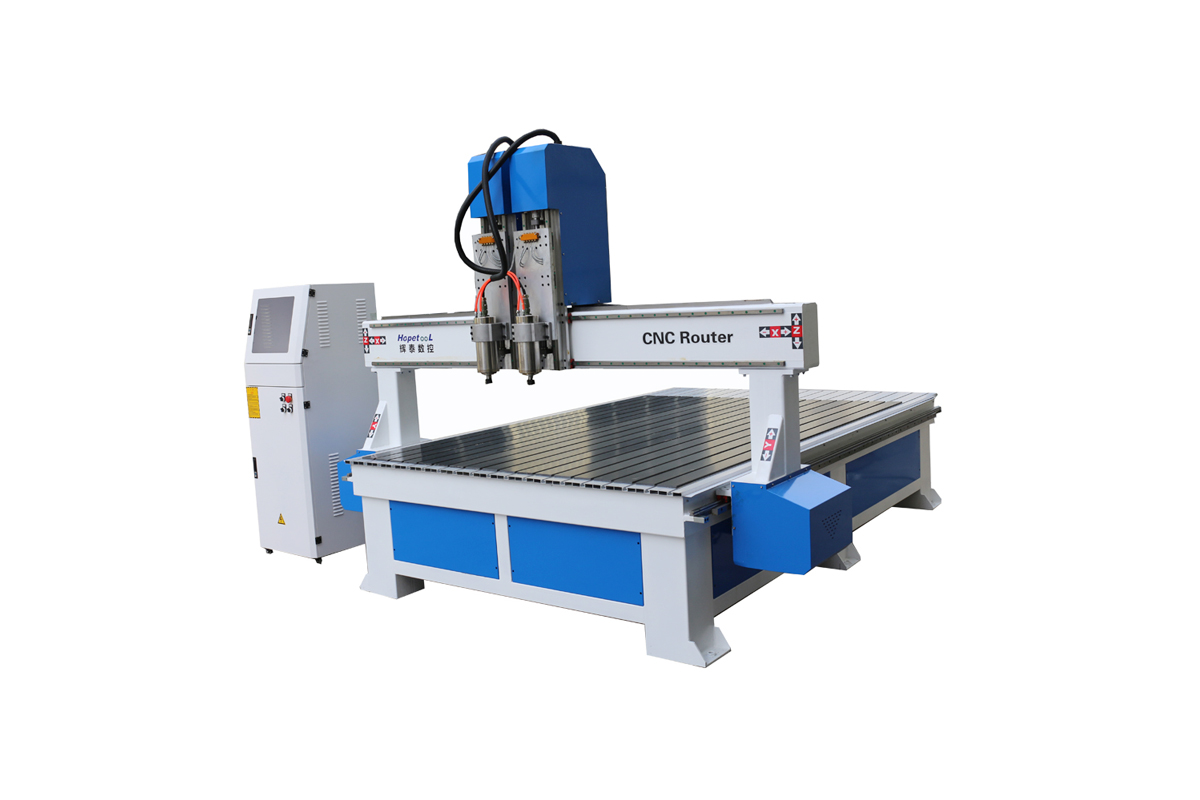

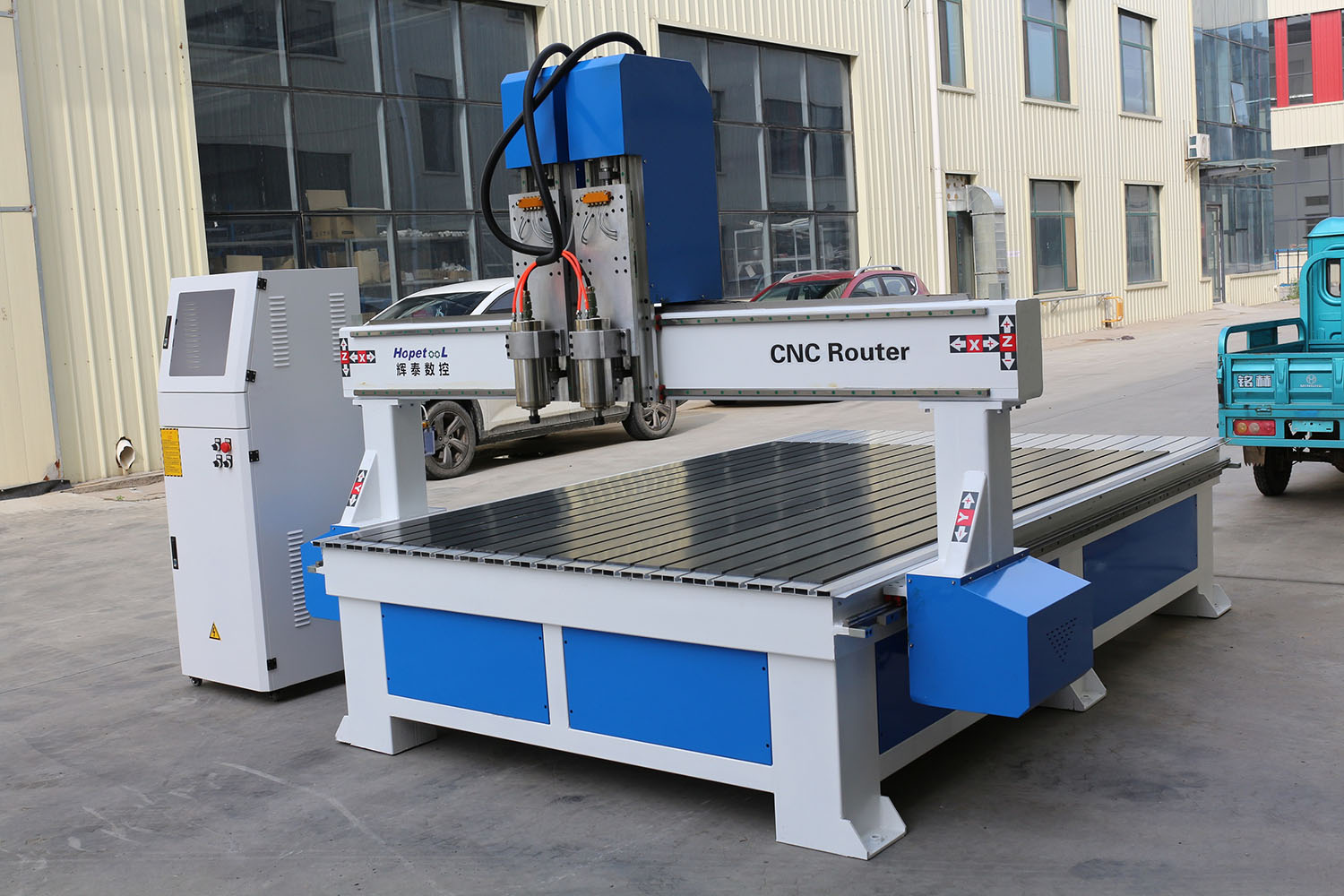

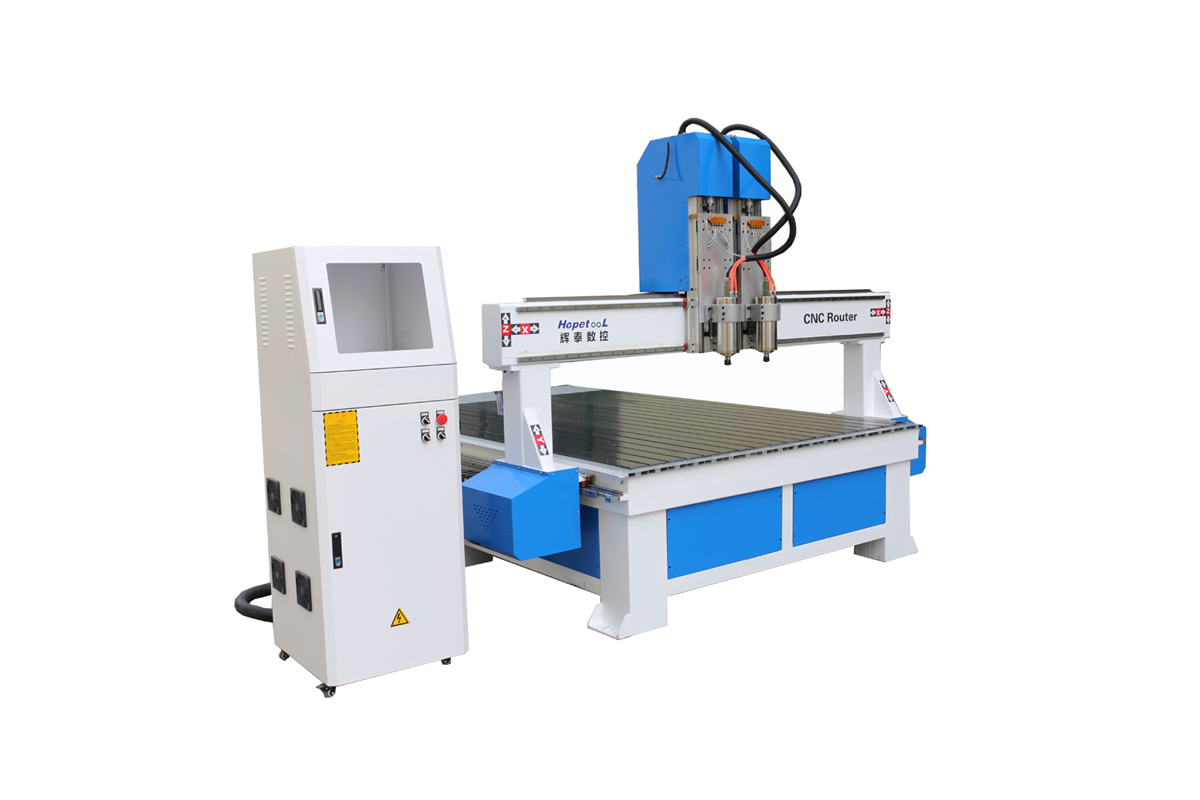

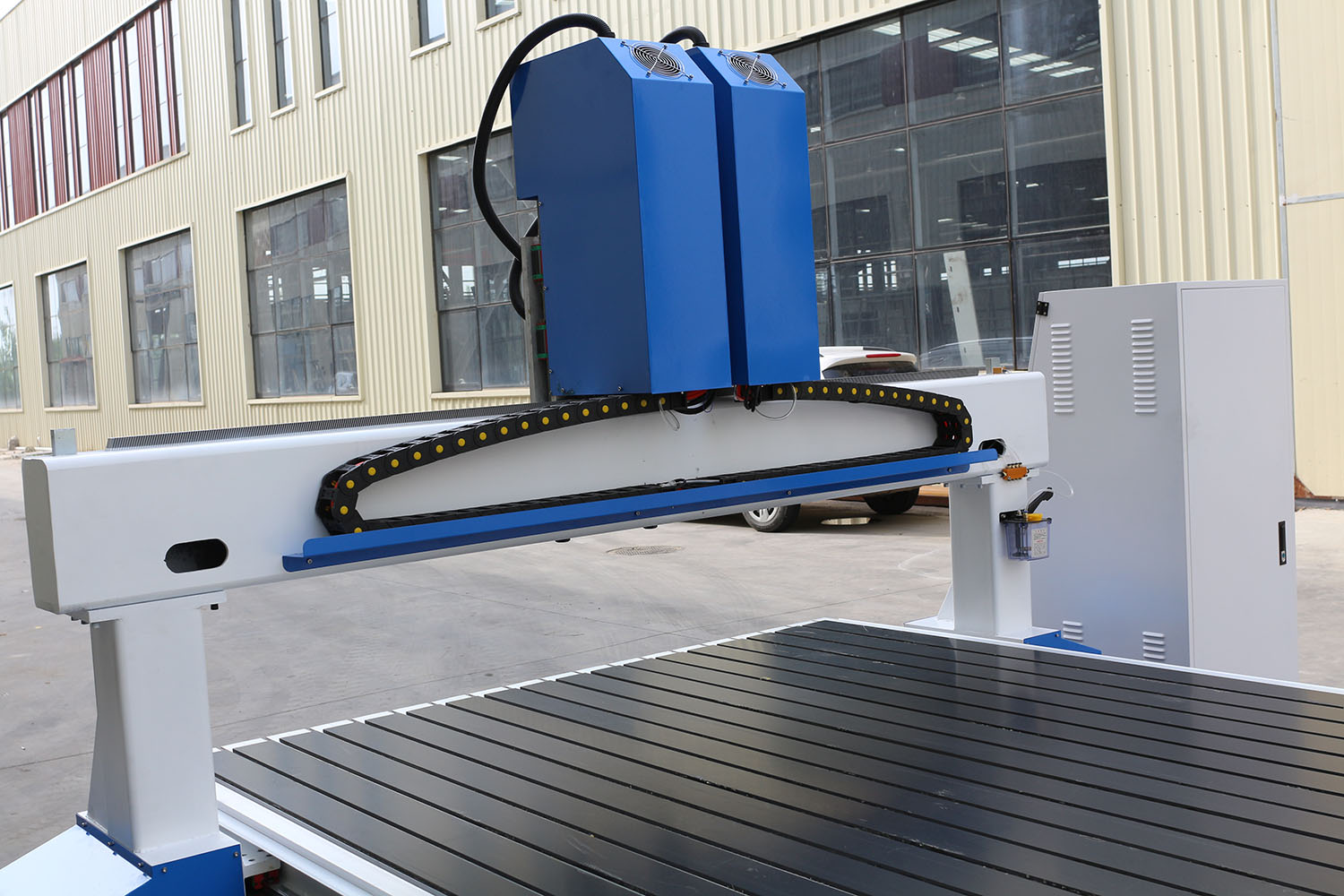

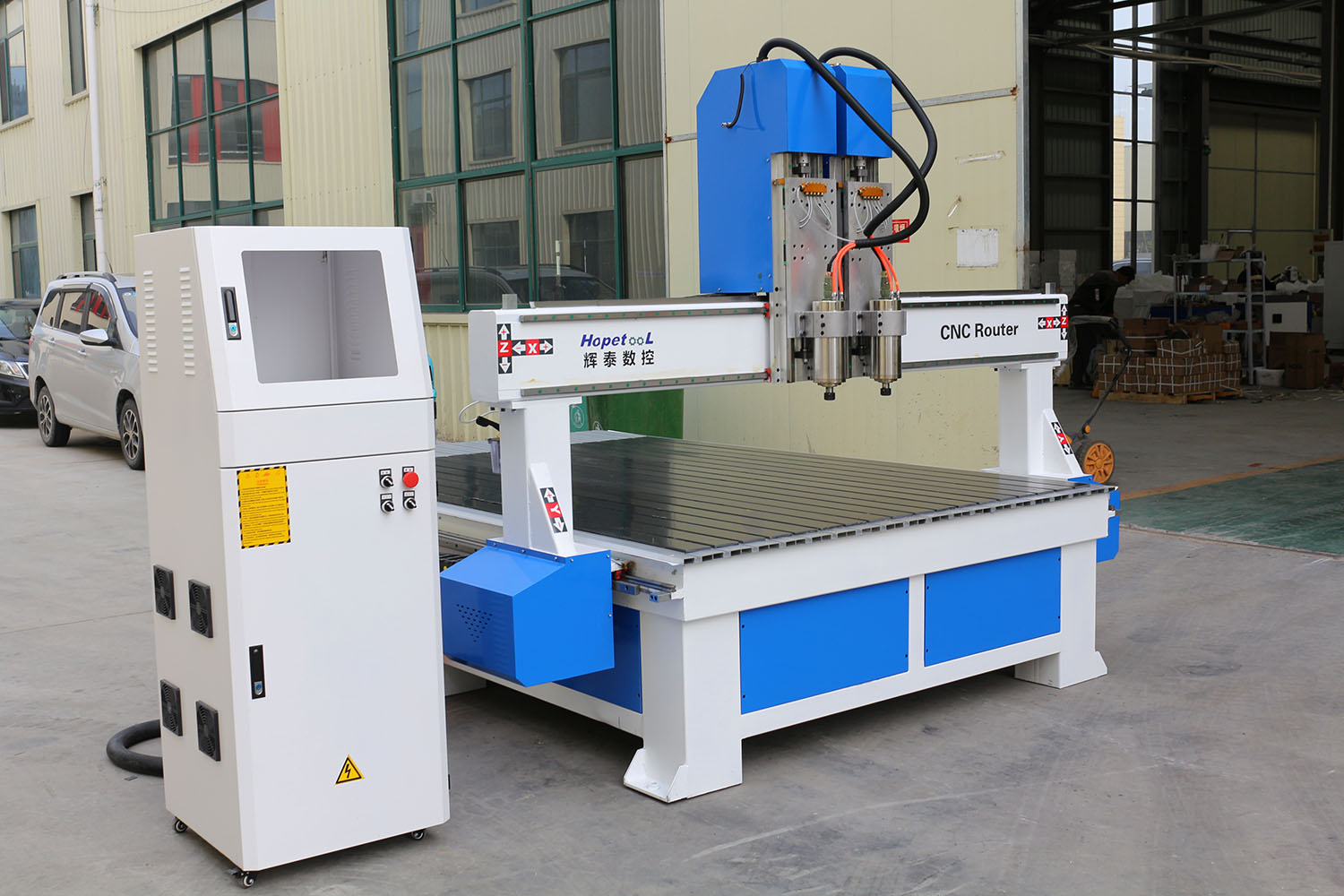

Two spindles Cnc Router 1825
Characteristic:

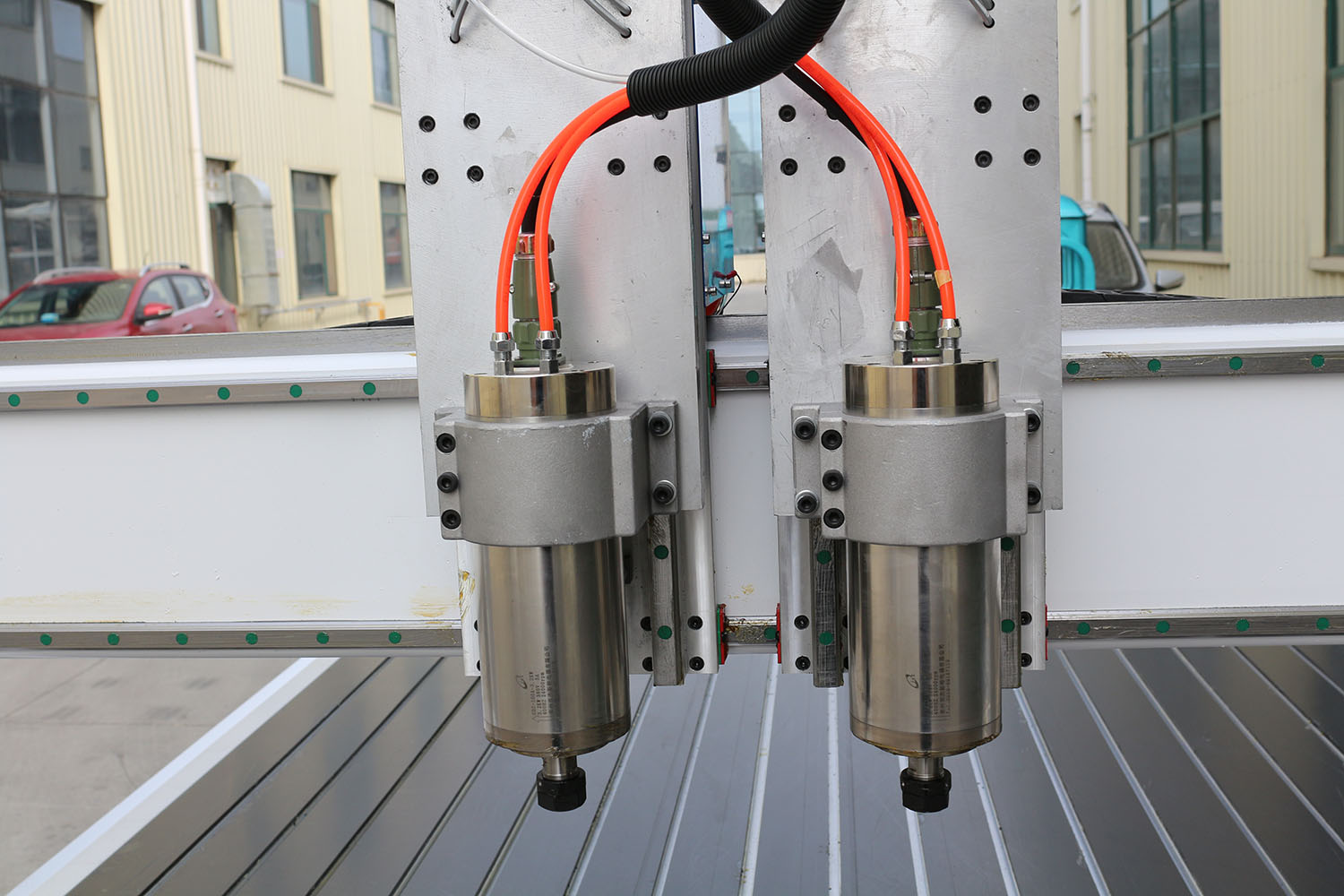

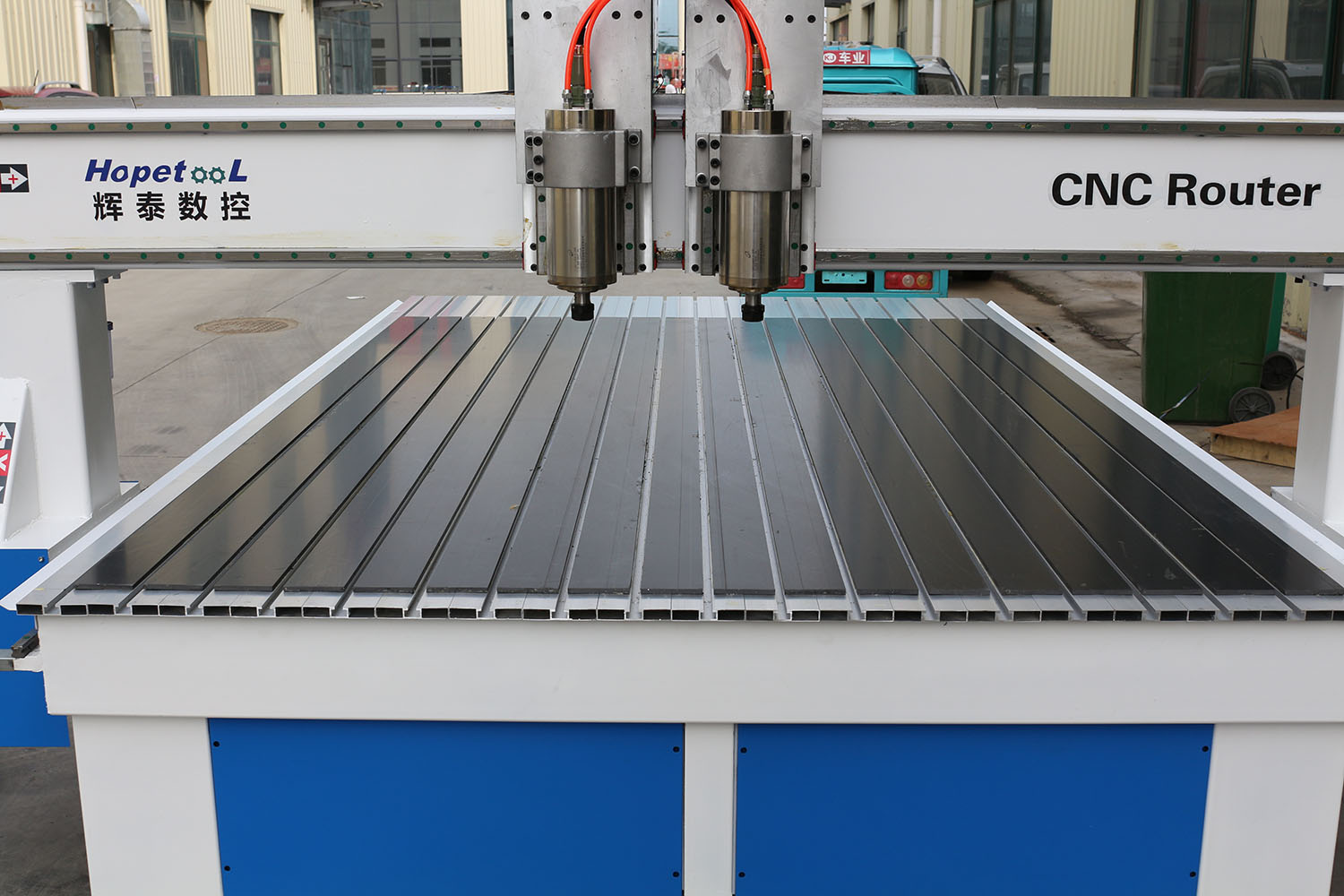

1.Two spindles can use two different tools for three different processing at the same time, which is similar with an economical
auto-tool changer cnc machine center with two tools.
2.the vacuum pump holds tightly the carving materials which makes operating more reliable an convenient.
3.leading rack rotation with high speed and strength.air speed can be 50m/min,when working in wave board also can be 25m/min.
4.our software is compatible with type3/artcam/castmate/weitai and so on .
5.advanced USB connection with DSP operating system,fast &smooth processing,our routers can completely work off-line.

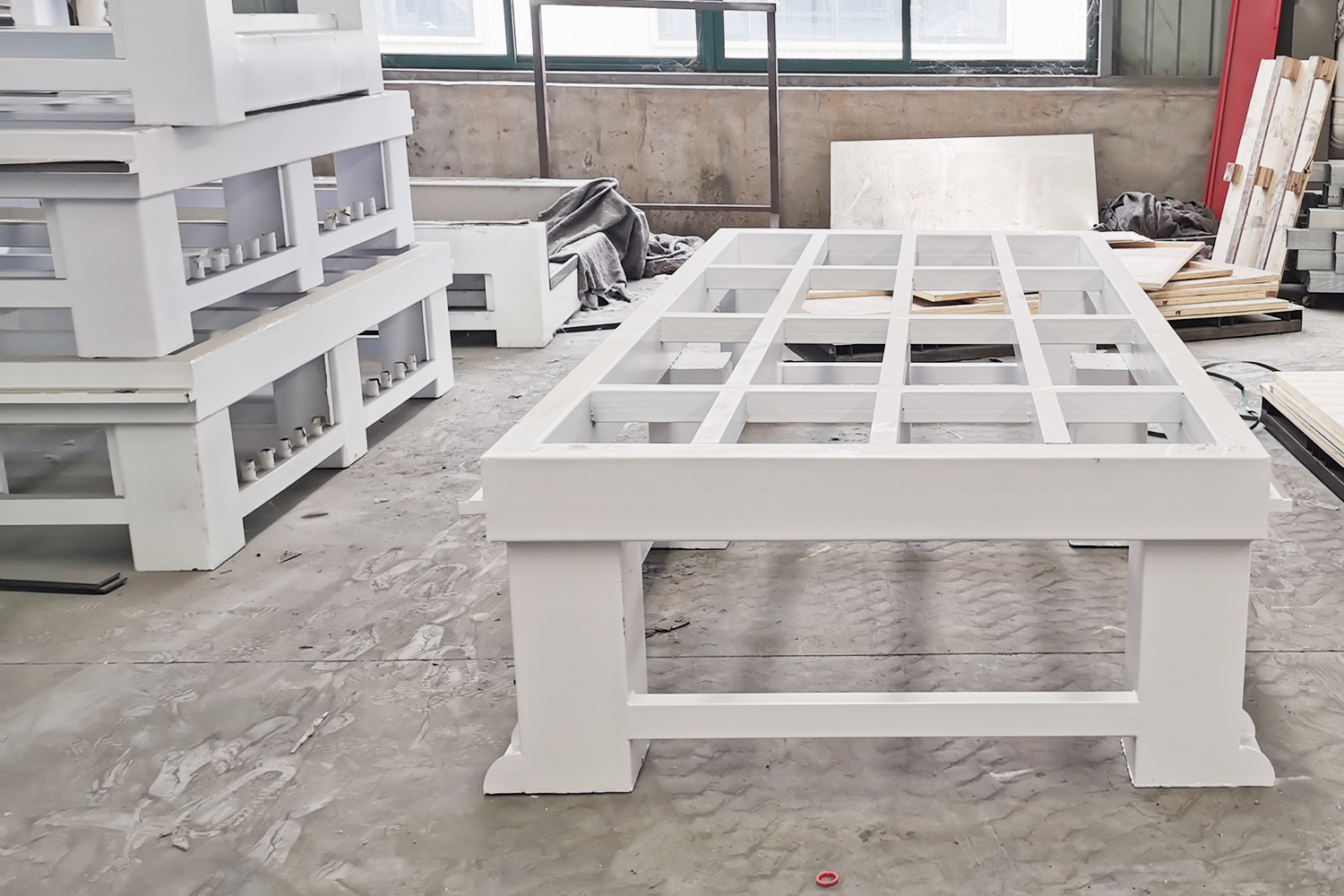

6.the whole welding structure is shaped through tempeing treatment,making it solid and long lasting.
Performance parameter:
|
number
|
Description
|
parameter
|
|
1
|
XYZ working area
|
1800*2500*400mm
|
|
2
|
Table size
|
1310*3000mm
|
|
3
|
XYZ travel positioning accuracy
|
±0.01mm
|
|
4
|
XYZ repositioning positioning accury
|
±0.01mm
|
|
5
|
Table surface
|
Bakelite sheet
|
|
6
|
grantry
|
steel
|
|
7
|
drive system X-Y axis
|
Rack actuation
|
|
8
|
drive system Z axis
|
Ball screw
|
|
9
|
Spindle power
|
3/4.5KW
|
|
10
|
Max velocity
|
50m/min
|
|
11
|
Max working speed
|
25m/min
|
|
12
|
Spindle speed
|
0-24000rmp
|
|
13
|
work mode
|

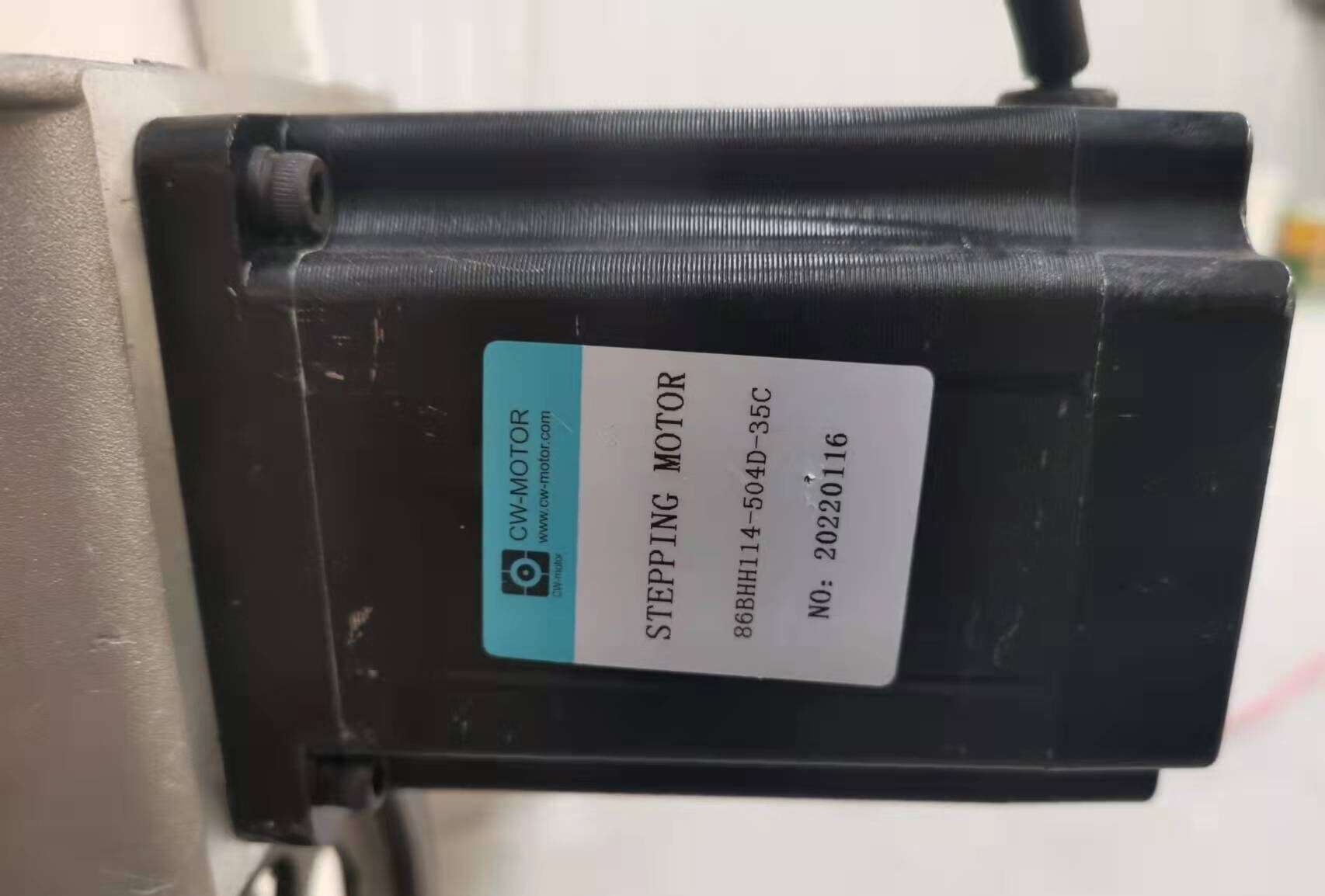

step(optional servo)
|
|
14
|
Working voltage
|
AC220V
|
|
15
|
Command language
|
G code
|
|
16
|
Interface
|
USB
|
|
17
|
Operating system
|
DSP
|
|
18
|
Flash memory
|
128
|
|
19
|
X-Y resolution
|
0.025mm
|
|
20
|
Software environment
|
Wentai type3 artcam
|
|
21
|
Running environment
|
Temperature:0-45°C
|
|
22
|
Paking size
|
3300*1900*1900mm
|
|
23
|
Net weight
|
1000 kg
|
|
24
|
Gross weight
|
1200 kg
|
Detail：
Working Samples：
FAQ
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
