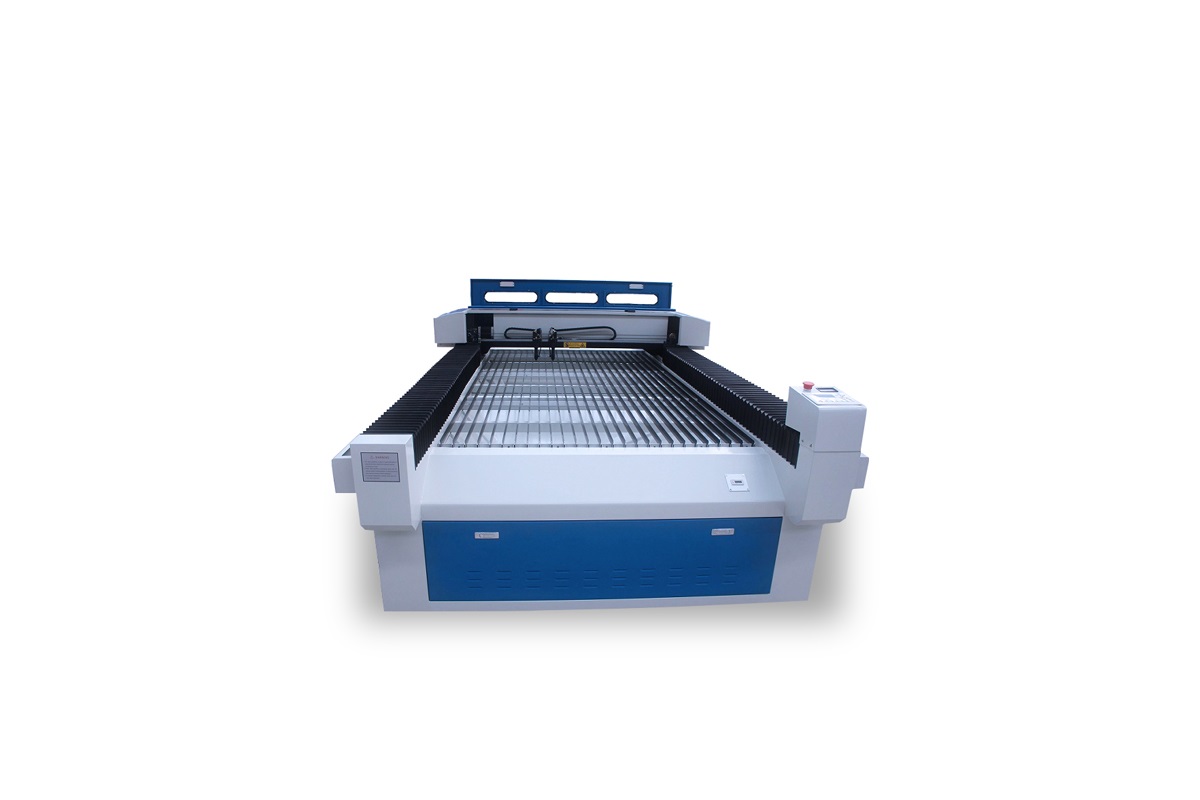

Two heads laser cutting machine HT-1325



Characteristic



This type machine is a kind of laser engraving cutting machine system equipped with two Co2 laser tube and  two heads, can work together or individually, it is used to engrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials .



Performance parameter



Model  Laser cutting machine (HT-1325)
Working area 130cm*250cm
Equipment Dimension 308cm*200cm*112cm
Laser power  90/100/130/150W
Laser type CO2 sealed laser tube,water-cooled
Engraving speed 0-6000cm/min
Cutting speed 0-5000cm/min
Power supply 220V/50HZ , 110V/60HZ
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving system stepper motor
Net Weight 1150kg
Optional parts Up-down worktable,Rotary axis
Applicable material Acrylic, crystal, glass, ceramic, marble, metal coating, cloth, fabric, wood etc.



Application



Cutting, engraving and punching soft materials, such as all sorts of clothing, leather, carpet, suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics etc.



Material    Cut  Engrave
Acrylic | Plexiglass | PMMA | Perspex   √
Organic board | Double color sheet   √
Wood | Plywood | Veneer | MDF | Balsa   √
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather   √
Fabric | Cloth | Textile   √
Carpet | Mat | Rug | Wool Felt   √
Paper | Cardboard | Chipboard | Press Board   √
Ceramic | Tile | Marble | Glass   √
Plastic   √
Fiber Glass | Filter Cloth   √



    Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
