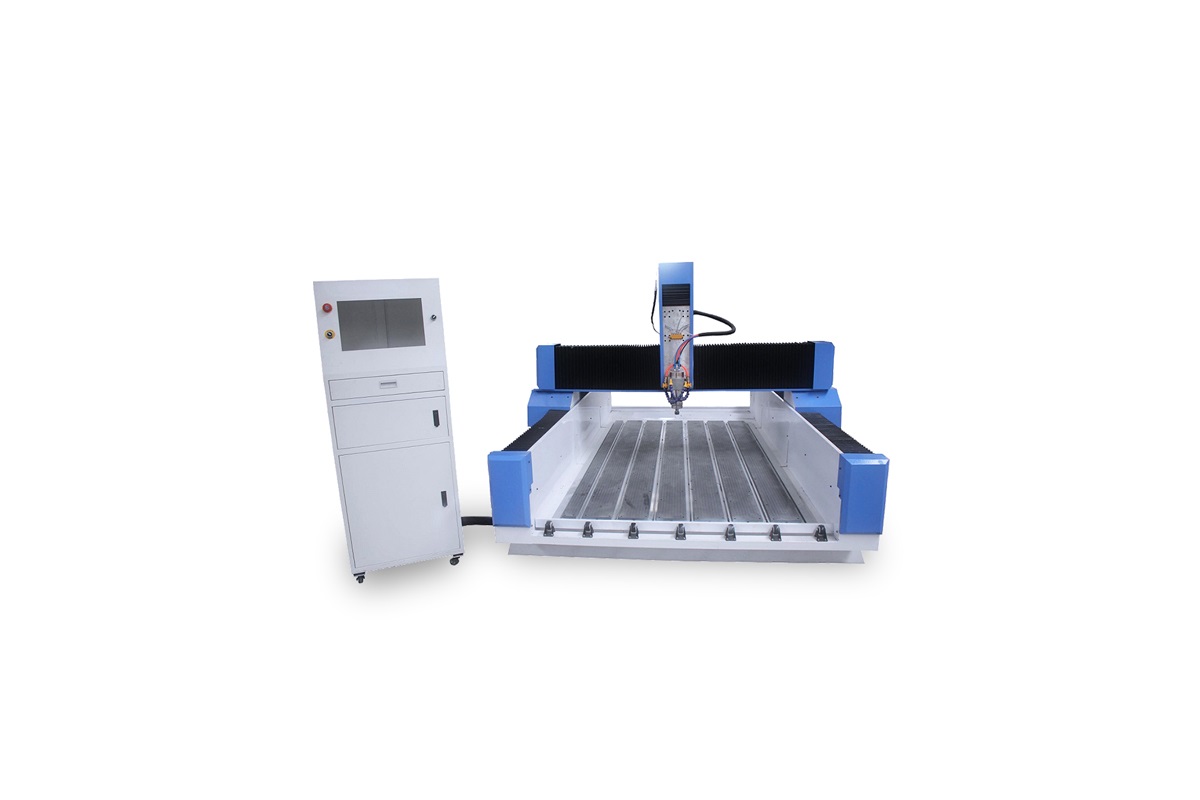

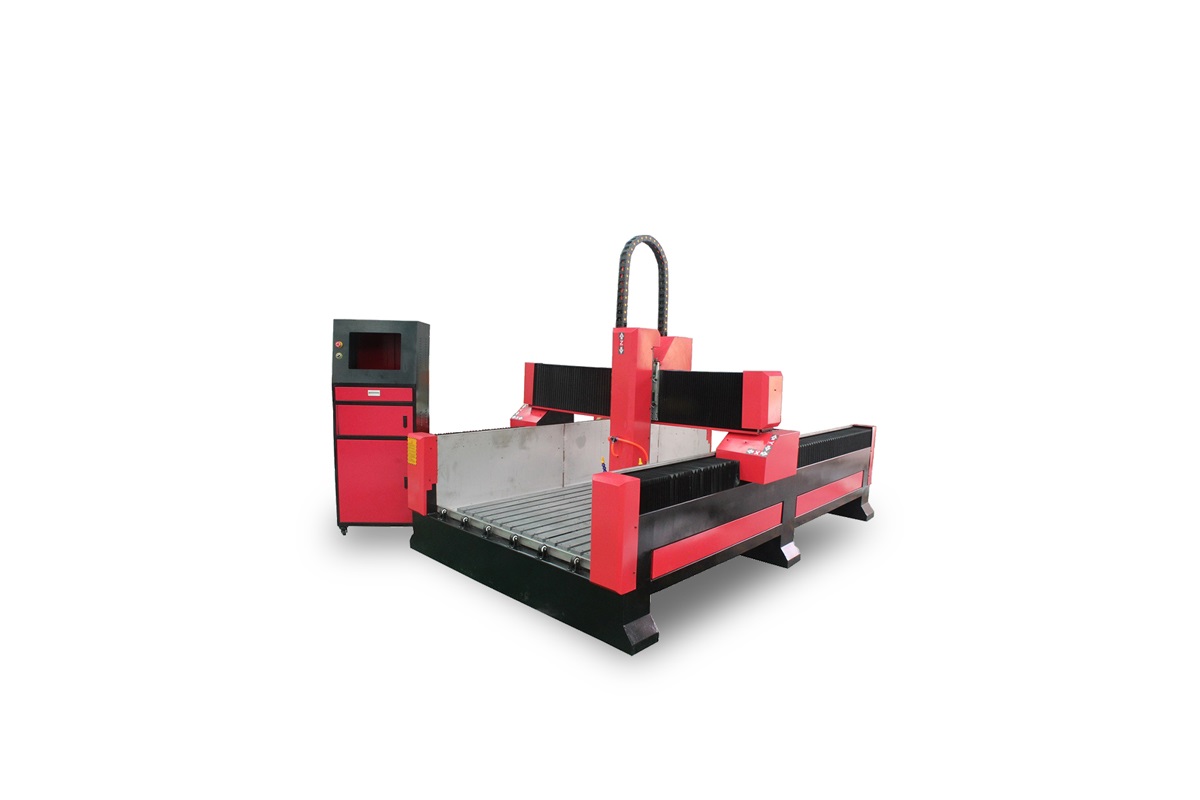

Stone CNC router HT-S1325



  characteristic:



1.leading Rack Drive, fast, high efficiency, air-speed can reach 35 m / min or more, against the wave plate is carved in manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 — 5 ordinary type machines.
2. intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage. Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon.
3. fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing, carving or cutting. Offline operation can be realized.
5.the overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table can be arbitrary processing work table material.
6. suitable for a variety of materials processing large quantities of production.

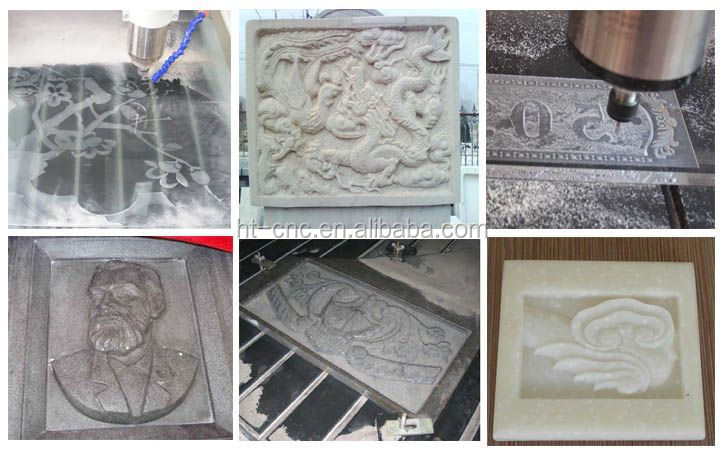

7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.



  performance parameter:



number Description parameter
1 XYZ working area 1300*2500*300mm
2 Table size 1310*3000mm
3 XYZ travel positioning accuracy ±0.025mm
4 XYZ repositioning positioning accury ±0.025mm
5 Table surface Aluminum T slot +PVC
6 grantry steel
7 drive system X-Y axis Rack
8 drive system Z axis Ball screw
9 Spindle power 3/5.5KW
10 Max velocity 50m/min
11 Max working speed 25m/min
12 Spindle speed 0-24000rmp
13 work mode step(optional servo)
14 Working voltage AC220/380V
15 Command language G code
16 Interface USB
17 Operating system DSP/Mach3/Ncstudio
18 Flash memory 128
19 X-Y resolution 0.025mm
20 Software environment Wentai type3 artcam
21 Running environment Temperature:0-45°C
22 Paking size 3300*1900*1450mm
23 Net weight 1300 kg
24 Gross weight 1500 kg
