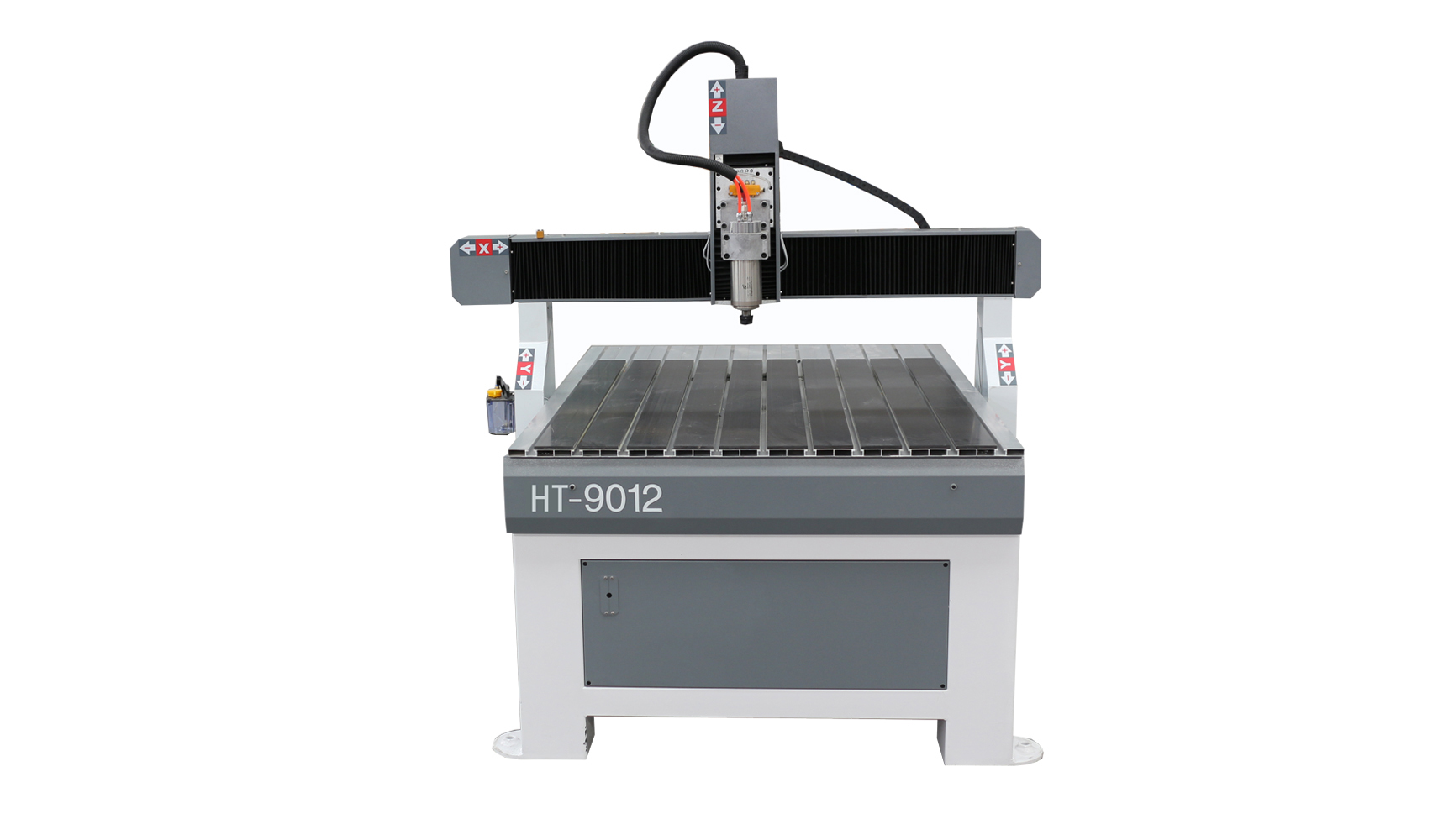

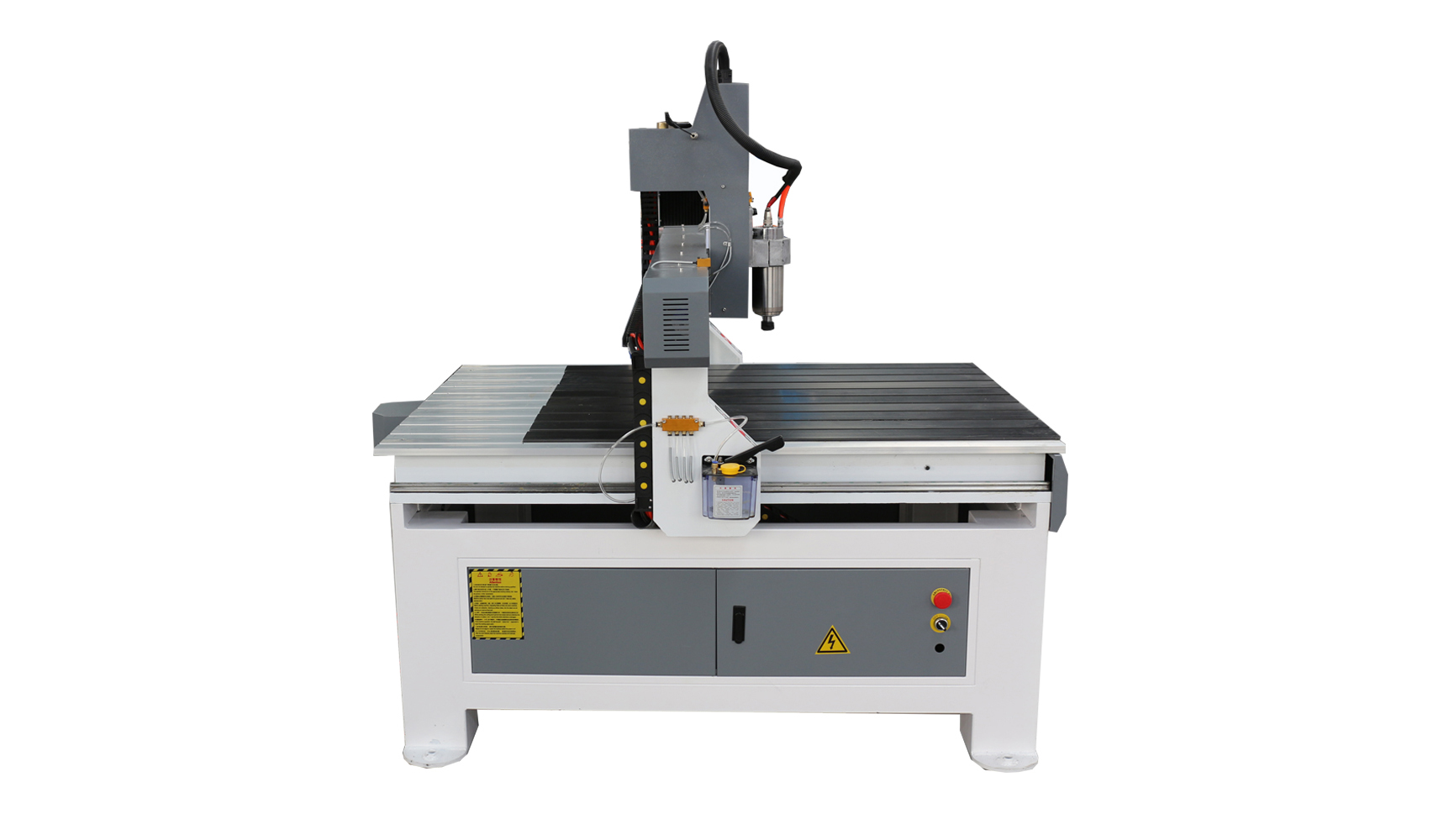

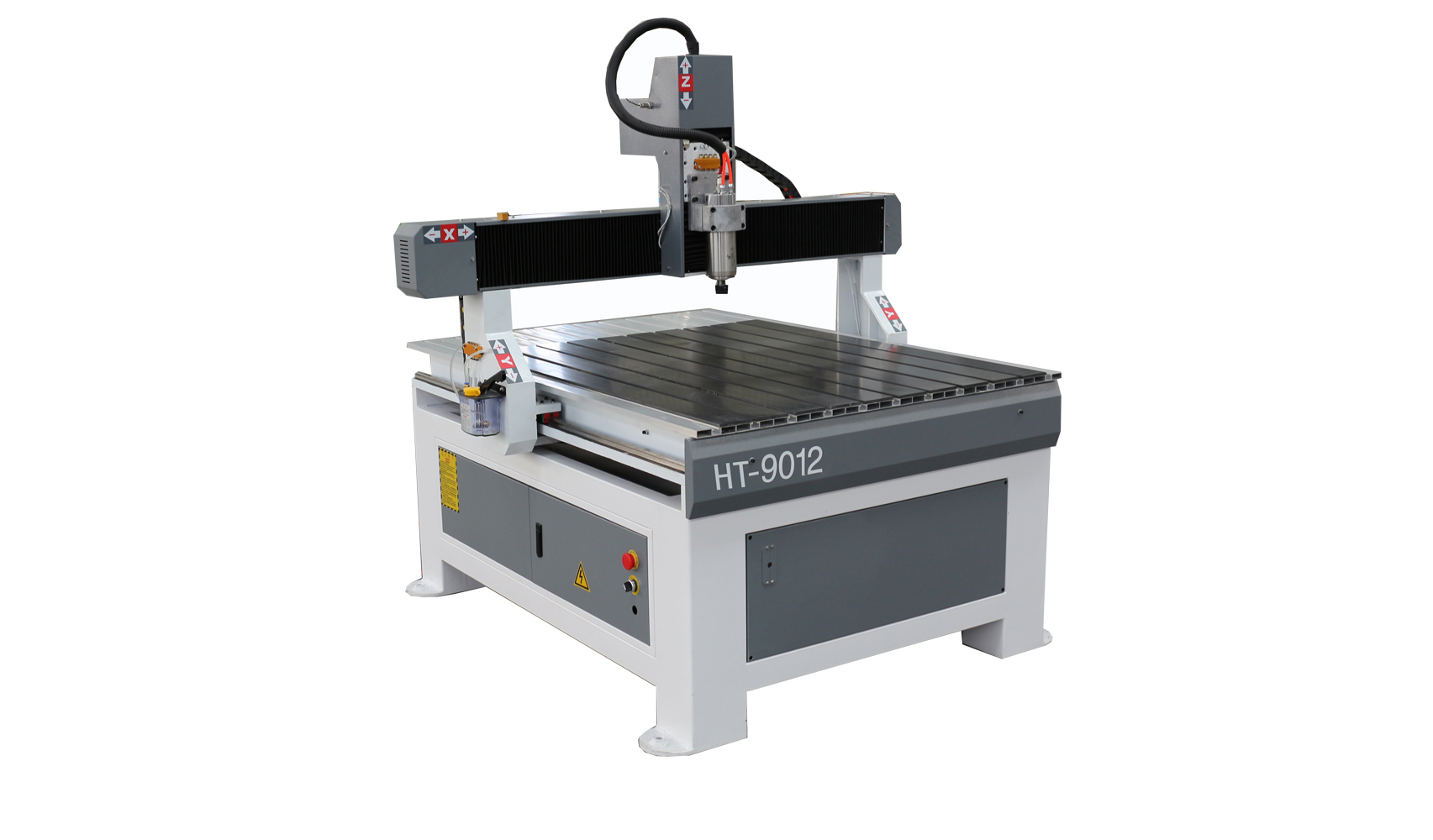

small CNC router for wood
Characteristic
1. High precision Taiwanese ball screw minimizes gaps to the greatest extent possible.
2. 1.5kw JST water-cooled spindle, with good quality and wide range of applications,
3. Imported linear guide rail, self-lubricating guide rail.
4. Our router has a restart function after shutdown, which can be restored after power failure.
5. This type is suitable for advertising, woodcut, cutting, etc.
2. 1.5kw JST water-cooled spindle, with good quality and wide range of applications,
3. Imported linear guide rail, self-lubricating guide rail.
4. Our router has a restart function after shutdown, which can be restored after power failure.
5. This type is suitable for advertising, woodcut, cutting, etc.
Performance Parameter
| Description | Parameter |
|
XYZ working area
|
900*1200*200mm |
| Table size | 1100*1500mm |
| XYZ travel positioning accuracy | ±0.01mm |
| XYZ repositioning positioning accury | ±0.02mm |
| Lathe structure | Casting iron |
| drive system X-Y-Z axis | Ball screw |
| Table surface | Aluminum molding+PVC table |
|
Spindle power
|
1.5KW |
| Max working speed | 6m/min |
| Spindle speed | 0-24000rmp |
| Work motor | Stepper motor |
| Working voltage | AC220V/380V(other) |
| Operating system | Ncstudio/DSP/Mach3 |
| Running environment | Temperature:0-45℃ |
| Net weight | 300kg |
|
Packing size
|
1850*1550*1650mm
|

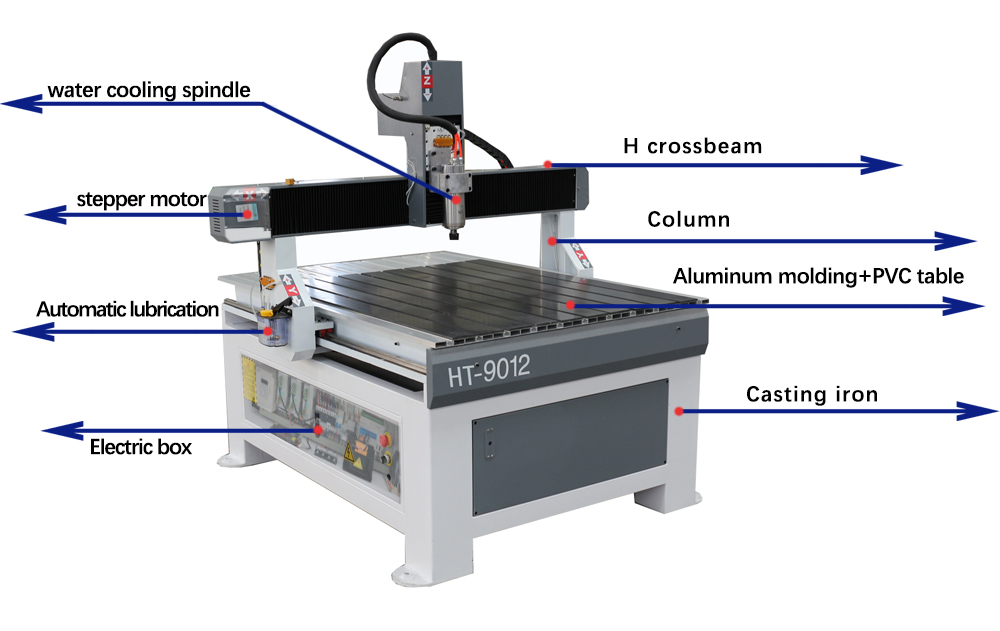

Main parts
 |
 |

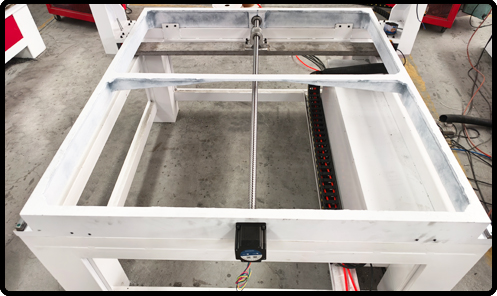

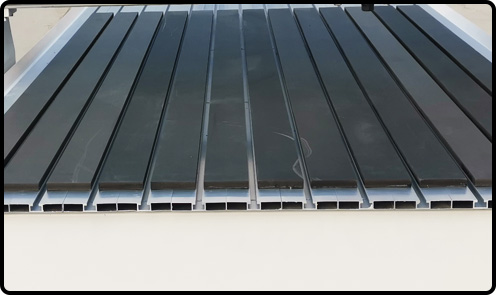

| The bed lathe is made of cast iron and does not deform for a long time | Aluminum table can clamp materials, simple and flexible |
 |
 |

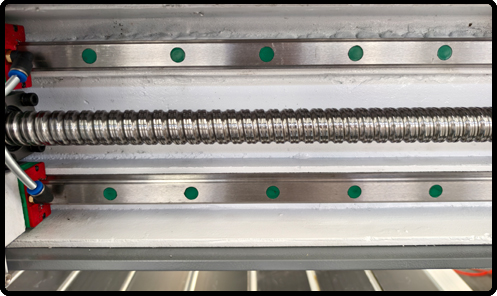

| 1.5kw Water cooling spindle | TBI ball screw |
 |
 |
| DSP system or Mach3 or Ncstudio | Stepper motor Can be replaced servo motor |
 |
 |

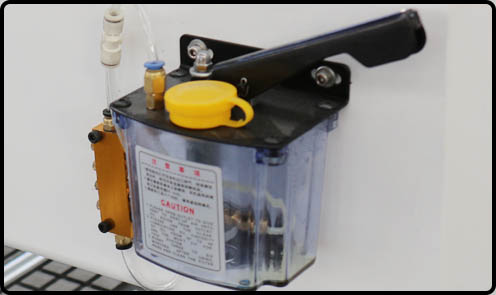

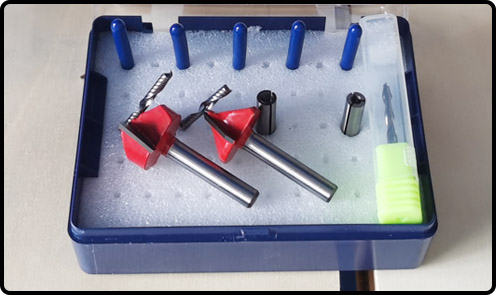

| Simple to operate manual oil lubricator | Specialized carving tools for advertising engraving router machines |
Optional Accessories ：
Dust collector：The main function of the dust collector for CNC wood router machine is to purify the air, extend the machine’s lifespan, and improve work efficiency
Rotary axis：The rotary axis is mainly used for 3D carving, such as Roman columns, art statues, decorations, etc
Servo Motor：If you have high precision requirements, you can choose servo motor. Servo motor have higher precision and performance
Working samples
1. Common carving materials
Double color board, organic board (acrylic), artificial stone, PVC board, wood, density board, ABS.
2. Not commonly used carving materials
Metal materials (steel, alloys, copper, aluminum, etc., mainly used in the mold manufacturing industry), rubber, cowhide, stone, fireproof board, cardboard, aluminum-plastic panel, copper-clad laminate, resin board and other composite materials, horn seals, copper seals, steel stamps, rubber seals, etc
Double color board, organic board (acrylic), artificial stone, PVC board, wood, density board, ABS.
2. Not commonly used carving materials
Metal materials (steel, alloys, copper, aluminum, etc., mainly used in the mold manufacturing industry), rubber, cowhide, stone, fireproof board, cardboard, aluminum-plastic panel, copper-clad laminate, resin board and other composite materials, horn seals, copper seals, steel stamps, rubber seals, etc
Producing Process
