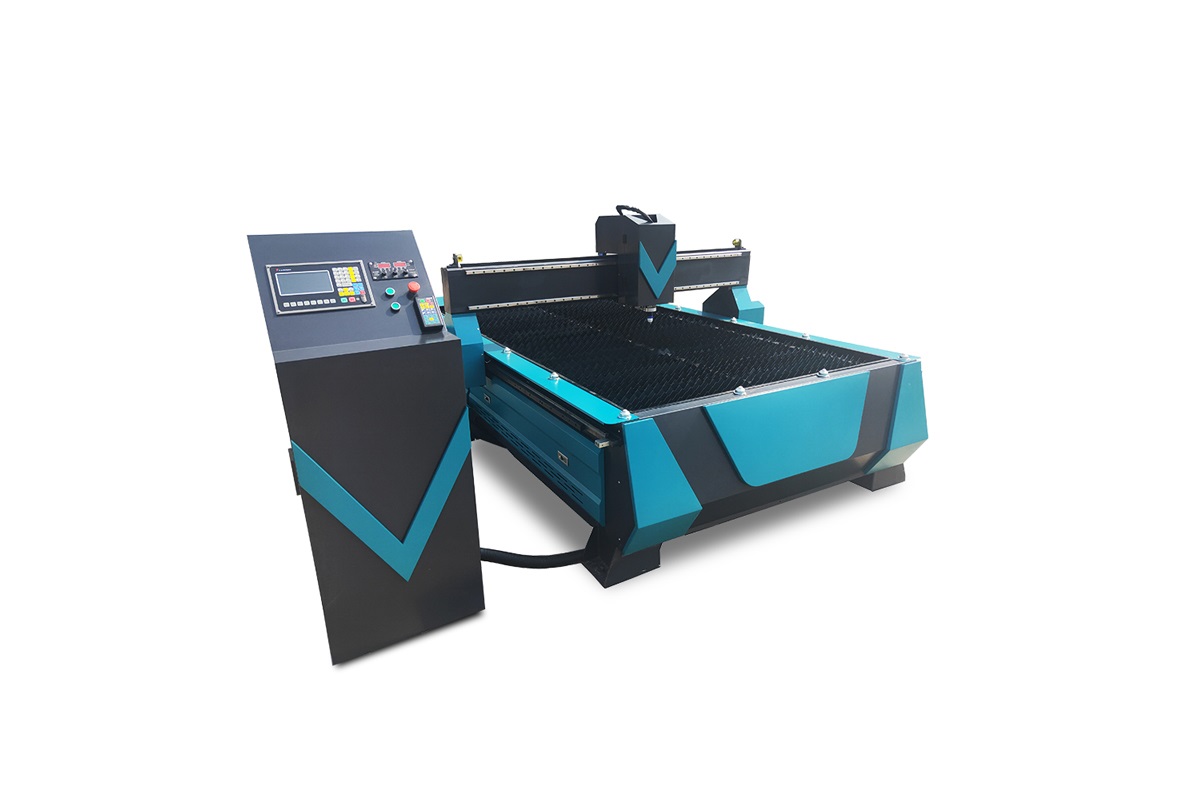

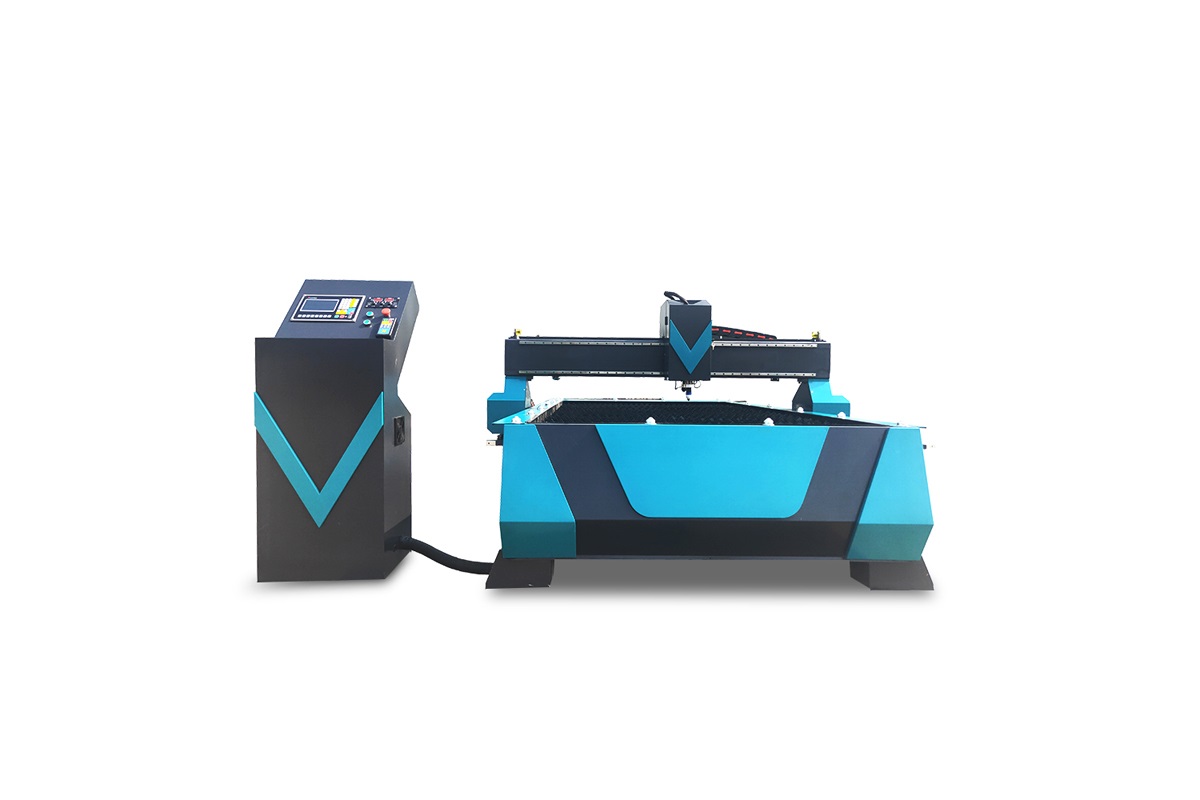

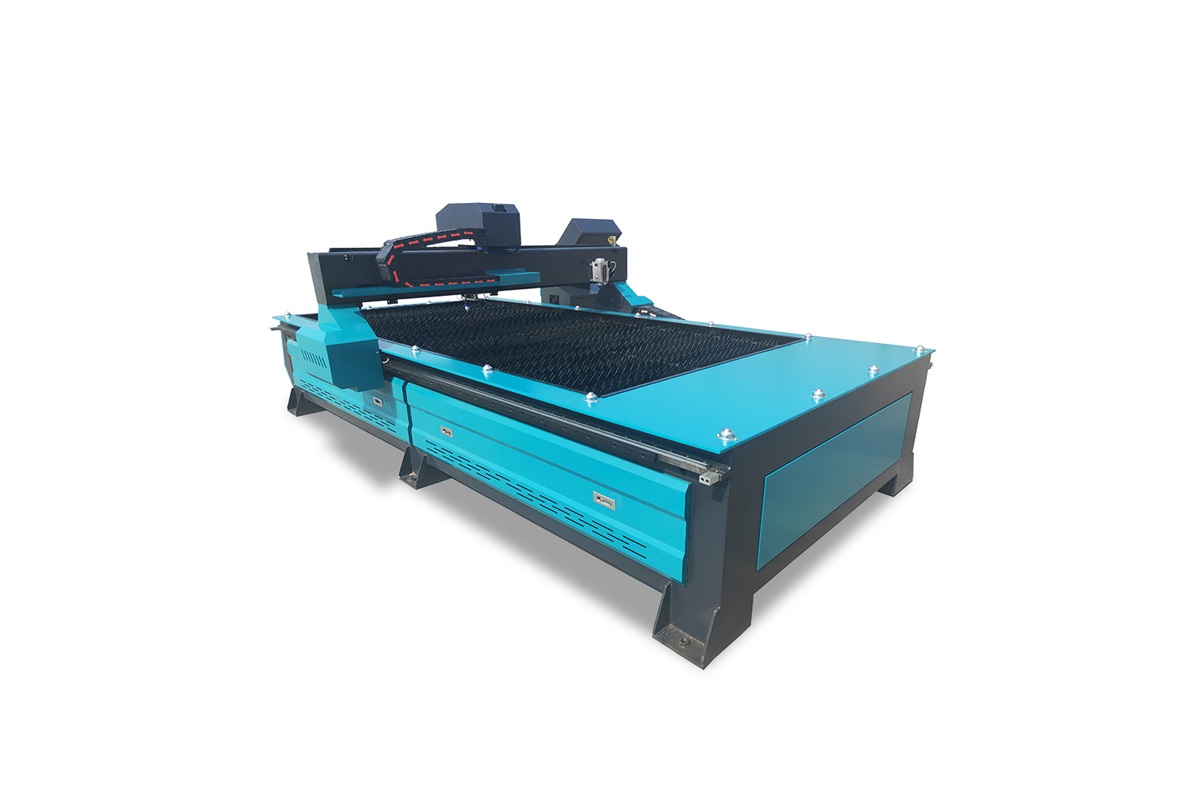

Plasma cutting machine HT-1530

Performance parameter

Name	Specification
Working Area（X*Y）	1500*3000mm
Machine Structure	Welded
X Y Guide Rail	Hiwin Square Rail
X Y Transmission	Imported Rack gears
X\Y\Z Axis Driver	Stepper Motor（Optional servo motor）
Control System	Starfire control system
Working Dictate	G Code
Cutting thickness	0.5-30mm
Plasma Generator	60/100/120/160/200A Power Generator
Cutting Speed	0-8000mm/min
Document Transmission Form	USB Interface
Working Form	Untouched Arc Striking
Working Voltage	220/ 380V
G.W.	1500KGS
Packing Size	3800022001900mm

Characteristic

1.Imported guide rail, double four ball slider, heavy loading capability, smooth operation, high precision, long life.

2.High-speed stepper motor and driver, Yaxis using a dualmotor drive,to make highspeed operation up to 20 meters above the blank line speed, with the high power spindle can greatly enhance the carving speed more .

3.whole steel structure, high temperature tempering after welding to eliminate the stress treatment, distortion free, strong and lone life.

4.The plasma with high cutting speed, high precision, small slit, neat. Under traditional CNC system ,improved control method of cutting,avoid the secondary processing.

5.During the plasma is cutting,if the torch of plasma break at any point ,take the torch out of the machine, adjust the torch, then the torch will automatically return to break points .

6.Plasma can be automatically increased functionality, automatic ignition function, during working time, can be arbitrary adjust the speed up and down, but with stable performance.

7.Using advanced domestic CNC control system, compatible with type3/Artcam/Castmate / Wentai and a variety of CAD / CAM DesignSoftware.

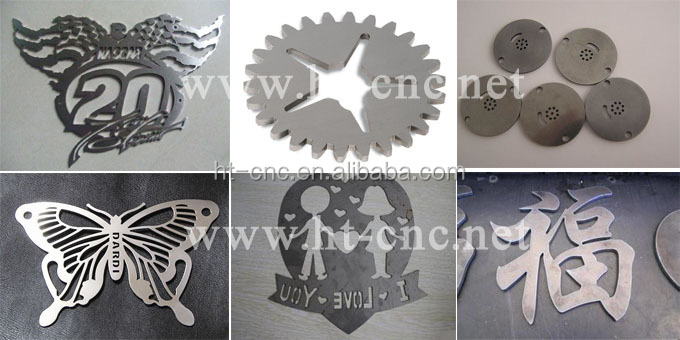

Working sample ：

Producing processing：

Company Profile：

Jinan Hopetool CNC Equipment Co.Ltd. is located in Jinan, Shandong Province, China. The company integrates production and trade, and has ten years of production experience. Its main products include CNC routes, laser machines, fiber laser cutting machines, etc. Our products have complete CE, ISO, SGS, high tech company certificate and other certificates, and we have export certificates, which can be sold all over the world.

Certificate：

Customer Photos：

FAQ:

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
