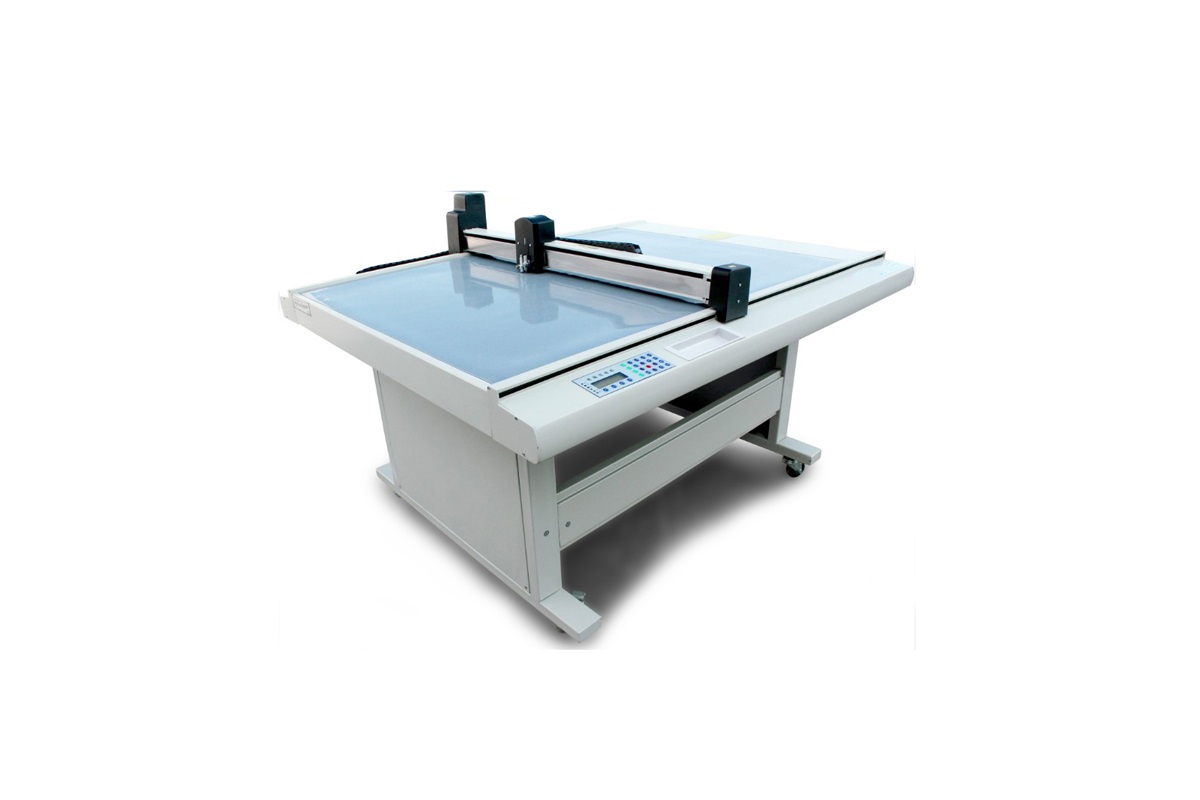

Paper box cutting machine DCH10



Detail



DCH10 series card paper box cutting machine is mainly for the card paper and thin plastic box cutting application. It good used in the thin and homogenous material. It’s very capable for the low cost sample making, although the cutting material is homogenous, it has the bright point for the specify material. This machine can cut and crease the materials of card paper, plastic film board etc, by the tool pen, creasing tool and special knife it comes with. Moreover, this machine can be used to as die cutting drawing.
The main features:
·Equips with the pen, creasing tool, special knife
·Steel belt driven system, accuracy assured.
·Beautiful appearance by mould cover
·Easy to move with the universal wheel.



Specification



Model DCH100906 DCH101209 DCH101512
Effective cutting area 900*600mm 1200*900mm 1500*1200mm
Driver Step motor
Configuration Pen, special knife, creasing tool
Way of fixing paper way Vacuum absorbing
Driving material Import steel belt
Cut materials Red hard paper、plastic board、white board、kraft paper、thin PVC
Cutting way Drawing by pen、half cutting、whole cutting
Cutting thickness 0.5-2mm
Cutting precision ≤0.1mm
Max speed 1000mm/s
Working time and character Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.
Transmitting port International standards: parallel port/RSC232 serial port
Capacity of buffer area Buffer area of large capacity, it can finish high-speed transmission for data at a time
Instruction set International standards: HP-GL or DXF format can be selected, F
Numerical control board LTD, all-English operating menu
Main structure Cutting platform、head、driving system、control cabinet、control micro computer、frame、vacuum pump
Voltage AC 220V±10% 50/60Hz
Fuse standard 5A
Occupy dimension(L*W*H) 1335*1065*1080mm 1635*1365*1080mm 1935*1665*1080mm
Note Other size can be customized.
