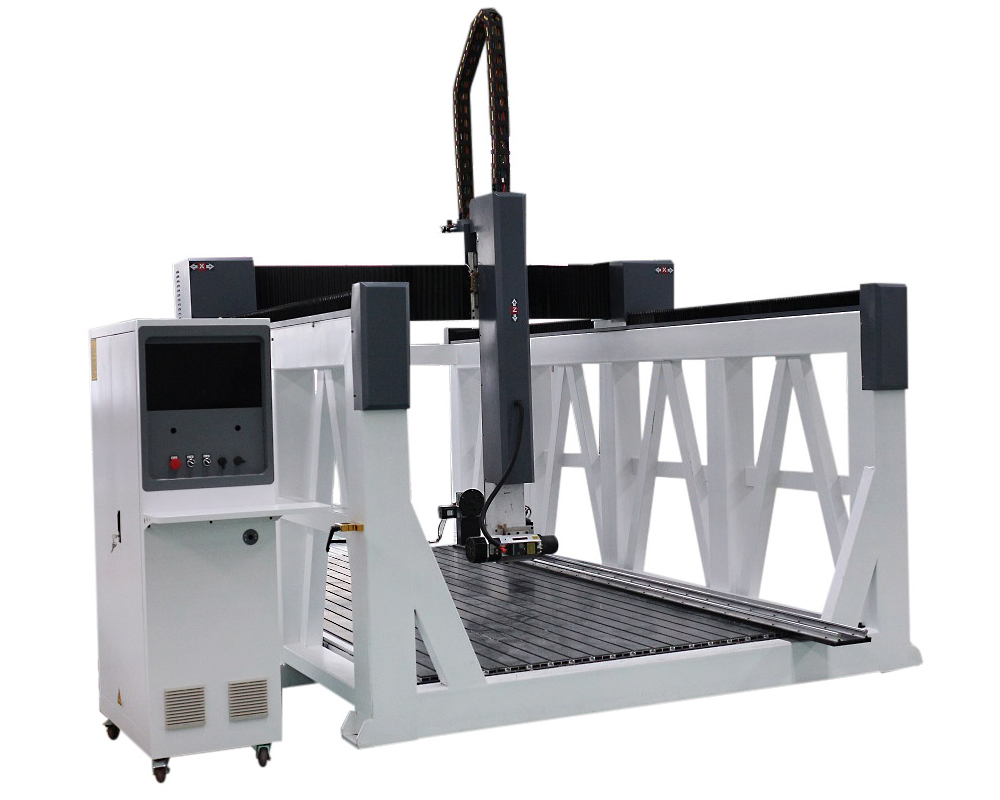

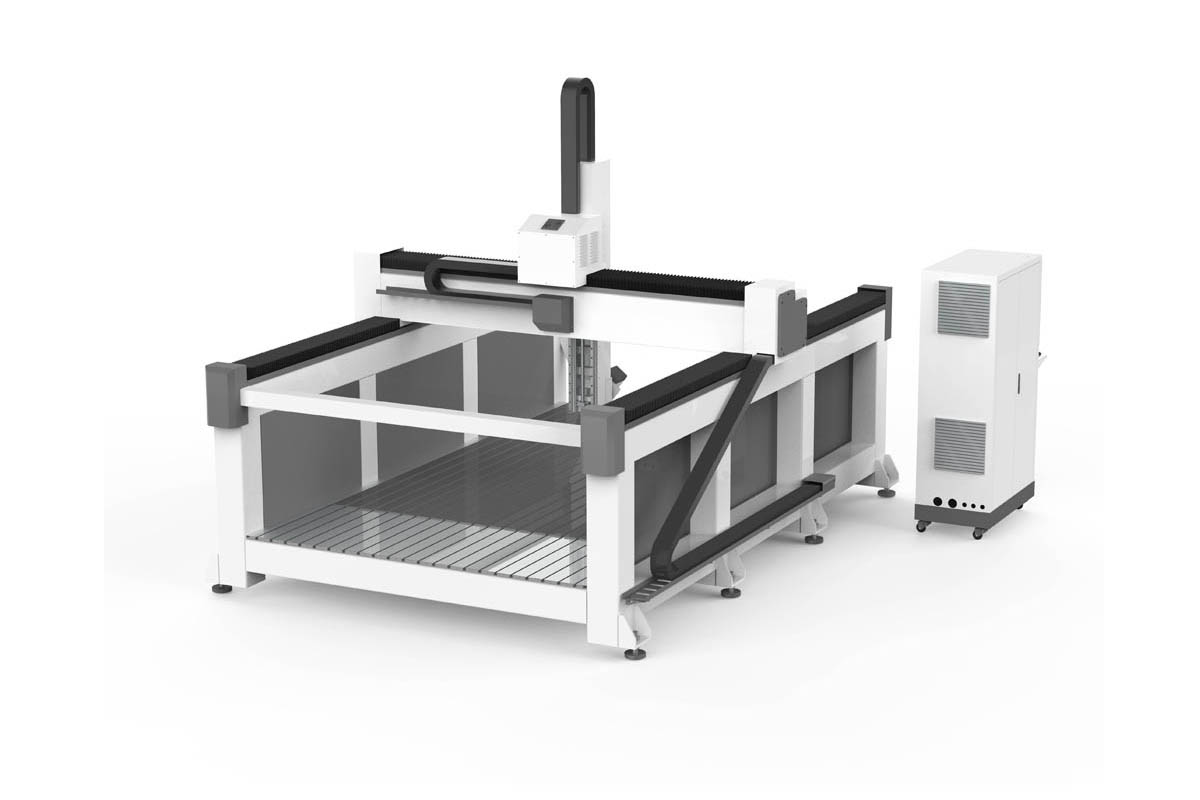

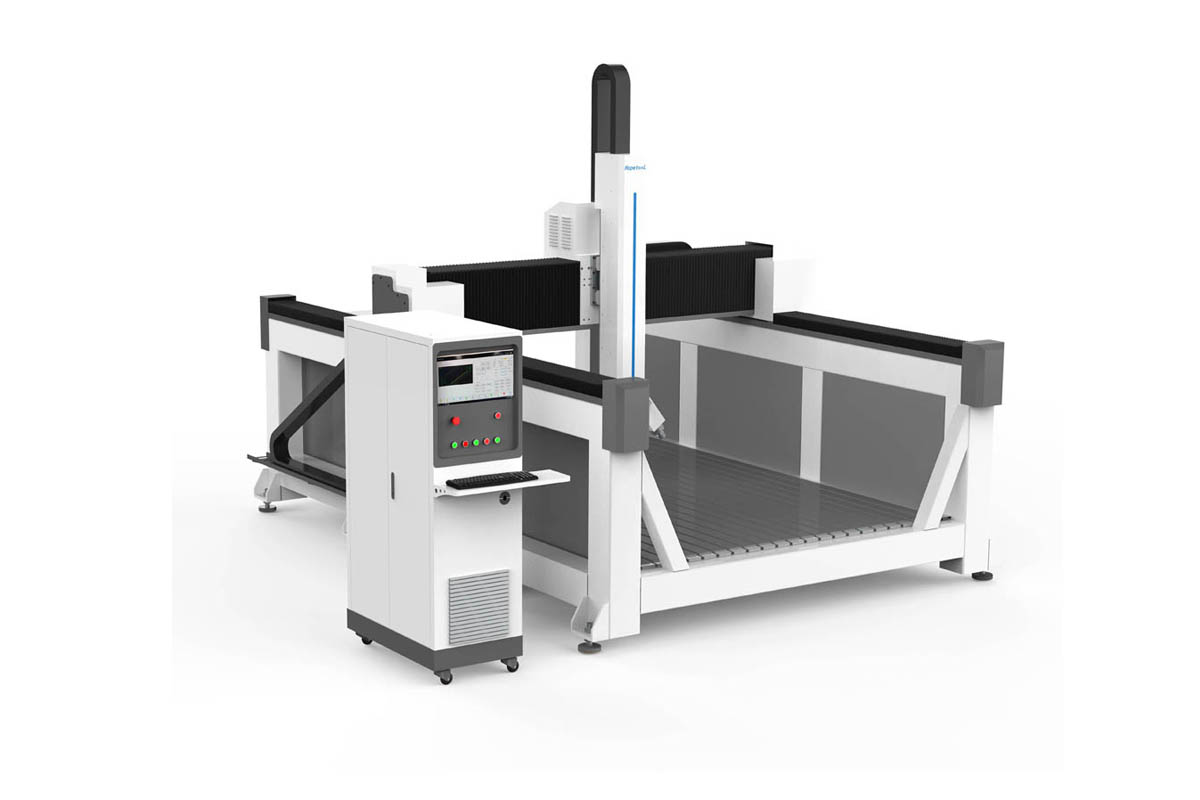

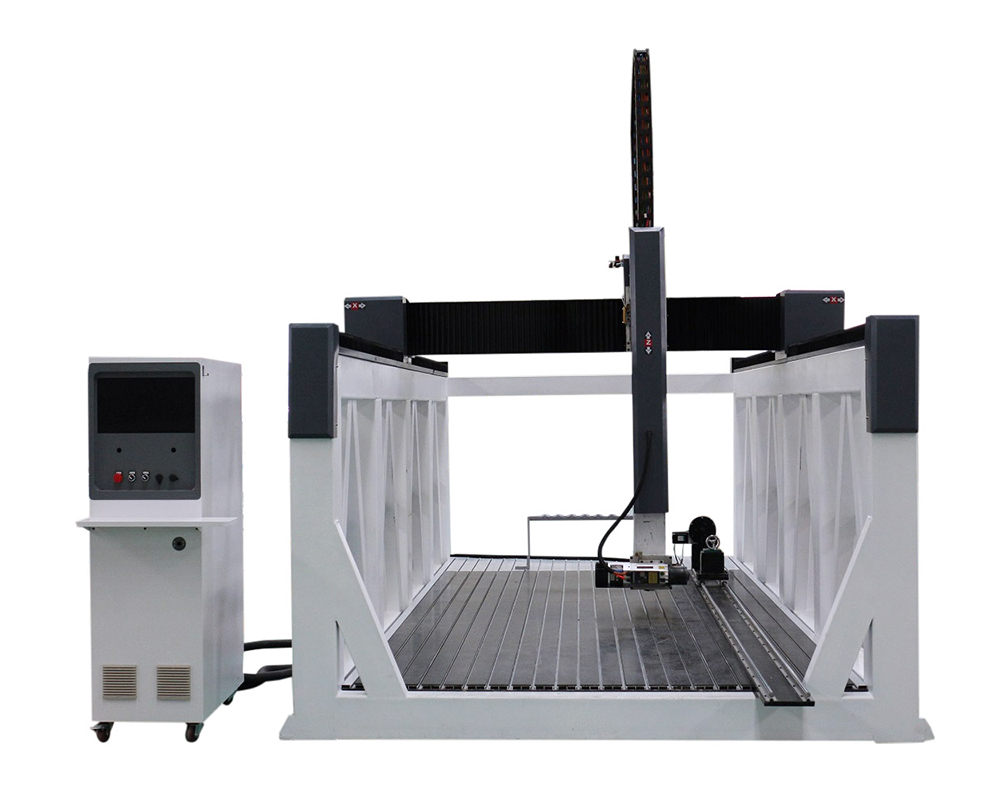

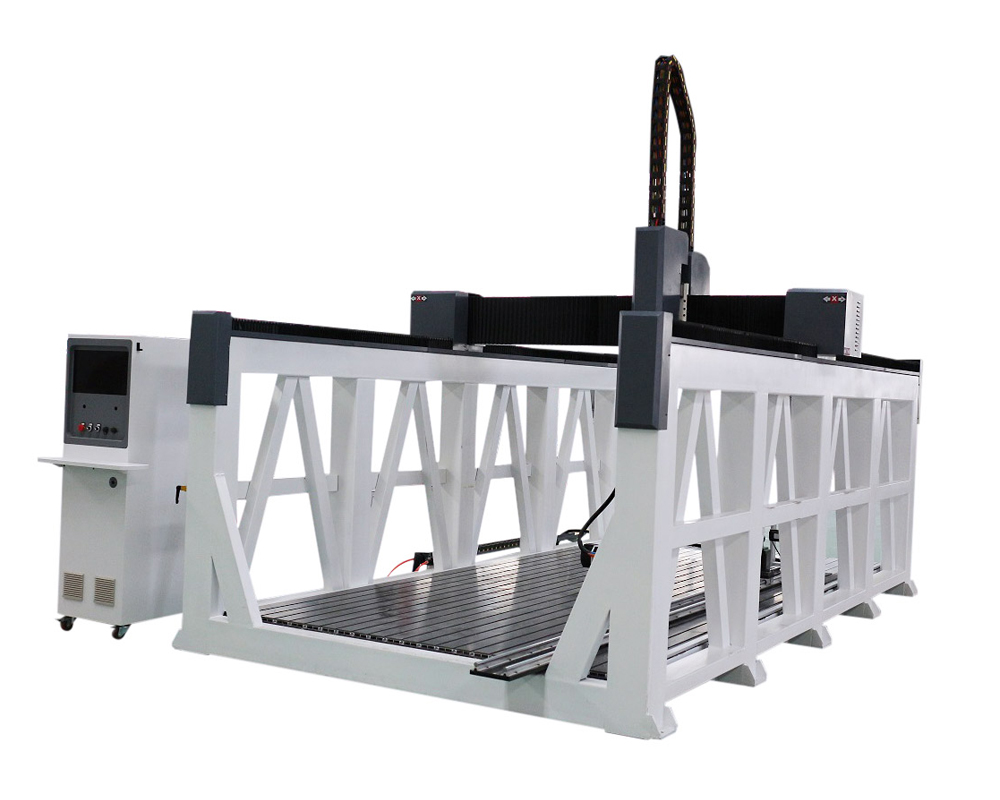

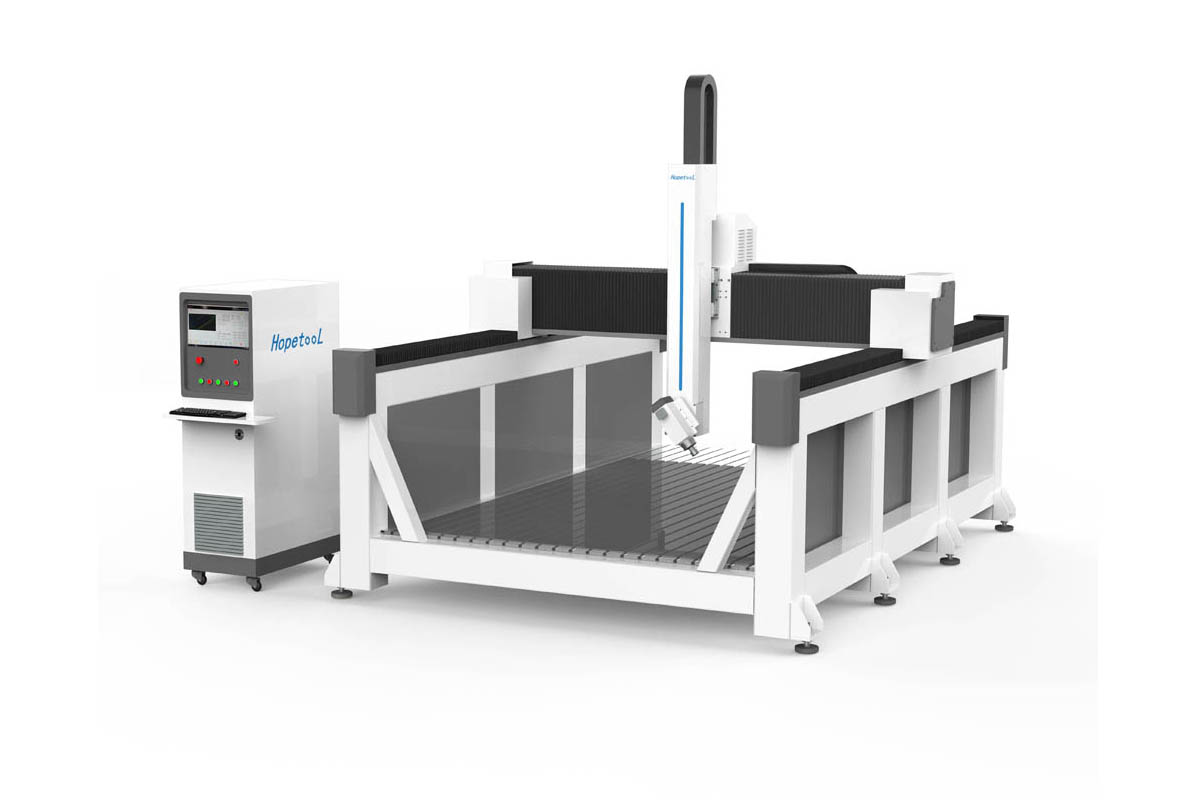

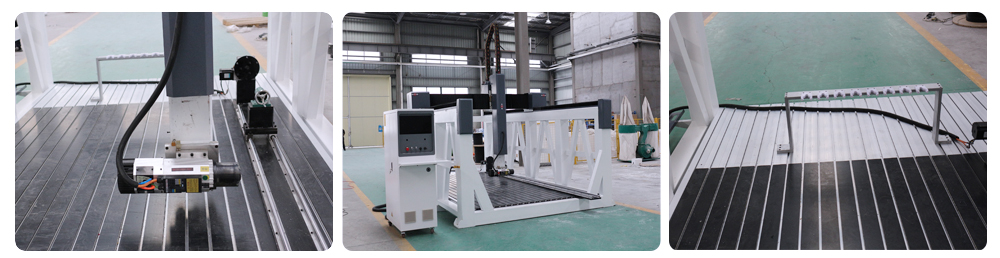

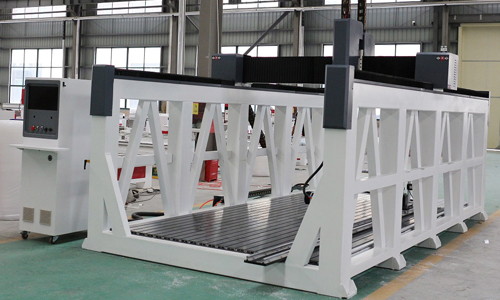

Large foam mold engraving machine
Characteristic
With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.
With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for
furniture, indoor decoration.
|
NO.
|
Description
|
Parameter
|
|
1
|
X,Y,Z Working Area
|
2000x4000x(300-700mm)*±180°
|
|
2
|
Table Size
|
2000×4500mm
|
|
3
|
X,Y,Z Traveling Positioning Accuracy
|
±0.01/300mm
|
|
4
|
X,Y,Z Repositioning Accuracy:
|
±0.01mm
|
|
5
|
Table Surface
|
Vacuum and T-slot Combined (Option: T-slot Table)
|
|
6
|
Frame
|
Big Steel Tube Structure
|
|
7
|
X, Y Structure
|
Helical rack gear , HIWIN Linear guide
|
|
8
|
Z Structure
|
Imported Ball Screw , HIWIN Linear guide
|
|
9
|
Max. Power Consumption
|
(Without Spindle) 4.2Kw
|
|
10
|
Max. Rapid Travel Rate
|
40000mm/min
|
|
11
|
Max. Working Speed
|
30000mm/min
|
|
12
|
Spindle Power
|
HSD spindle 4.5 or 9kw( Italy ATC spindle for option)
|
|
13
|
Spindle Speed
|
0-18000RPM
|
|
14
|
Drive Motors
|
Japan 850 W YASKAWA servo motor
|
|
15
|
Working Voltage
|
AC380V/50/60Hz,3PH (Option: 220V))
|
|
16
|
Command Language
|
G Code
|
|
17
|
Operating System
|
SYNTEC Control System (model: EZ4M)
|
|
18
|
Computer Interface
|
USB
|
|
19
|
Flash Memory
|
512M
|
|
20
|
Collet
|
ER25
|
|
21
|
X,Y Resolution
|
<0.01mm
|
|
22
|
Software Compatibility
|
UG , Power mill
|
|
23
|
Running Environment Temperature
|
0 – 45 Centigrade
|
|
24
|
Relative Humidity
|
30% – 75%
|
|
25
|
Packing Size
|
4.1*2.3*2.6m
|
|
26
|
N.W.
|
2500KG
|
|
27
|
G.W.
|
2800KG
|
|
28
|
Optional Parts
|
Dust Collector/ Dust Hoods for three Axis
|
|
Vacuum Pump
|
||
|

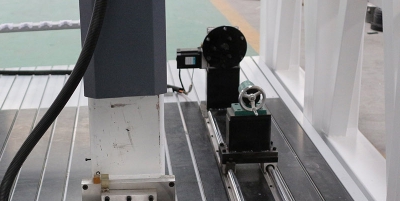

Rotary System
|
||
|
Mist-cooling System
|
||
|
SIEMENS/DELTA/ Panasonic Servo Motors
|
||
|
Colombo Spindle
|
||
|
X:2.5m, Y:4m, Z:1.2m
|

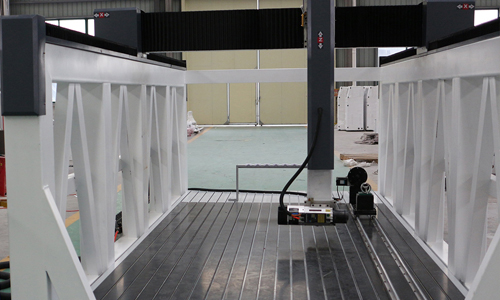

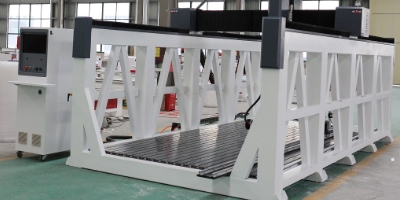

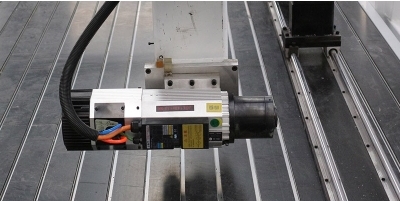

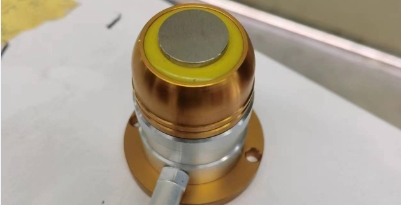

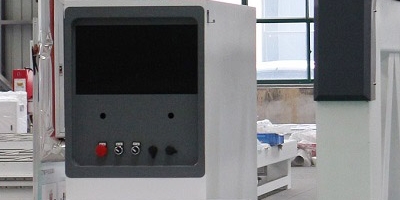

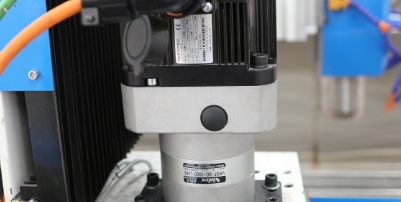

Main Parts：

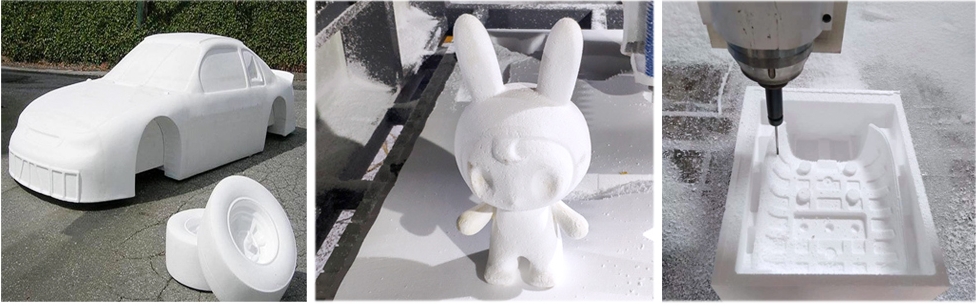

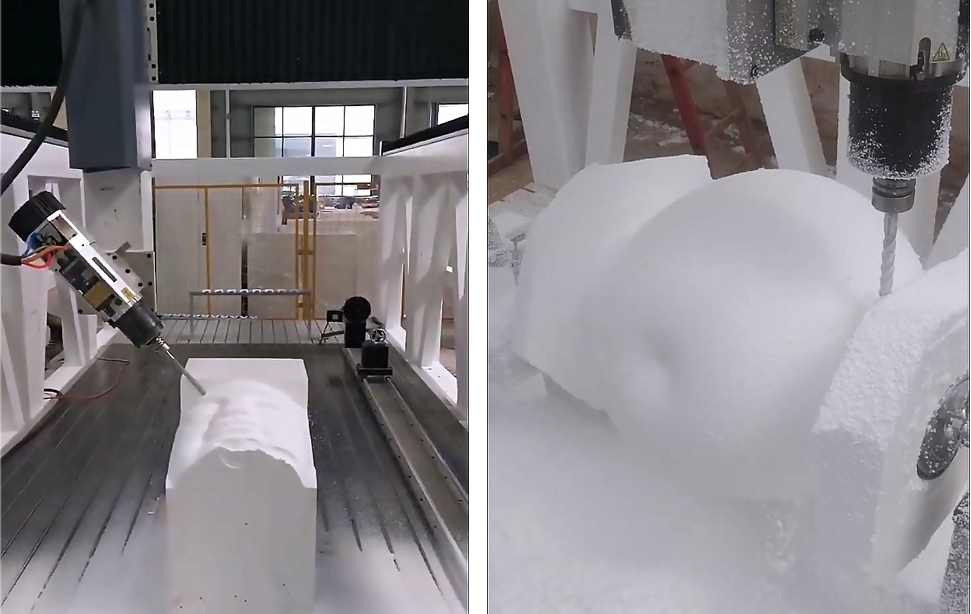

Working Samples：
FAQ:
Q1.How to get the most suitable machine and best price?
Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
