HT-1325E linear Auto tool change machine
Characteristic:

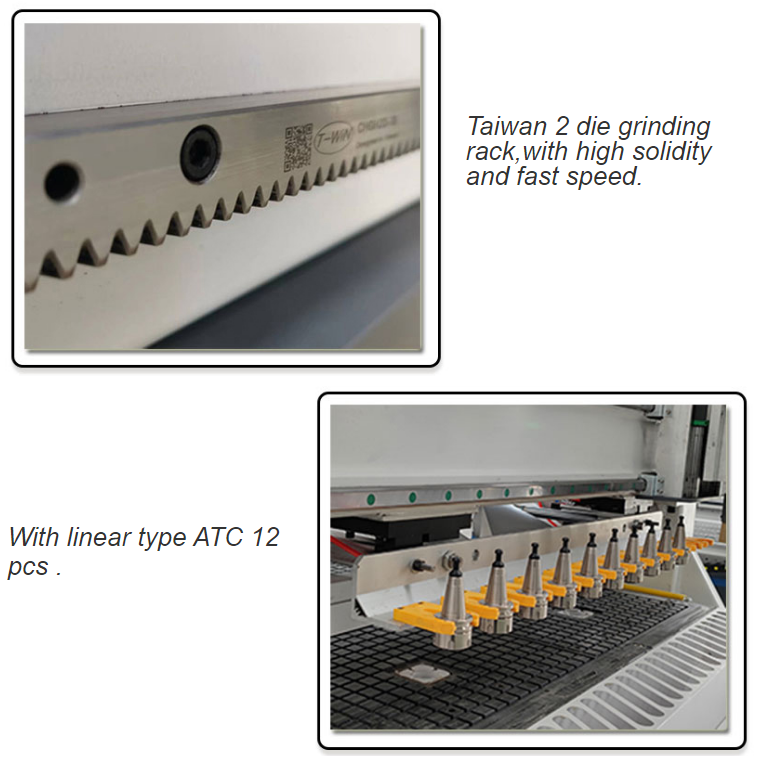

1)HT-1325E is linear Auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump
with high efficiency.
2)Adopt Japan yaskawa servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .
3)Italy air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high
precision and long lifetime.

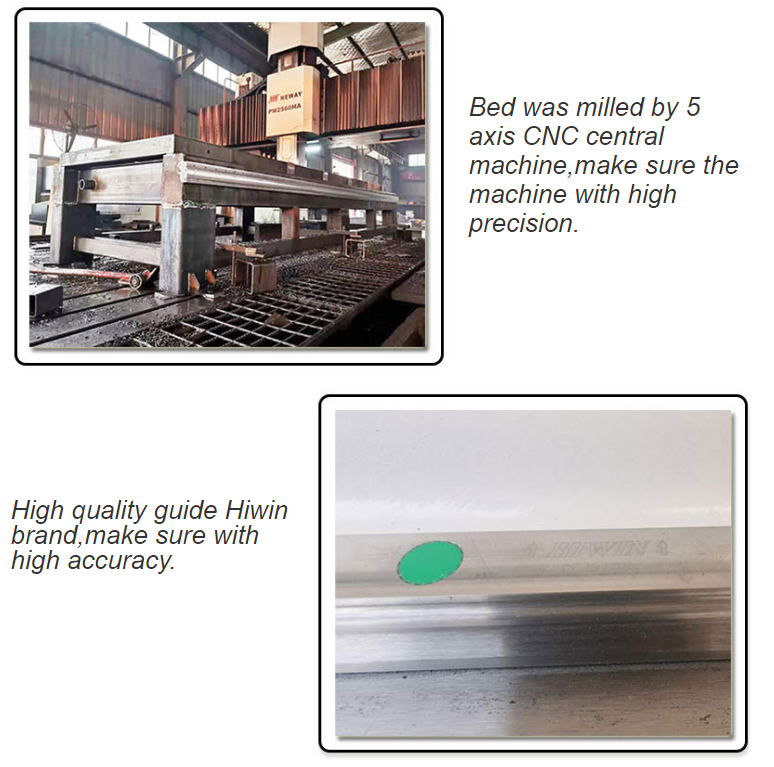

4)Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel
structure
5)All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high
precision.
6)Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions
infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D
space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced
file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and
international software. (such as Mastercam,Typ3,UG,Artcam,Caxa).
7)6 zones vaccum table, it is a professional wood door making and furniture making machine.
|
Description
|
parameter
|
|
XYZ working area
|
1300*2500*200mm
|
|
Table size
|
1440X3040mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
X,Y,Z Repositioning Positioning Accuracy
|
±0.01mm
|
|
Lathe Structure
|
Welded Strucutre
|
|
X, Y Structure
|
Gear Wheel Transmission, Shaft Linear Bearings
|
|
Z Structure
|
Ball Screw, Shaft Linear Bearings
|
|
Max.Consume Power
|
20KW
|
|
Max.Speed
|
0-60000mm/min
|
|
Max.Working Speed
|
0-25000mm/min
|
|
Spindle Power Motor
|
9KW ATC spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Working Mode
|
Servo system
|
|
Working Voltage
|
AC380V/50/60Hz , 3PH
|
|
Command
|
G Code, *uoo, *mmg, *plt
|
|
Operating System
|
SYNTEC or Weihong System
|
|
Interface
|
Internet line
|
|
Flash Memory
|
512M
|
|
Collet
|
ER32
|
|
X,Y Working Delicacy
|
<0.01mm
|
|
Software
|
Type3 software, Wentai software,Artcam software
|
|
Running circumstance
|
Temperature: 0°C~45°C,
Relative humidity: 30%~75% |
|
Packing Size
|
4000x2150x2200 mm
|
|
Net Weight
|
2000KG
|
|
Gross Weight
|
2300KG
|
FAQ:
Q1.How to get the most suitable machine and best price?
Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
