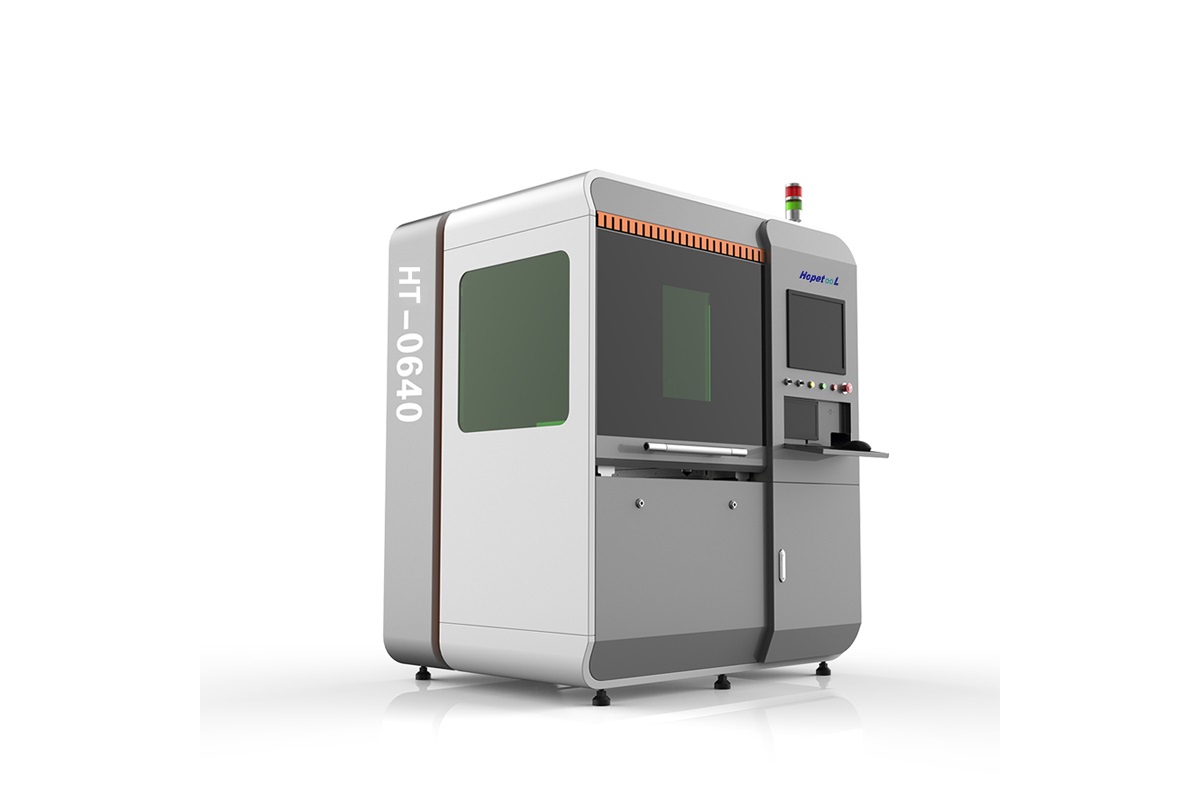

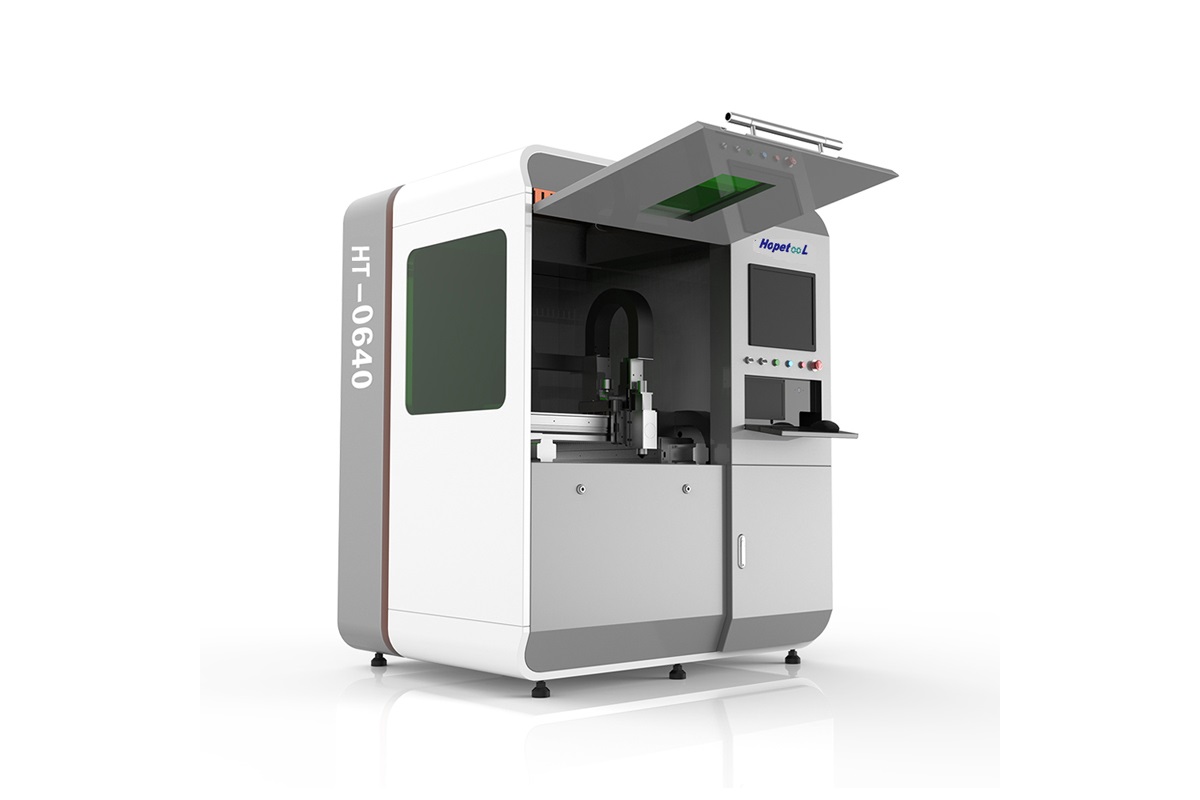

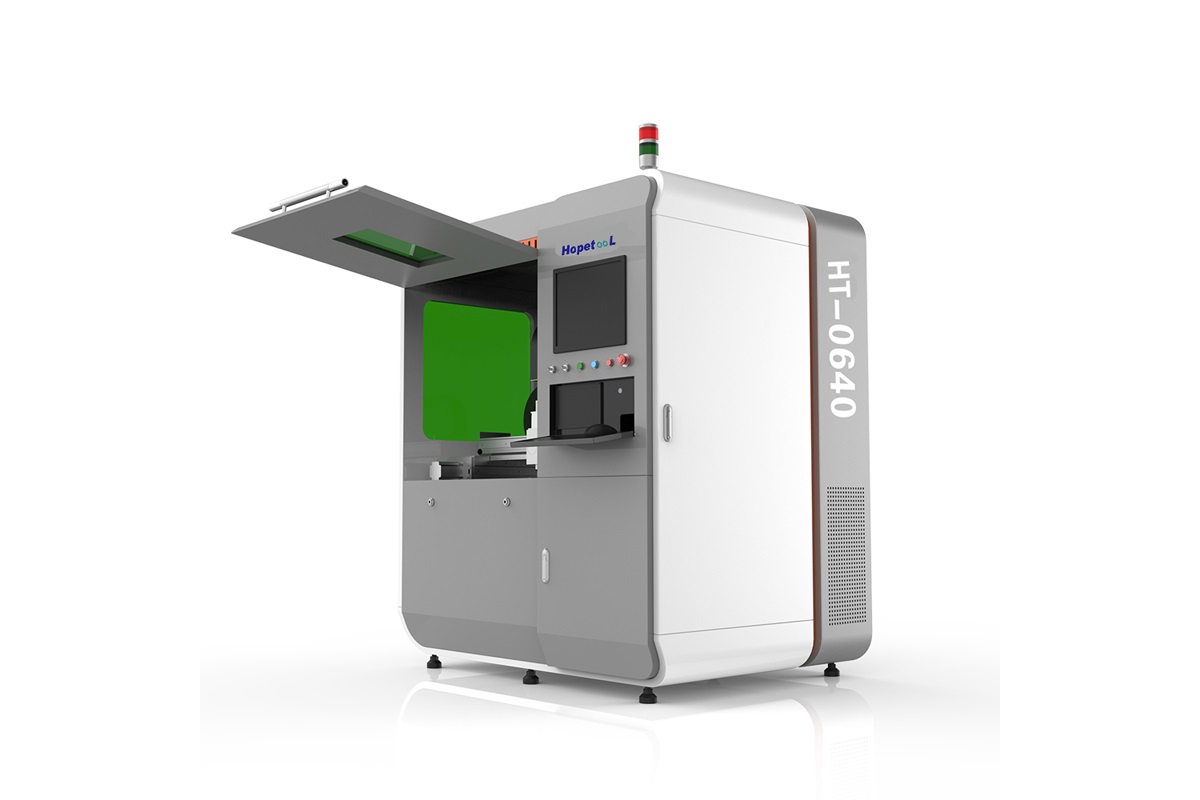

High precision Fiber laser cutting machine 6040


Characteristic

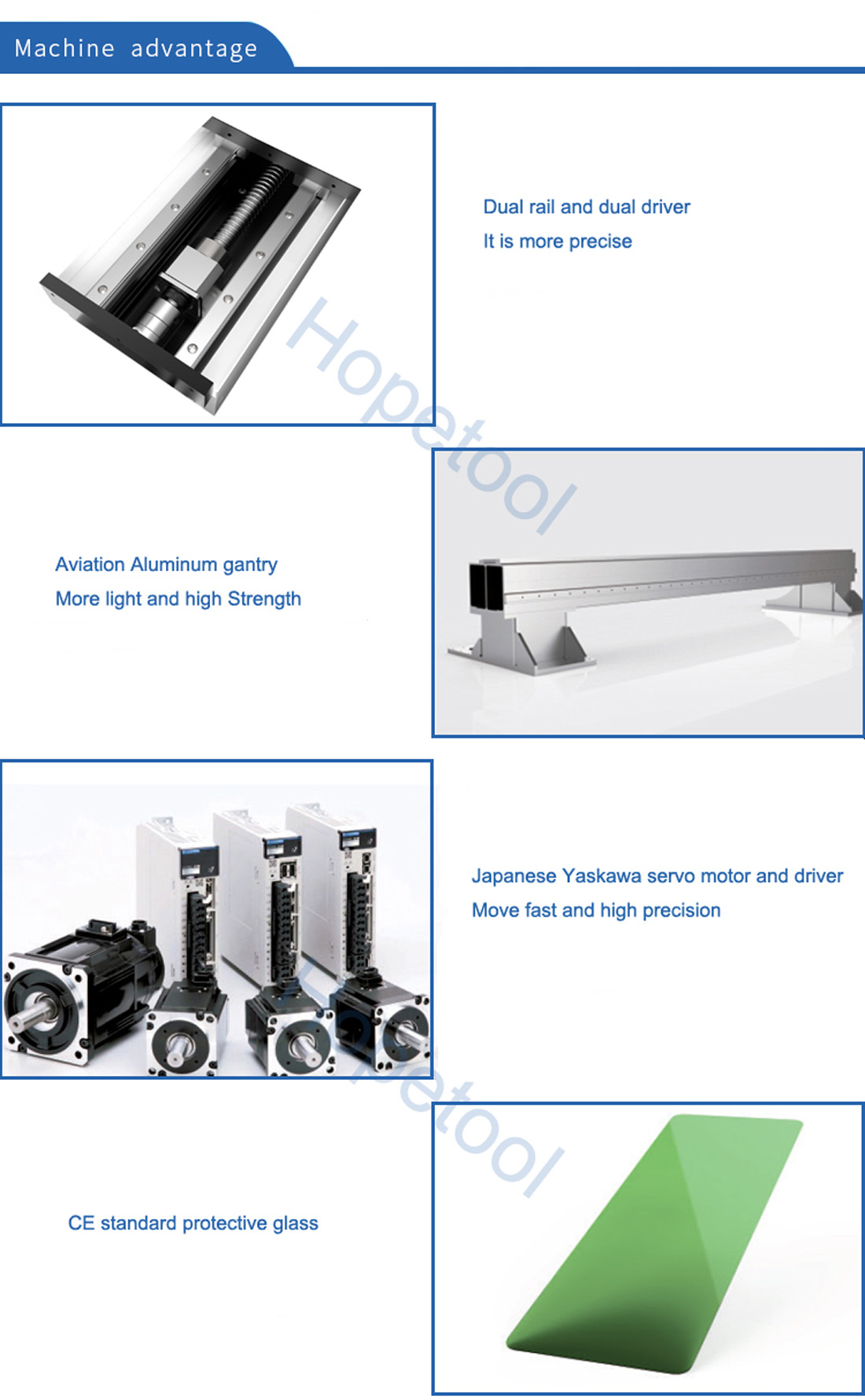

HT-6040 fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the positioning accuracy of the machine tool can be 0.008mm and the cutting acceleration is 0.5G. The working life is more than 10 years.

Application insutry

HT-6040 is specially designed for high precision cutting. It is widely used in machinery, microelectronics, glasses, electronics and other industries, which has high requirements on the cutting accuracy. Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal materials.

Performance Parameter

Machine Model HT-6040
Laser power 500W 750W 1000W(Optional)
Working area 600mmx400mm
Repeat positioning accuracy ±0.008mm
Maximum speed 40m/min
Maximum acceleration 0.5G
Transmission mode Grinding precision screw drive
Specified voltage and frequency 220V/50Hz/60Hz/60A

    Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
