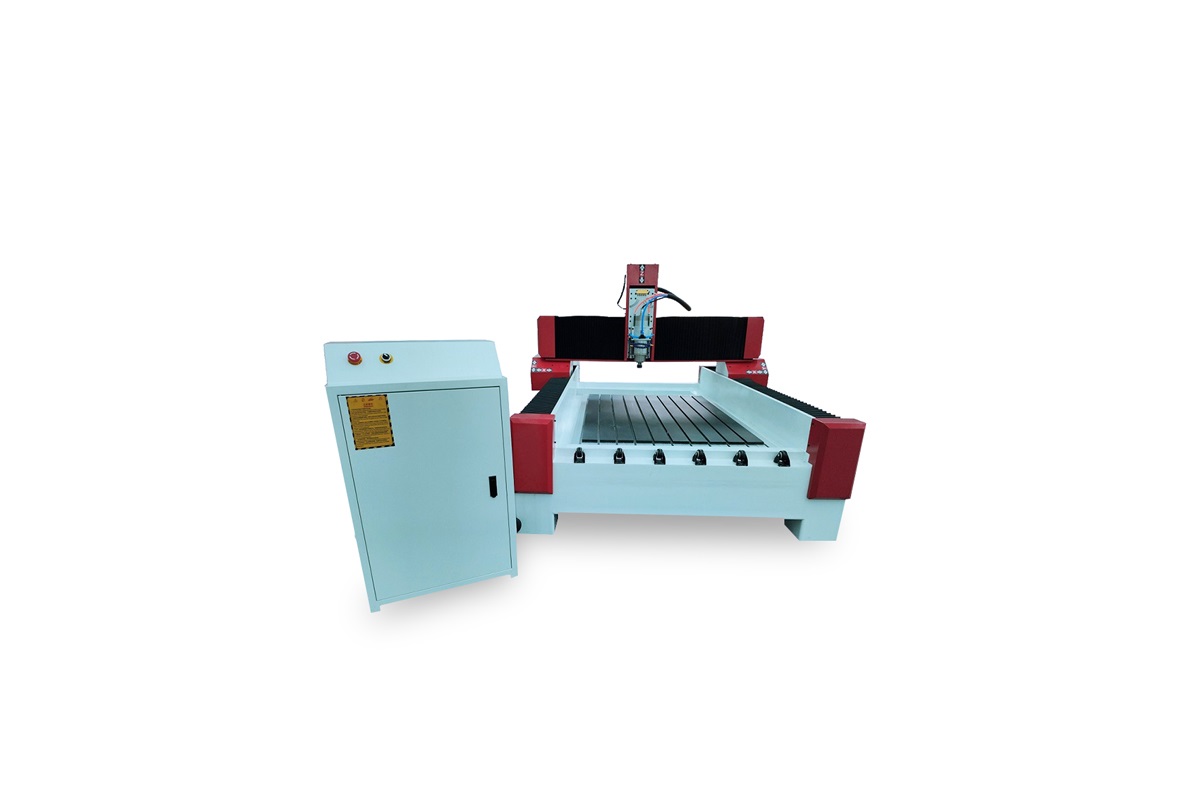

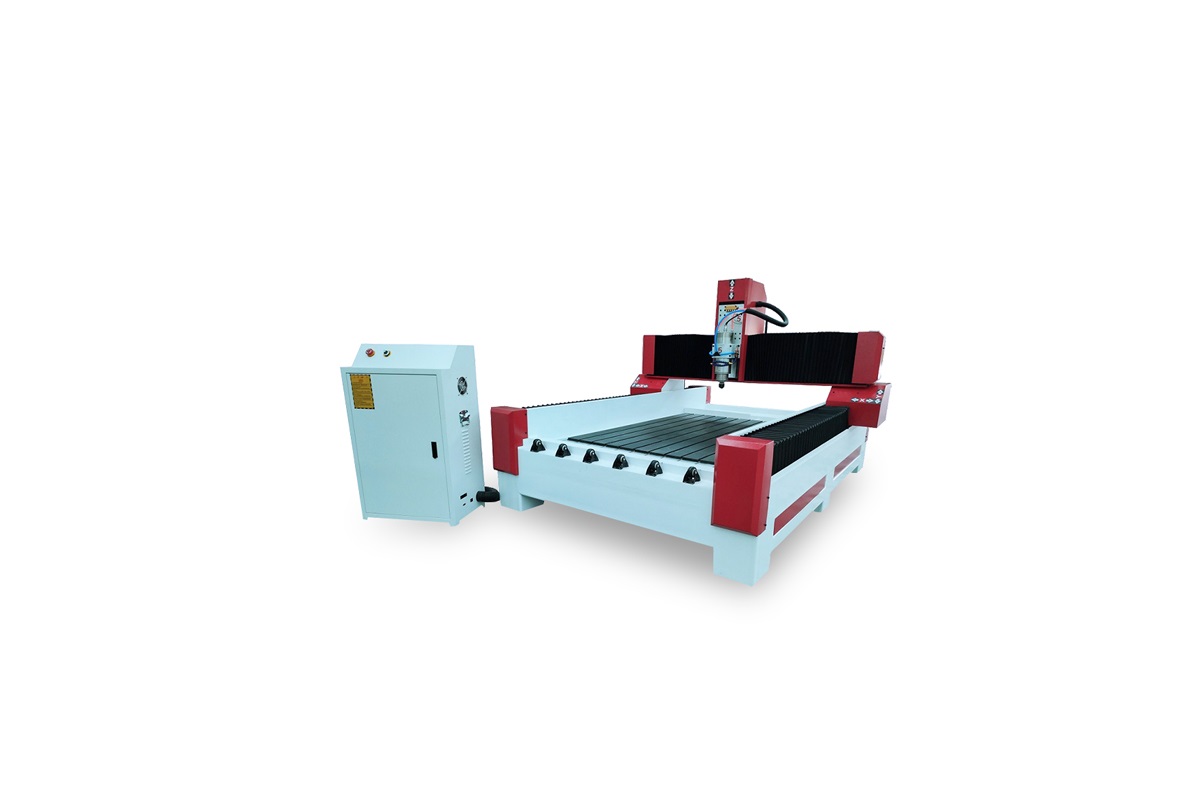

Heavy type stone CNC engraving machine 900*1500mm

Characteristic:

1.Leading Rack Drive, fast, high efficiency, air-speed can reach 35 m / min or more, against the wave plate is carved in manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 — 5 ordinary type machines.
2. Intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage. Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon.
3. Fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. Advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing, carving or cutting. Offline operation can be realized.
5.The overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table can be arbitrary processing work table material.
6. Suitable for a variety of materials processing large quantities of production.

7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.

 Performance paramet

Number Description Parameter
1 XYZ working area 900*1500*300mm
2 Table size 1010*2000mm
3 XYZ travel positioning accuracy ±0.025mm
4 XYZ repositioning positioning accury ±0.025mm
5 Table surface Aluminum T slot +PVC
6 grantry steel
7 drive system X-Y axis Rack
8 drive system Z axis Ball screw
9 Spindle power 3/5.5KW
10 Max velocity 50m/min
11 Max working speed 25m/min
12 Spindle speed 0-24000rmp
13 work mode step(optional servo)
14 Working voltage AC220/380V
15 Command language G code
16 Interface USB
17 Operating system DSP/Mach3/Ncstudio
18 Flash memory 128
19 X-Y resolution 0.025mm
20 Software environment Wentai type3 artcam
21 Running environment Temperature:0-45°C
22 Paking size 2300*1700*1900mm
23 Net weight 700 kg
24 Gross weight 900 kg

Machine Parts:

Working Samples:

FAQ:

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.

      Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
