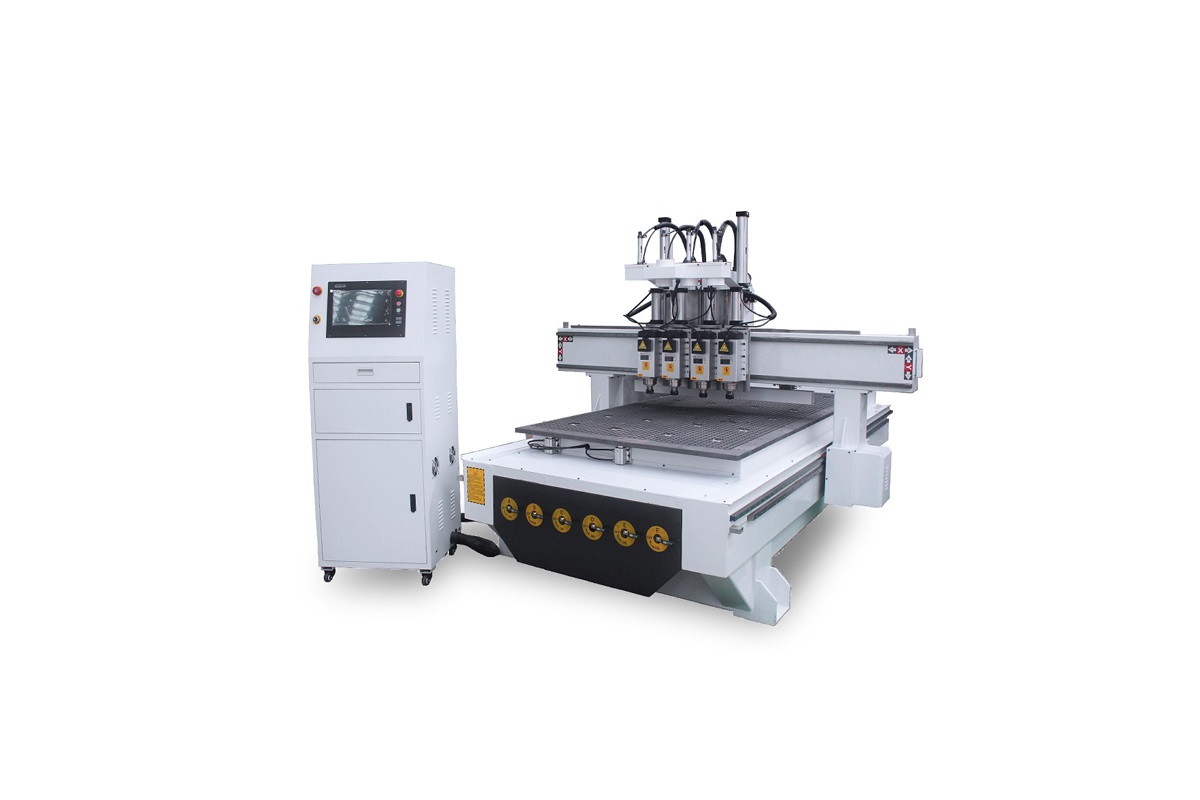

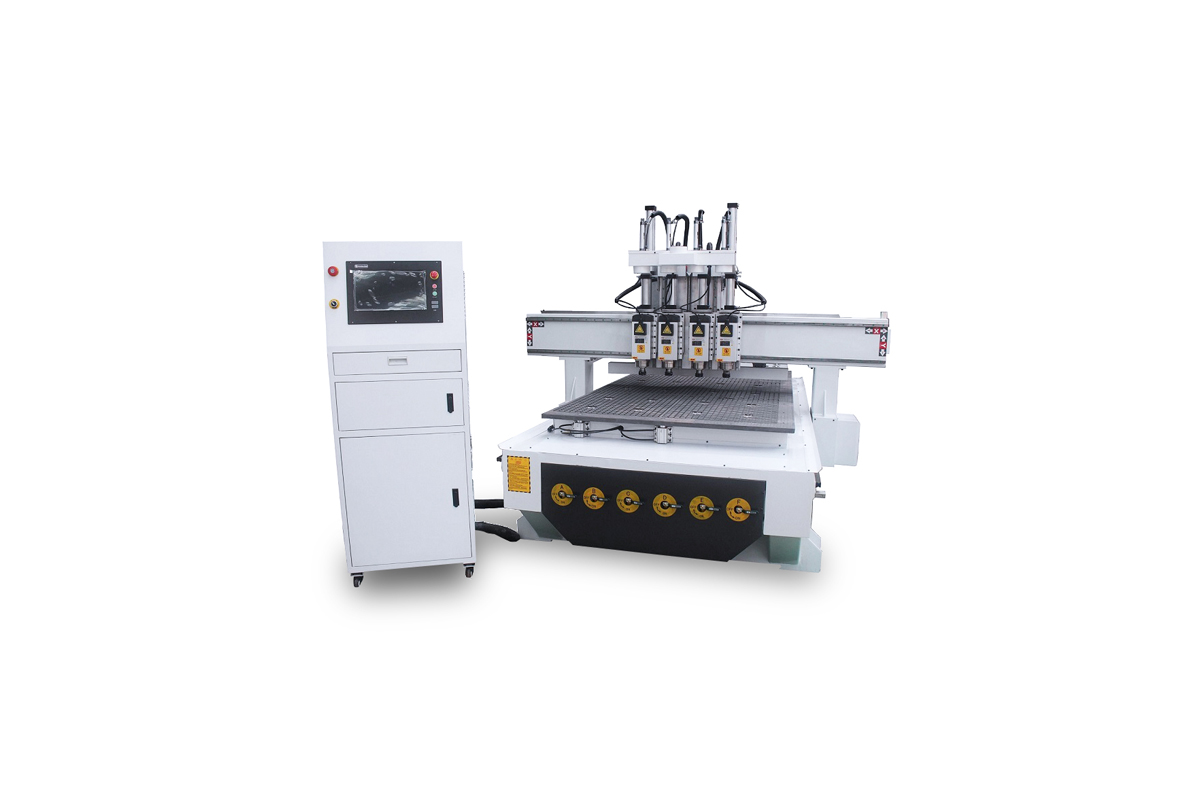

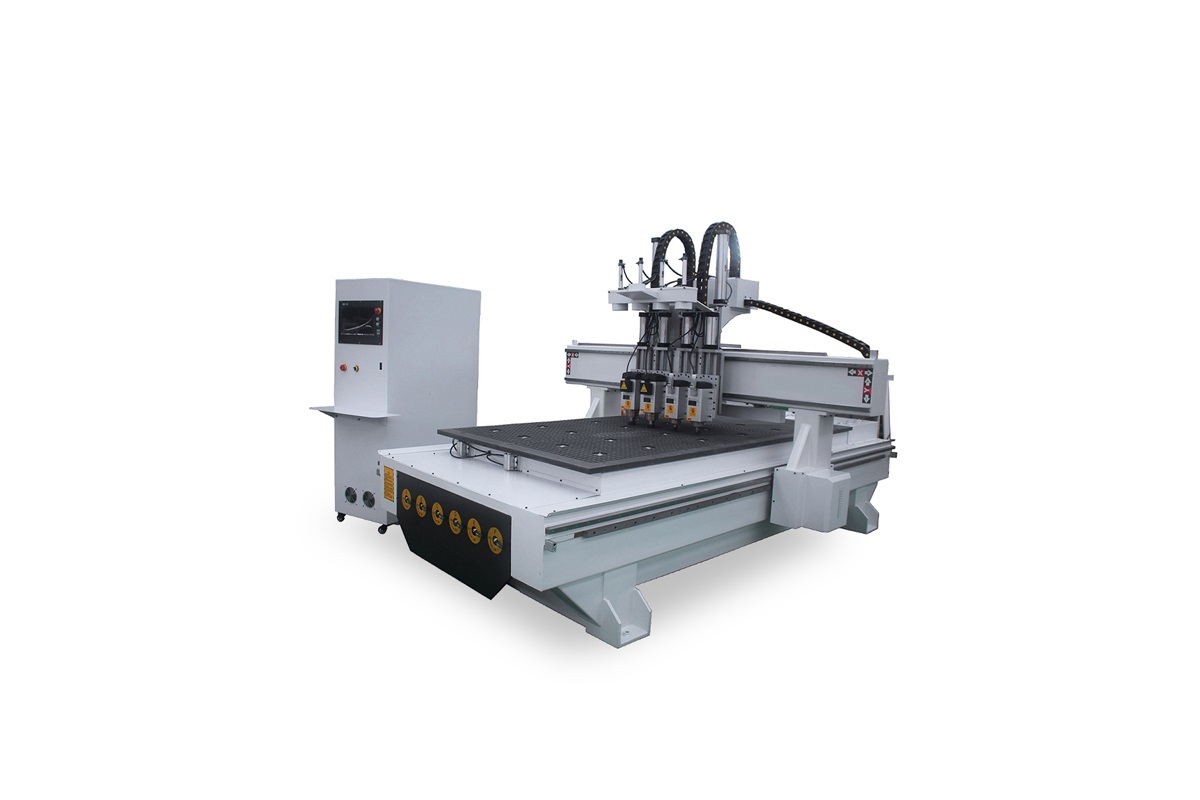

Characteristic

1.Four spindles can use four different tools for four different processing at the same time, which is similar with an economical auto-tool changer cnc machine center with four tools.

2.the vacuum pump holds tightly the carving materials which makes operating more reliable an convenient.

3.With feeding roller on table can make it is more easy when put sheet on table.

4.leading rack rotation with high speed and strength.air speed can be 50m/min,when working in wave board also can be 25m/min.

5.Advanced  Shandong or Weihong operating system,is compatible withtype3/artcam/Yunxi and so on .

6.the whole welding structure is shaped through tempeing treatment,making it solid and long lasting.

Performance parameter

number	Description	parameter
1	XYZ working area	1300*2500*200mm
2	Table size	1310*3000mm
3	XYZ travel positioning accuracy	±0.025mm
4	XYZ repositioning positioning accury	±0.025mm
5	Table surface	Bakelite sheet
6	grantry	steel
7	drive system X-Y axis	Rack actuation
8	drive system Z axis	Ball screw
9	Spindle power	4.5*2/6KW*2
10	Max velocity	50m/min
11	Max working speed	25m/min
12	Spindle speed	0-24000rmp
13	work mode	Hydrid servo
14	Working voltage	AC280V
15	Command language	G code
16	Interface	USB
17	Operating system	Shanlong or Weihong
18	Flash memory	128
19	X-Y resolution	0.025mm
20	Software environment	Type3, artcam,Xunxi
21	Running environment	Temperature:0-45°C
22	Paking size	3300*1900*1900mm
23	Net weight	1300 kg
24	Gross weight	1500 kg

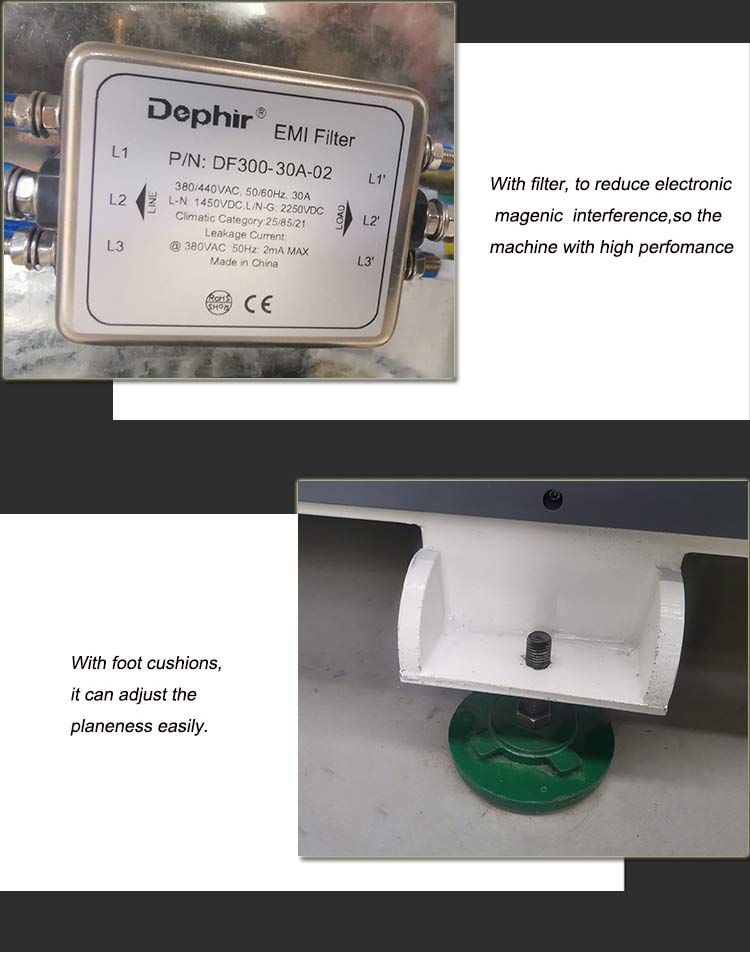

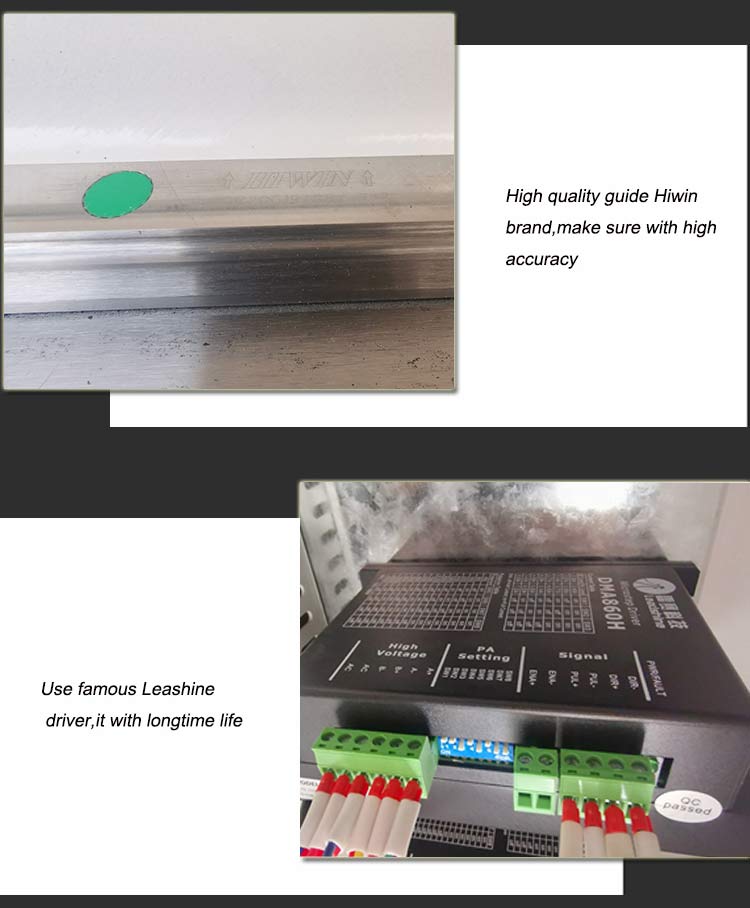

Machine Parts：



























































































































































































































































































































Working Samples：













































Producing Process：























































































































































Company Profile：







































































































































FAQ：

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
