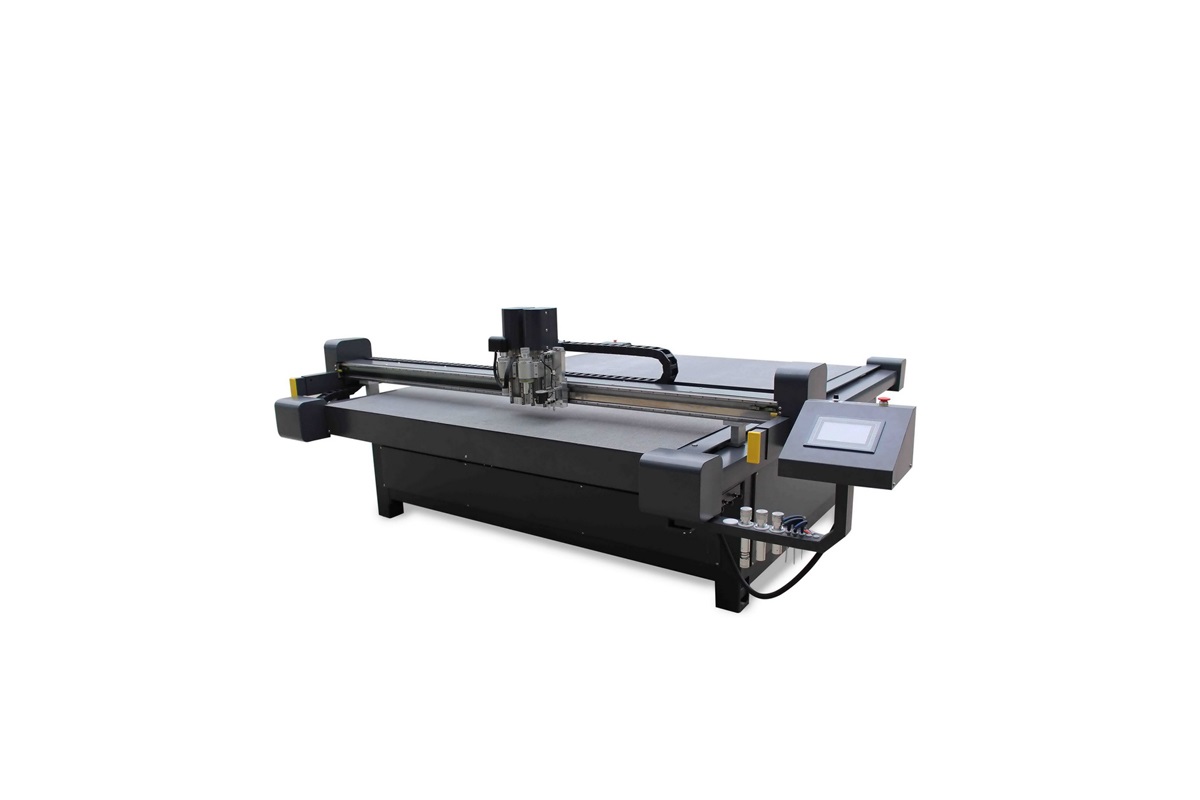

Flatbed digital cutter DCZ7X



Induction



This DCZ7X series high speed digital flatbed cutter is a newly developed cutting system aiming at the industries like packaging, printing, advertisement, display, etc. Configured with versatile tools including oscillating knife, creasing wheel, drag knife, V cutting knife and pen, this high speed cutting equipment whose maximum cutting depth is 60mm, can be used to cut corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion board and other materials. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.
Main features

  1. Our high speed digital flatbed cutter consists of two independent modules and its cutting tools are interchangeable.
  2. Table of this digital corrugated board cutter is designed with a new vacuum zone and adopts steel frame instead of the original

section material frame. This new design endows the cutting machine with stronger suction capacity and more stable mechanical

property

  1. Automatic tool setting system makes tool replacement more convenient. After replacing the knife tools, you just need to press the

button and then depth of the knife tool will be set automatically. In this way, damaged to the cutting table caused by manual operation

error will be avoided

Cutting materials:
Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet etc.
Application:
This machine can be used to make samples, cut and small production in the industries such as Ads, Display, Packaging, Graphic and so on.

Parameter

 Mode  DCZ752516  DCZ751713  DCZ751310
 Effective cutting area  2500*1600mm  1700*1300mm  1300*1000
 Configuration  Oscillating knife、pen、creasing tool、drag knife, foam tool, v cut tool
 Smallest cutting diameter  6mm
 Max aped  1400mm/s
 Driver  Servo
 Precision  ≤0.1mm
 Maximum cutting thickness  60mm
 Data form  HPGL,DXF,PDF
 Voltage  220v±10% 50Hz
 Data port  parallel port,serial port,USB port
 Option  Video registration system, feeding and blanking system
 Occupy dimension(L*W*H)  3500*3200*1400mm  2700*2900*1400mm  2300*2600*1400mm
 Note  Other size can be customized.
