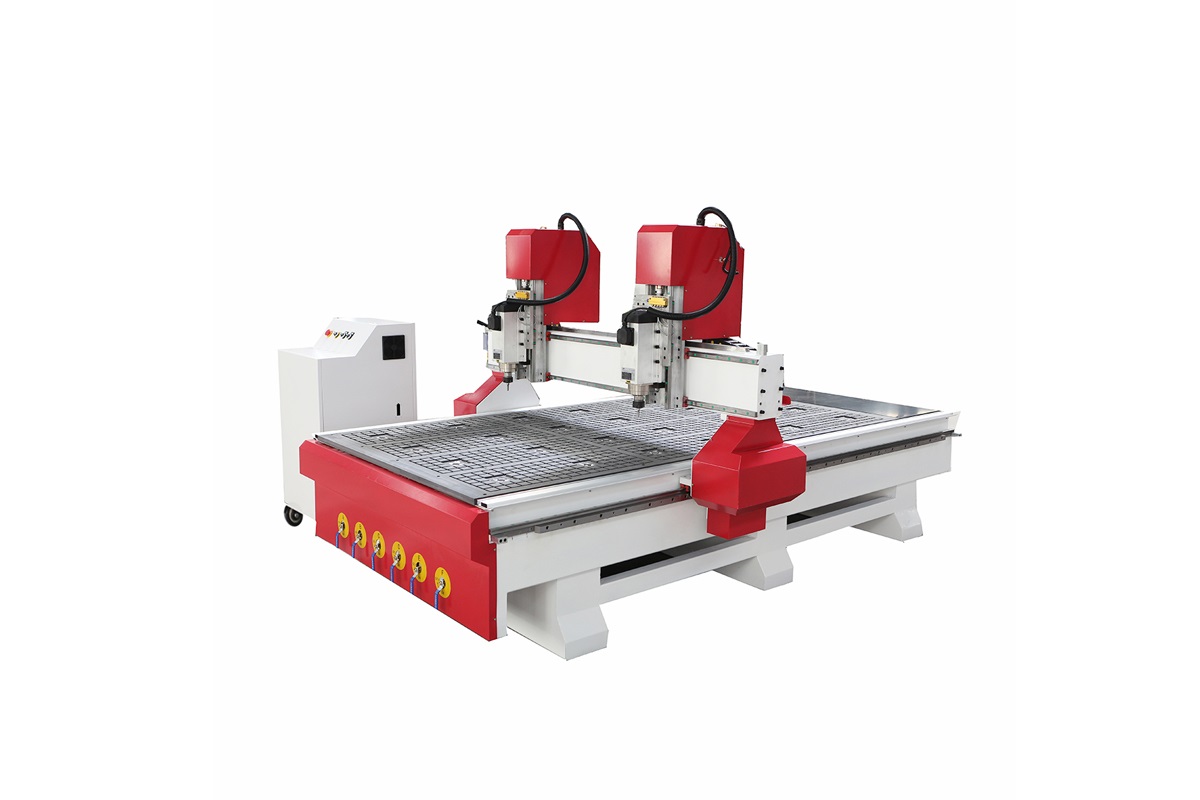

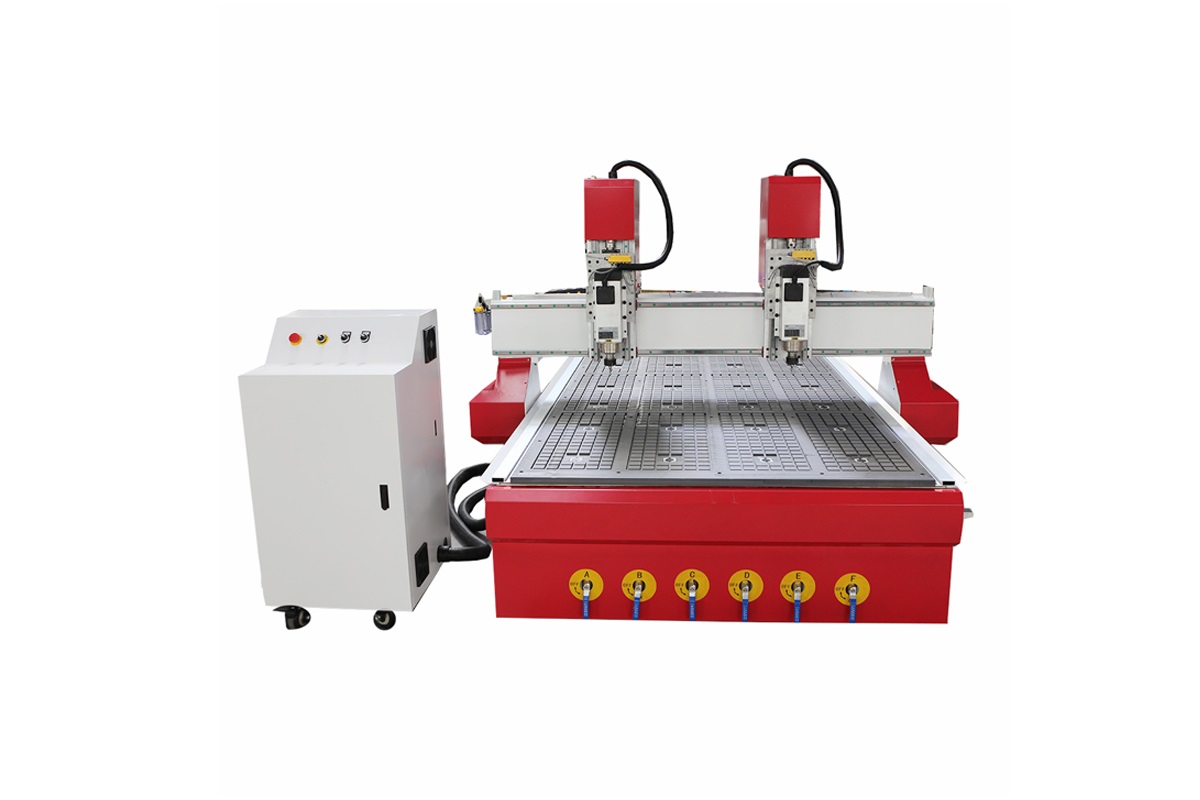

Double heads CNC router HT-1325



characteristic:



1.Water cooling spindle,high precision,long life time,steady working,easy to start up.
2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.
3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.
4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.
5.auto oilling system ,easy to operate by pressing one key.
6.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.

7.This machine with two heads and two spindles,it can work together or separately.



  performance parameter:



number Description parameter
1 XYZ working area 1300*2500*200mm
2 Table size 1310*3000mm
3 XYZ travel positioning accuracy ±0.025mm
4 XYZ repositioning positioning accury ±0.025mm
5 Table surface Aluminum T slot +PVC
6 grantry steel
7 drive system X-Y axis rack
8 drive system Z axis Ball screw
9 Spindle power 3/5.5KW
10 Max velocity 50m/min
11 Max working speed 25m/min
12 Spindle speed 0-24000rmp
13 work mode step(optional servo)
14 Working voltage AC220/330V
15 Command language G code
16 Interface USB
17 Operating system DSP/Mach3/Ncstudio
18 Flash memory 128
19 X-Y resolution 0.025mm
20 Software environment Wentai type3 artcam
21 Running environment Temperature:0-45°C
22 Paking size 3300*1900*1900mm
23 Net weight 1000 kg
24 Gross weight 1200 kg
