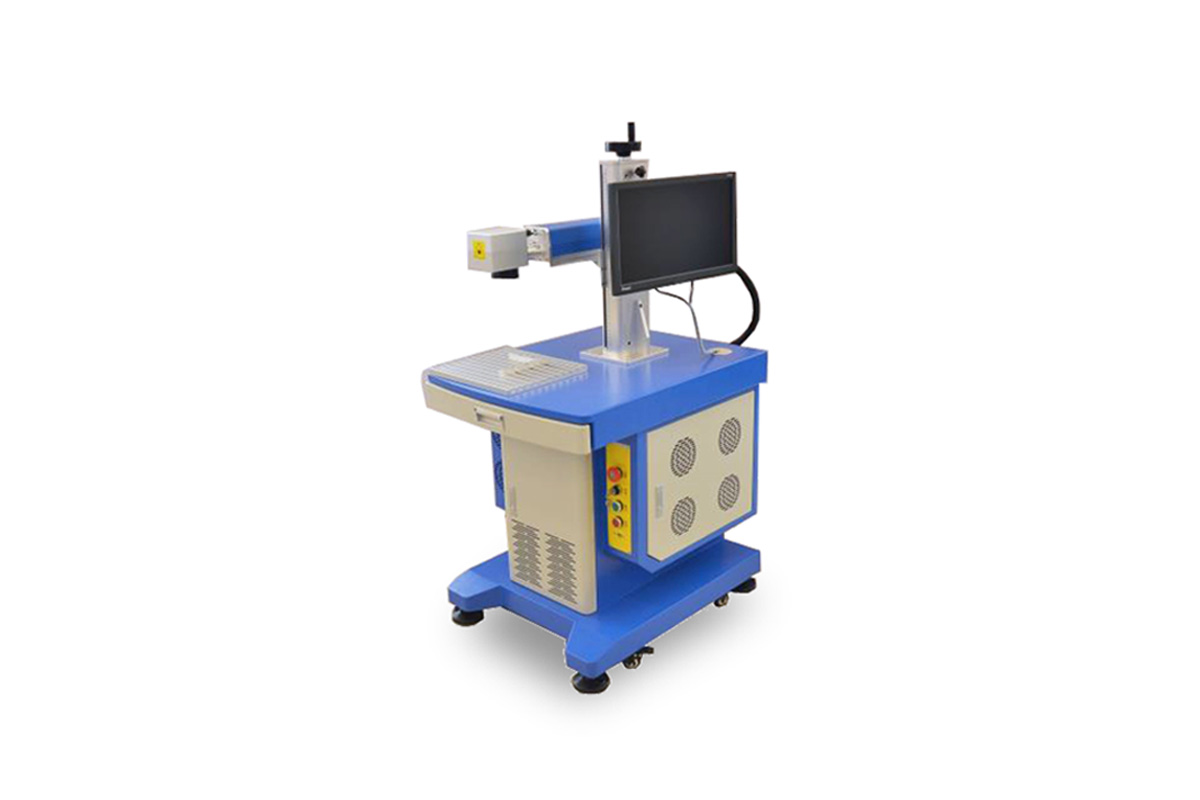

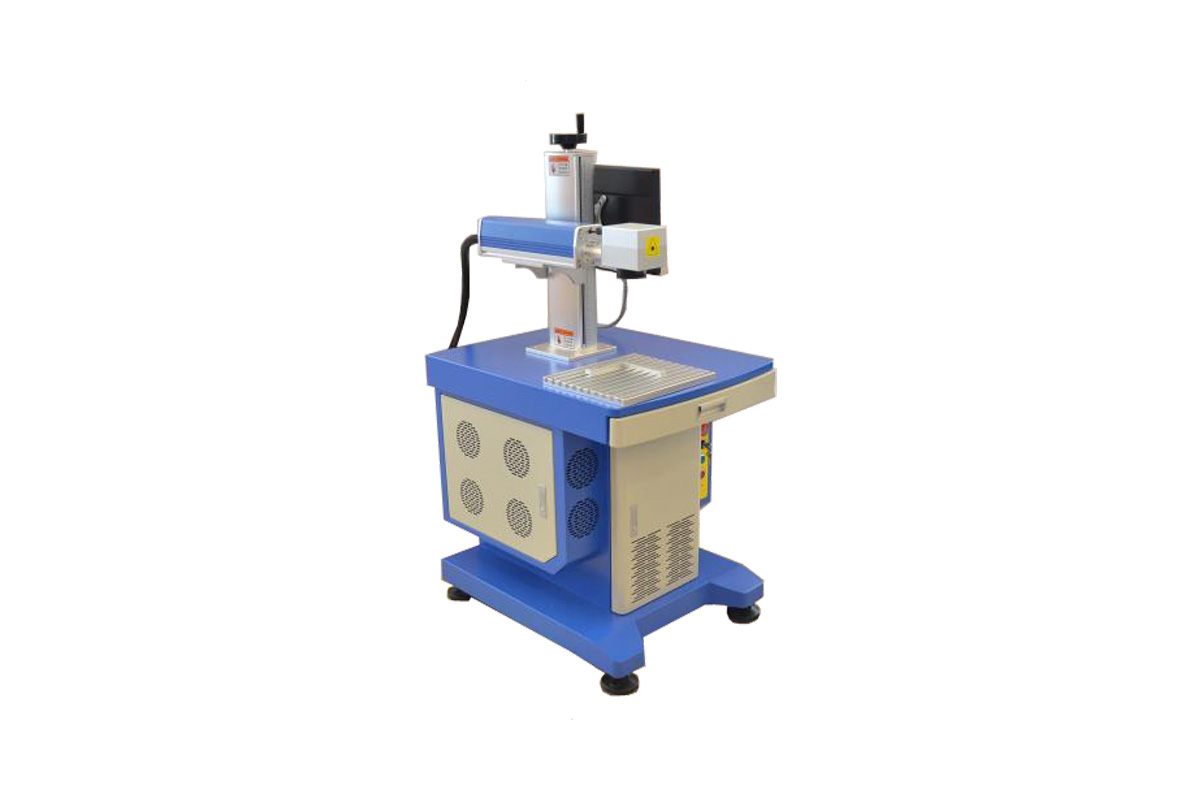

Desktop fiber laser marking machine

Applicable Materials

Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface treatment(Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer).etc.

Parameter

HT-10 HT-20 HT-30
LASER POWER 10W 20W 30W
LASER WAVELENGTH 1064nm 1064nm 1064nm
FIBER LENGTH 2.5m 2.5m 2.5m
LASER UNIT USING LIFE 100,000 hours 100,000 hours 100,000 hours
MARKING SPEED <= 12000mm/s

Character marking speed and production line speed depend on material , character size and desired marking quality
MARKING SPEED 2-3 digital(2*3mm)/ 0.01s 3-5 digital(2*3mm)/ 0.01s 5-8 digital(2*3mm)/ 0.01s
MARKING DEEPTH 0.01-0.2MM 0.01-0.2MM 0.01-0.5mm
MIN. LINE WIDTH 0.01MM 0.01MM 0.01MM
MIN. CHARACTER HEIGHT 0.2MM 0.2MM 0.2MM
MARKING FILED (110*110mm

(focal length f=160mm)

 (110*110mm (focal length f=160mm)

Optional

175mm lens

 (110*110mm (focal length f=160mm)

Optional

175mm lens , 250mm lens
POWER SUPPLY 220V 50HZ / 2A 220V 50HZ/2A 220V 50HZ/2A
POWER CONSUMPTION 300 W/ hours 800W/ HOUR 1000W/HOUR
COOLING AIR AIR AIR
POSITIONING Visible red power Visible red power Visible red power
OPERTAION TEMPERATURE 25℃ to 28℃ 25℃ to 28℃ 25℃ to 28℃
HUMIDITY 5% to 75% (no condensation) 5% to 75% (no condensation) 5% to 75% (no condensation)

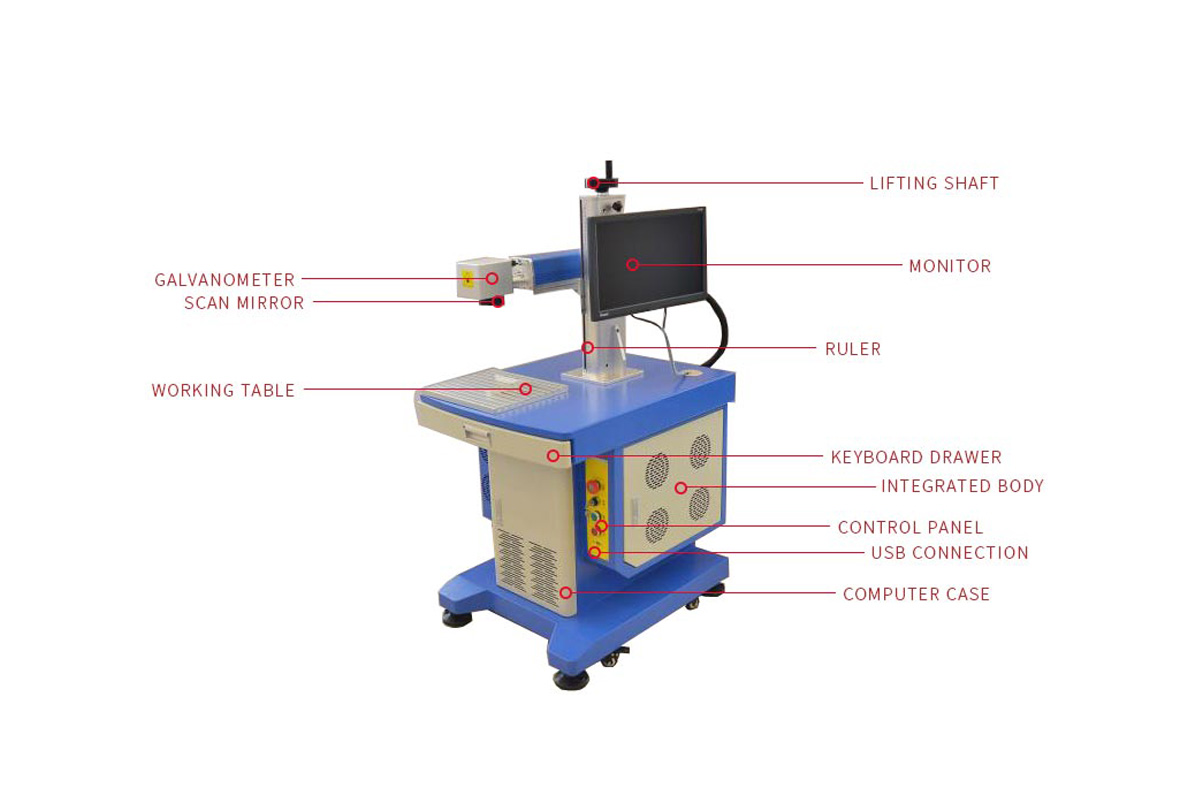

Machine advantages:





Working samples:



Producing processing：





Company Profile：



Jinan Hopetool CNC Equipment Co.Ltd. is located in Jinan, Shandong Province, China. The company integrates production and trade, and has ten years of production experience. Its main products include CNC routes, laser machines, fiber laser cutting machines, etc. Our products have complete CE, ISO, SGS, high tech company certificate and other certificates, and we have export certificates, which can be sold all over the world.



Certificate：



Customer Photos：



FAQ:

Q1.How to get the most suitable machine and best price

​Please tell the material you want to working on ? ​How to working on it ? Engraving ? Cutting ? Or other ? ​What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?
​The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
​The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if ​you are busy ,we will have the special engineer to your country,but you need to bear some fee,like ​tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. ​The testing video and pictures will be available before delivery.

      Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
