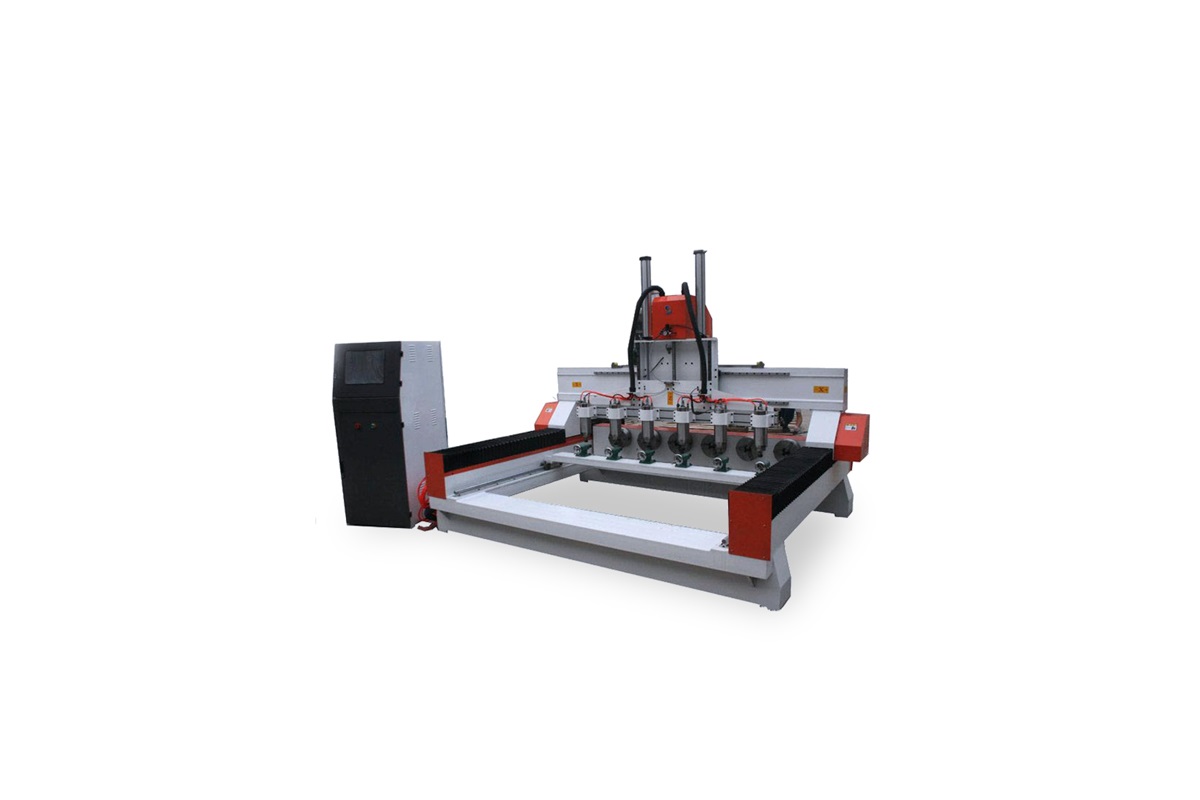

Feature:
1.With 4 axises,Single Rotary, which can do any cylinder’s engraving and cutting, milling, the processed cylinder diameter can be increased to 500mm, length can be 2400mm.
2.With Scanner or designed photo, it can do any 3D Engraving
3.Has the rotary which is used for engraving cylinder workpiece.
4.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5.Has the function of re-carving after break point and power failure.
6.Has the function of forecasting process time.
Adopting advanced DSP system with USB connection, operated with the handle,
8.Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
9.Professional used for making : any kind of wood cylinder , foam cylinder Engraving and Milling.
Applicable industries:
Balustrade,furniture legs,stair railing ,cylinder items,handrail,desk or chair legs,teatray,The human body,avatar,3D cylinder mold,and a variety of rotational symmetry.
Wood processing:processing of various furniture such as door, window, cabinet, furniture, craft wood door, screen and so on.
Applicable materials:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
It can manufacture the following effects: engraving, cutting, milling, drilling, relief, shadow, enchase and so on.
Technical Parameter
Description |
Parameter |
X,Y,Z Effective Working Table Area |
2000mm*1200mm*250mm |
Rotary Max.Diameer |
300mm |
Rotary Max.Length |
1500mm |
Table Size |
2140mm*2800mm |
Resolution |
0.03mm |
Lathe Structure |
Seamless welded steel structure |
X,Y Structure |
Rack and pinion transmission,
Hiwin square guide rail |
Z Structure |
Germany rolling ball screw,
Hiwin square guide rail |
Max. Idling Speed |
35m/min |
Single Spindle Power |
2.2 KW water cooling spindle |
Spindle Rotate Speed |
0-24000r/min, variable speed |
Working Voltage |
AC380V/50Hz |
Working Mode |
Servo |
Command |
G code (HPGL,U00,mmg,plt) |
Operating System |
DSP/Ncstudio/Mach3 |
Diameter of cutter |
φ3.175-φ12.7mm |
Dust-collect Function |
Yes |
Work-holding |
By clamp |
Software |
Type 3, ArtCam,powermill, Wentai |
Packing size |
3900mm*2280mm*2260mm |
Net Weight |
1800KG |
