Product Description

CNC stone router machine is Water cooling spindle,high precision,long life time,steady working,easy to start up.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.DSP controller system with USB interface,working without connecting with computer during working and easy to control

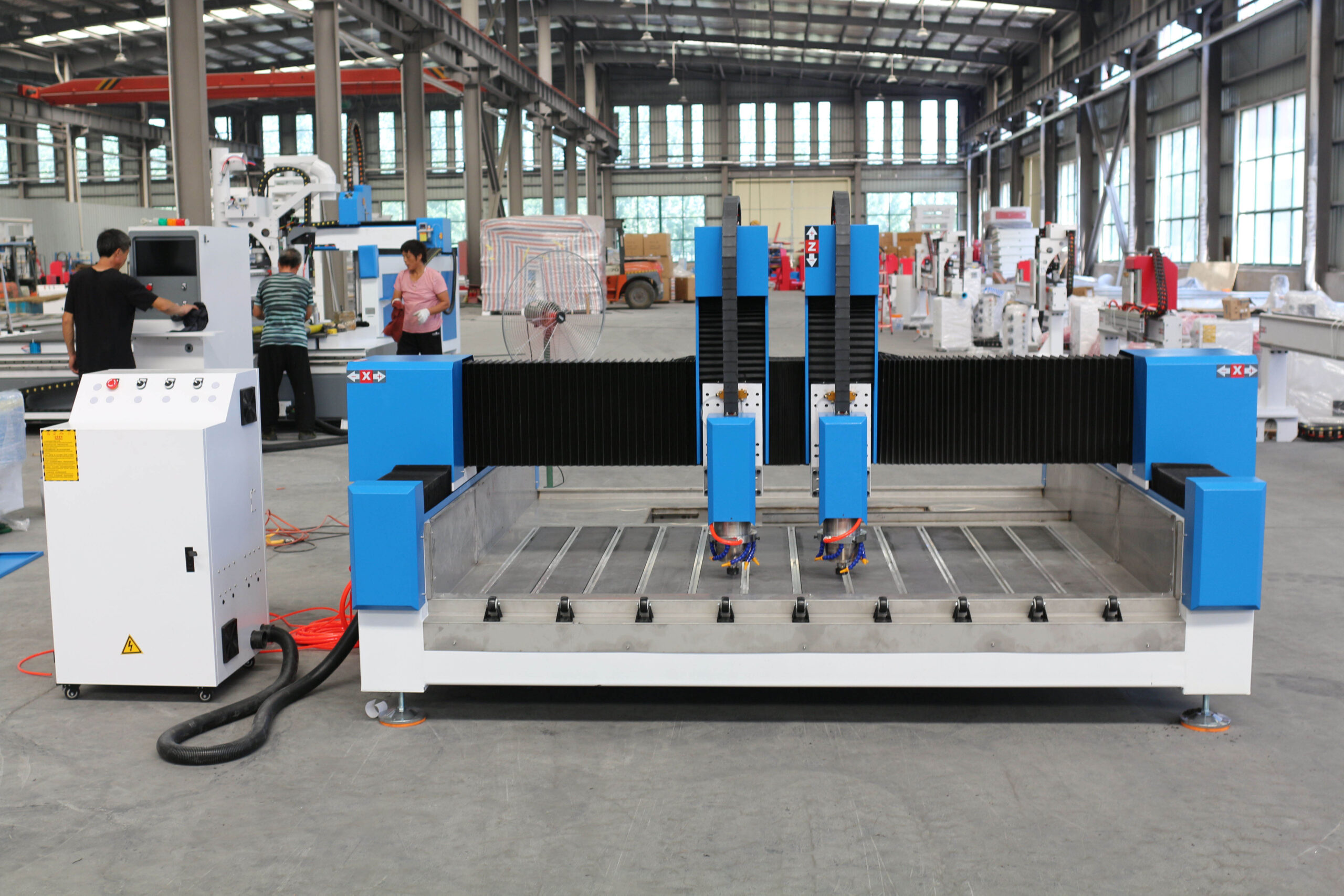

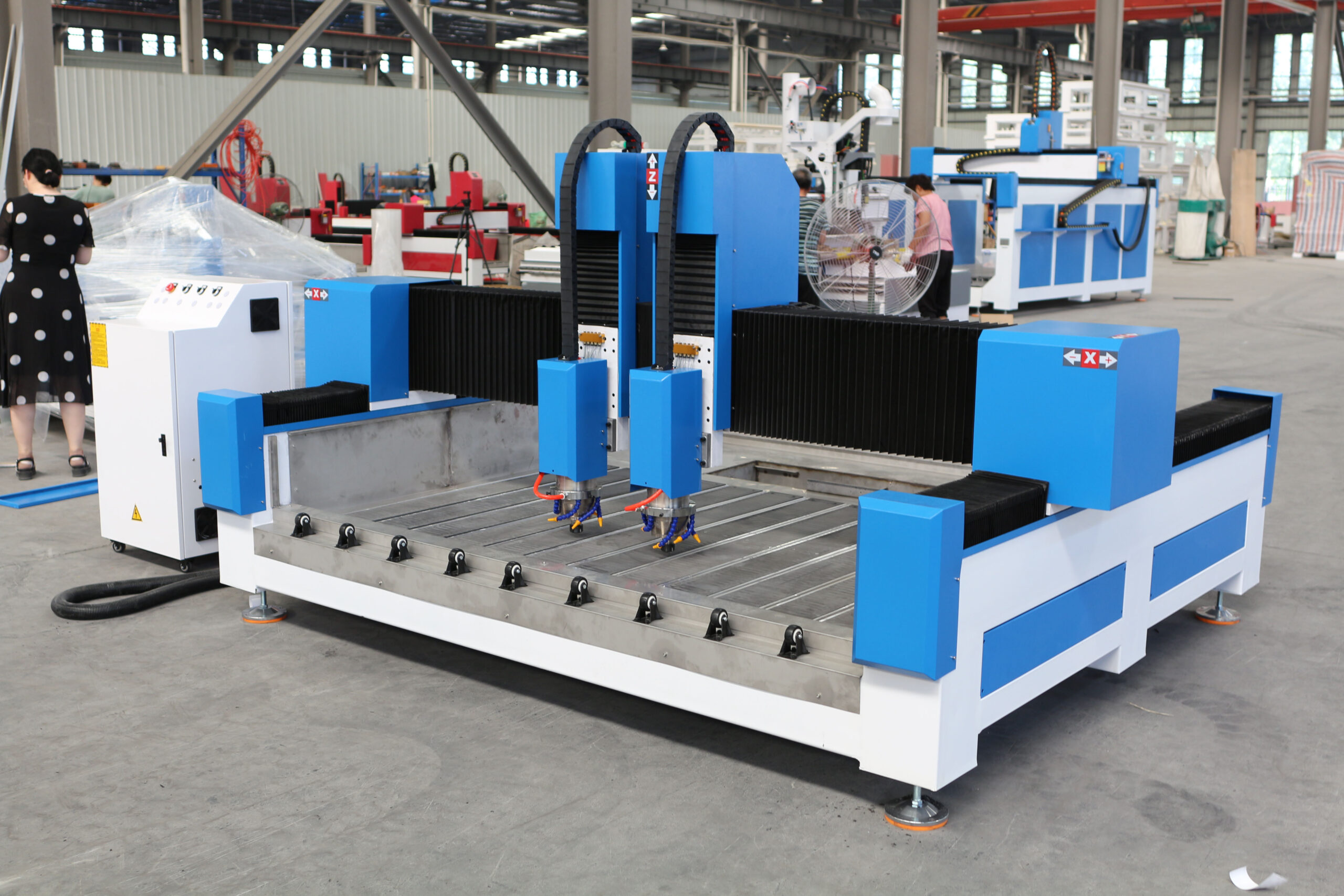

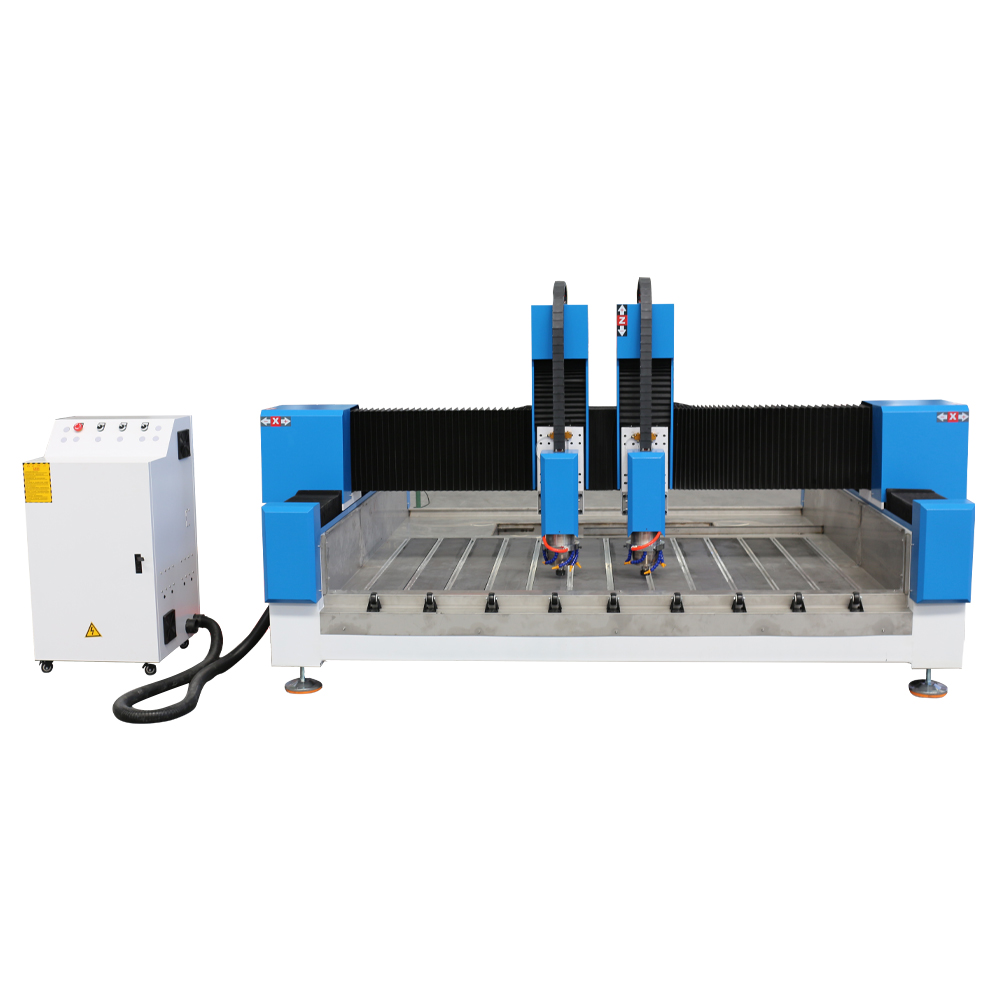

 CNC stone router machine

Table size：2000*1300mm
Table surface：Aluminum T slot +PVC
Spindle power：5.5KW
Max velocity：50m/min
Max working speed：25m/min
Spindle speed：0-24000rmp
Working voltage：AC220/380V

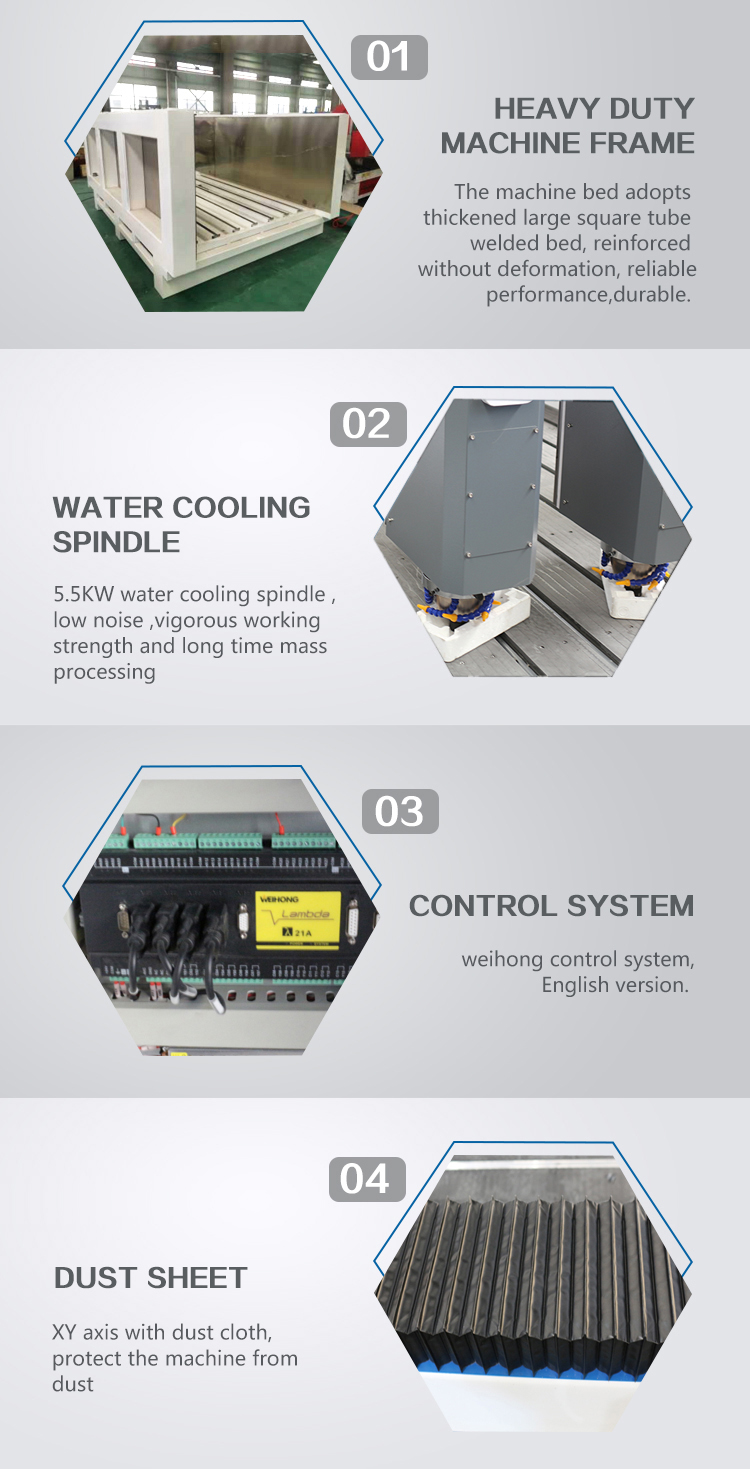

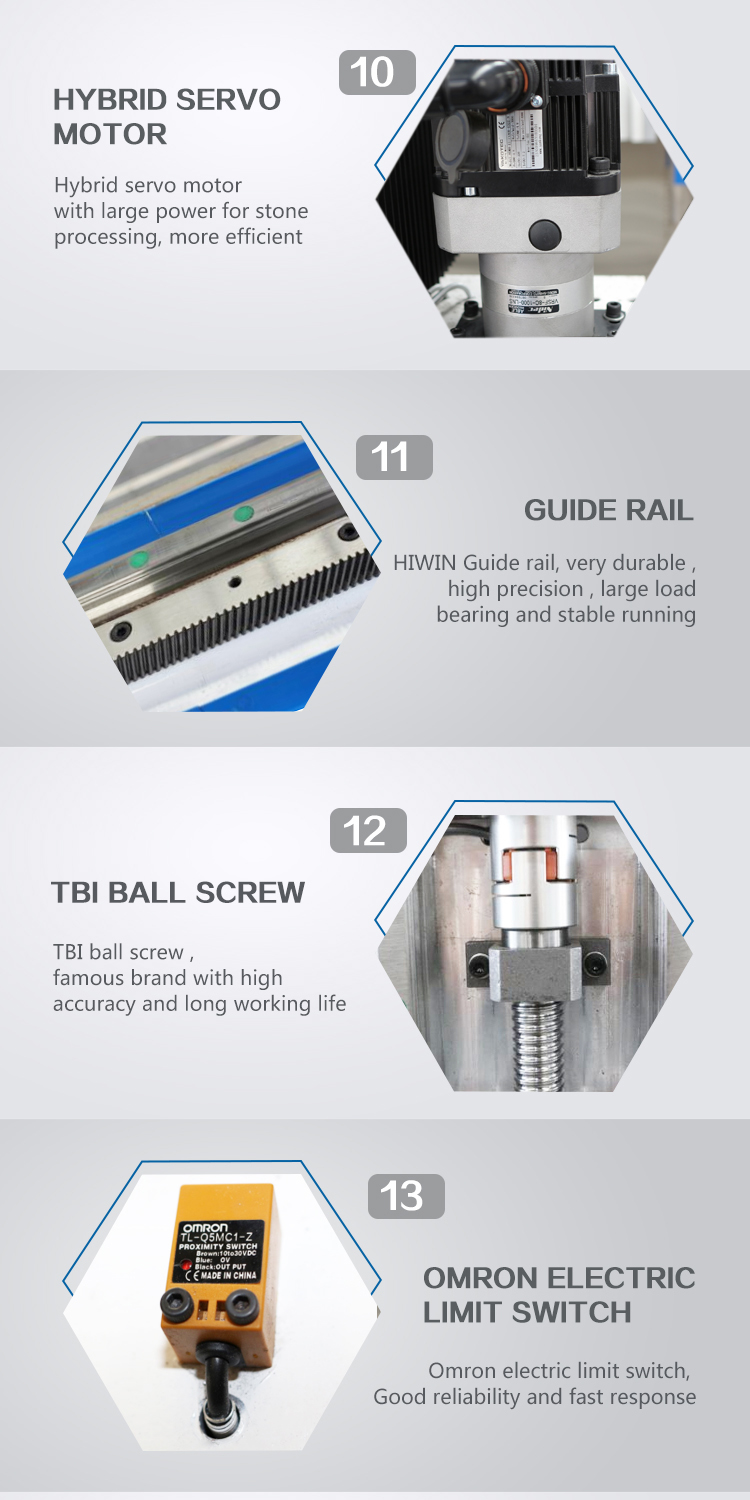

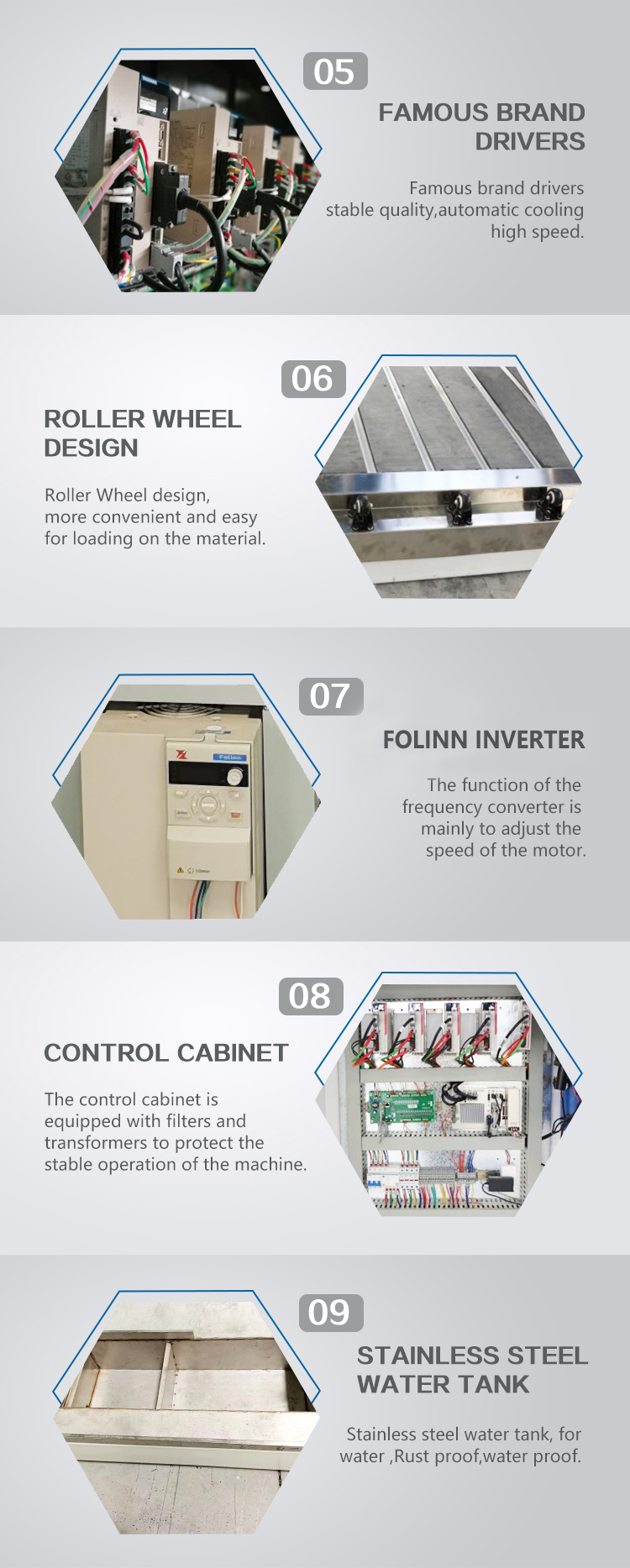

Product Configuration

• CNC stone router machine leading Rack Drive, fast, high efficiency, air-speed can reach 35 m / min or more, against the wave plate is carved in manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 — 5 ordinary type machines.
• Machine intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage.Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision caused the phenomenon.

Performance Parameter

XYZ working area:2000*1300*300mm/400mm/500mm/600mm                                            Table size:1310*3000mm
XYZ repositioning positioning accury:±0.01mm                                                                              Table surface:Aluminum T slot +PVC
grantry:steel                                                                                                                                              drive system X-Y axis:Rack
drive system Z axis:Ball screw                                                                                                               Spindle power:5.5KW
Max velocity:50m/min                                                                                                                            Max working speed:25m/min
Spindle speed:0-24000rmp                                                                                                                   work mode:stepper motor (optional servo)
Working voltage:AC220/380V                                                                                                              Command language:G code
Interface:USB                                                                                                                                            Operating system:DSP/Mach3/Nc Studio
Flash memory:128                                                                                                                                    X-Y resolution:0.025mm
Software environment：Wentai type3 artcam                                                                                   Running environment Temperature:0-45°C
Paking size：3300*2200*1900mm                                                                                                      Net weight:1300 kg
Gross weight：1500 kg

Working Samples

CNC stone router machine applied to the tombstone processing industry, home decoration industry, arts and crafts, etc industries.
CNC stone router machine Mainly process on granite, marble, glass, ceramic, white marble, jade, blue stone, sandstone, black brick, Plastic, foam metal, etc material.

Our partener

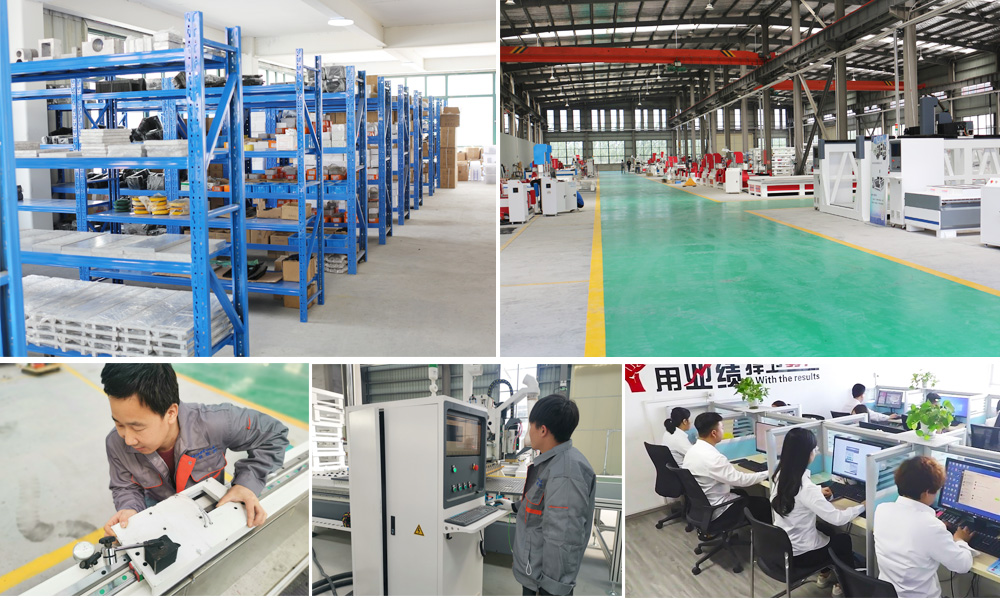

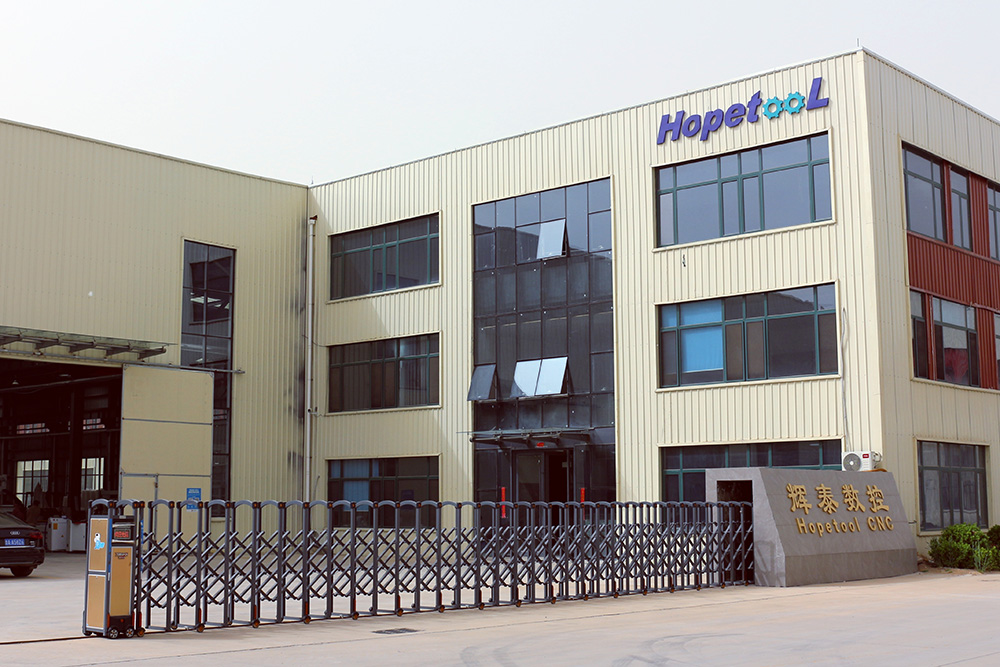

Company Profile

Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing CNC router , co2 laser machine,fiber laser cutting machine.After 10 years’ hard work, our machines have been exported to more than 80 countries, and we have established regular business relationships with many distributors from many countries.

Customer Photos

FAQ

Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
