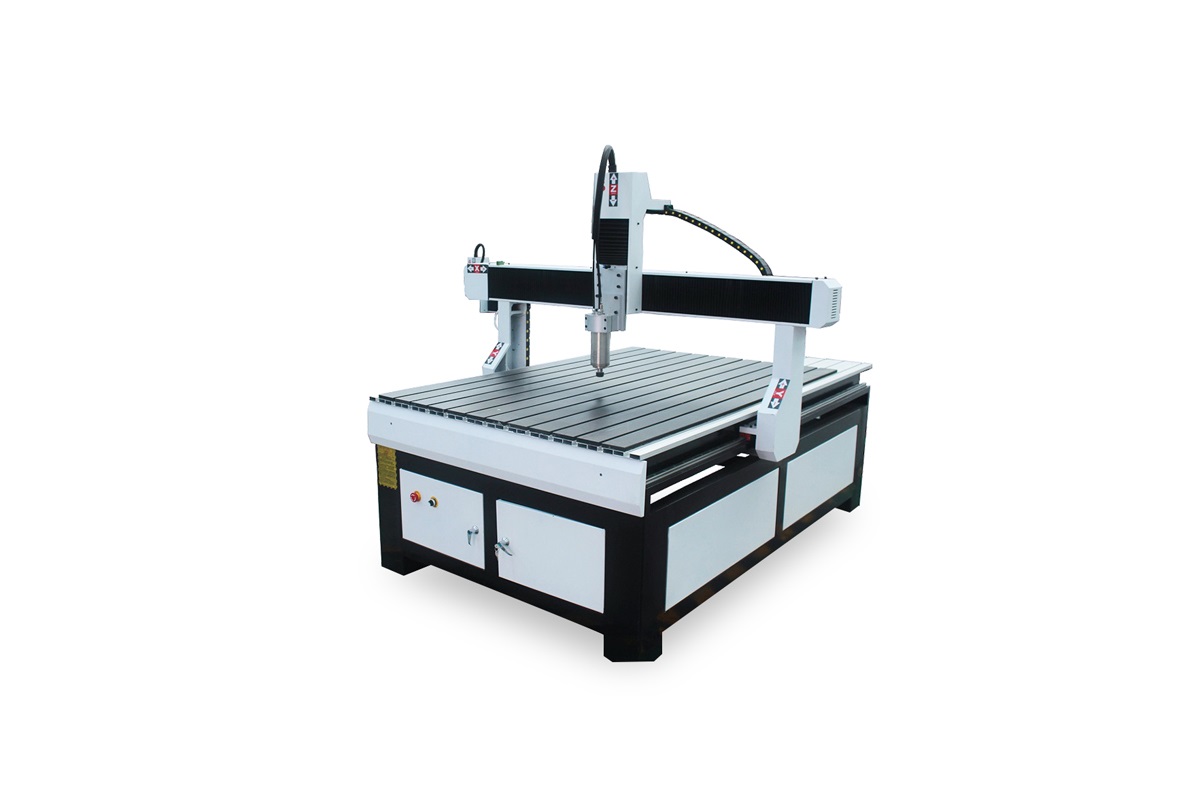

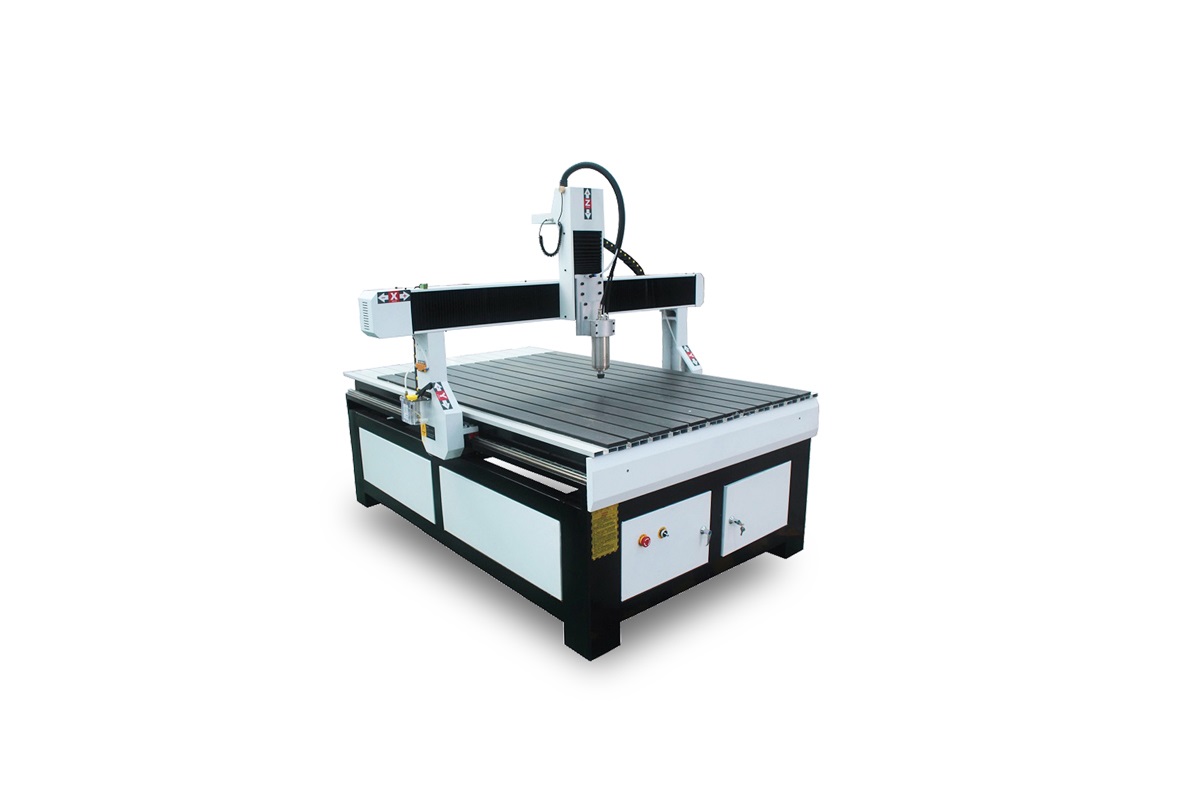

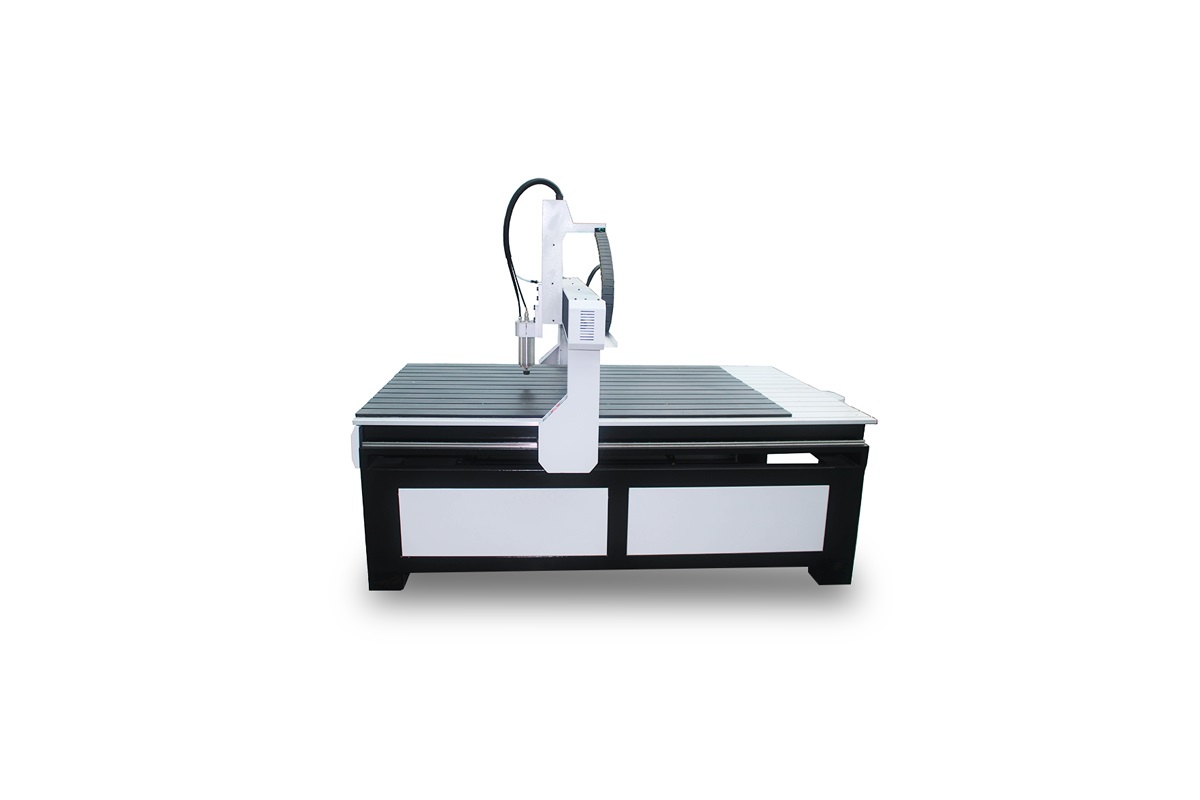

Characteristic
1.High accuracy ball bearing guide screw of taiwan,minimize the slit.
2.Imported linear rail,self lubricating glide.
3.Our routers have the features of recarving after stop and the power failure may be restored.
4.Unique preservation way of the zero point.
5.Use for long time and no distortion.
6.This type is suitable for advertisement,wood engraving.
Performance parameter
Number | Description | Parameter |
1 | XYZ working area | 1200*1800*100mm |
2 | Table size | 1330*2700mm |
3 | XYZ travel positioning accuracy | ±0.01mm |
4 | XYZ repositioning positioning accury | ±0.01mm |
5 | Gantry | Aluminium molding+PVC |
6 | lathe structure | casting iron |
7 | drive system X-Y axis | Ball screw |
8 | drive system Z axis | Ball screw |
9 | Spindle power | 1.5KW |
10 | Max velocity | 8m/min |
11 | Max working speed | 6m/min |
12 | Spindle speed | 0-24000rmp |
13 | work mode | Stepper |
14 | Working voltage | AC220V |
15 | Command language | G code |
16 | Interface | USB or parallel port |
17 | Operating system | Ncstudio/DSP/Mach3 |
18 | Flash memory | 128 |
19 | X-Y resolution | <0.025mm |
20 | Software environment | Wentai type3 artcam |
21 | Running environment | Temperature:0-45°C |
22 | Packing size | 2700*1650*1350mm |
23 | Net weight | 450kg |
24 | Gross weight | 500kg |
Working Samples:
Producing Process:
Company Profile:
FAQ:
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
