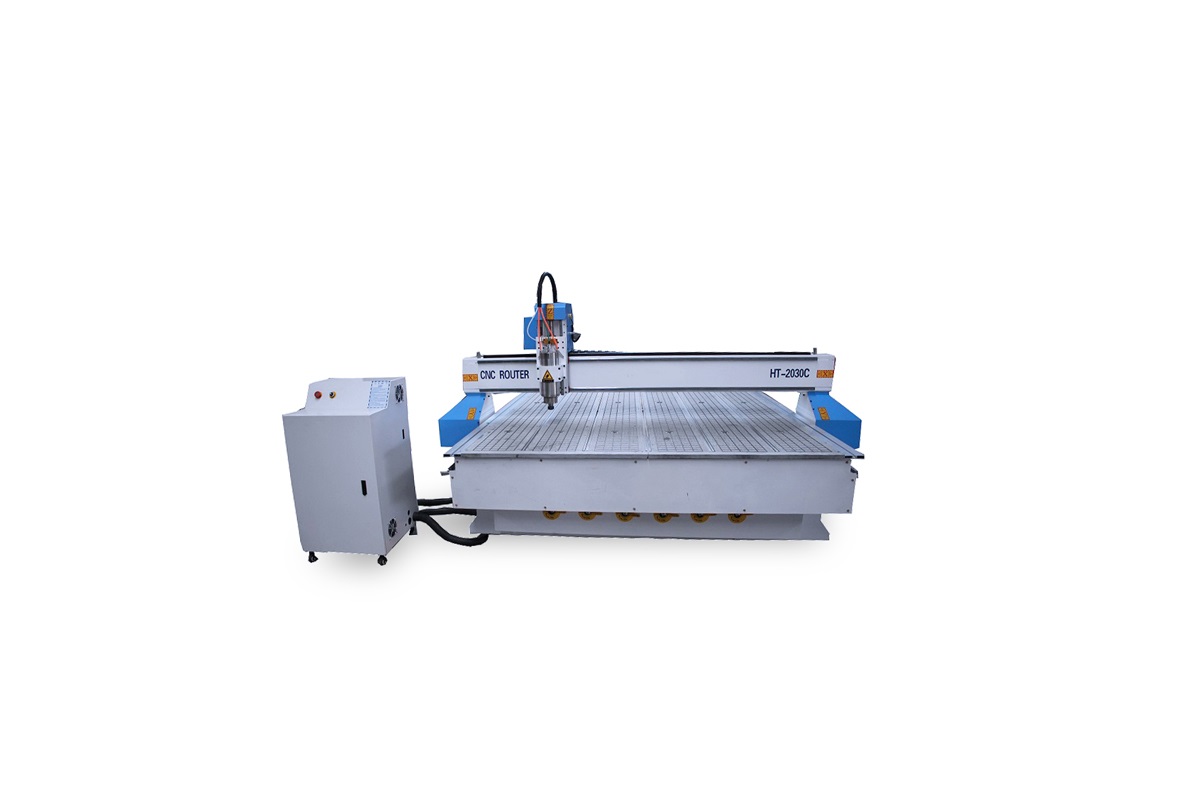

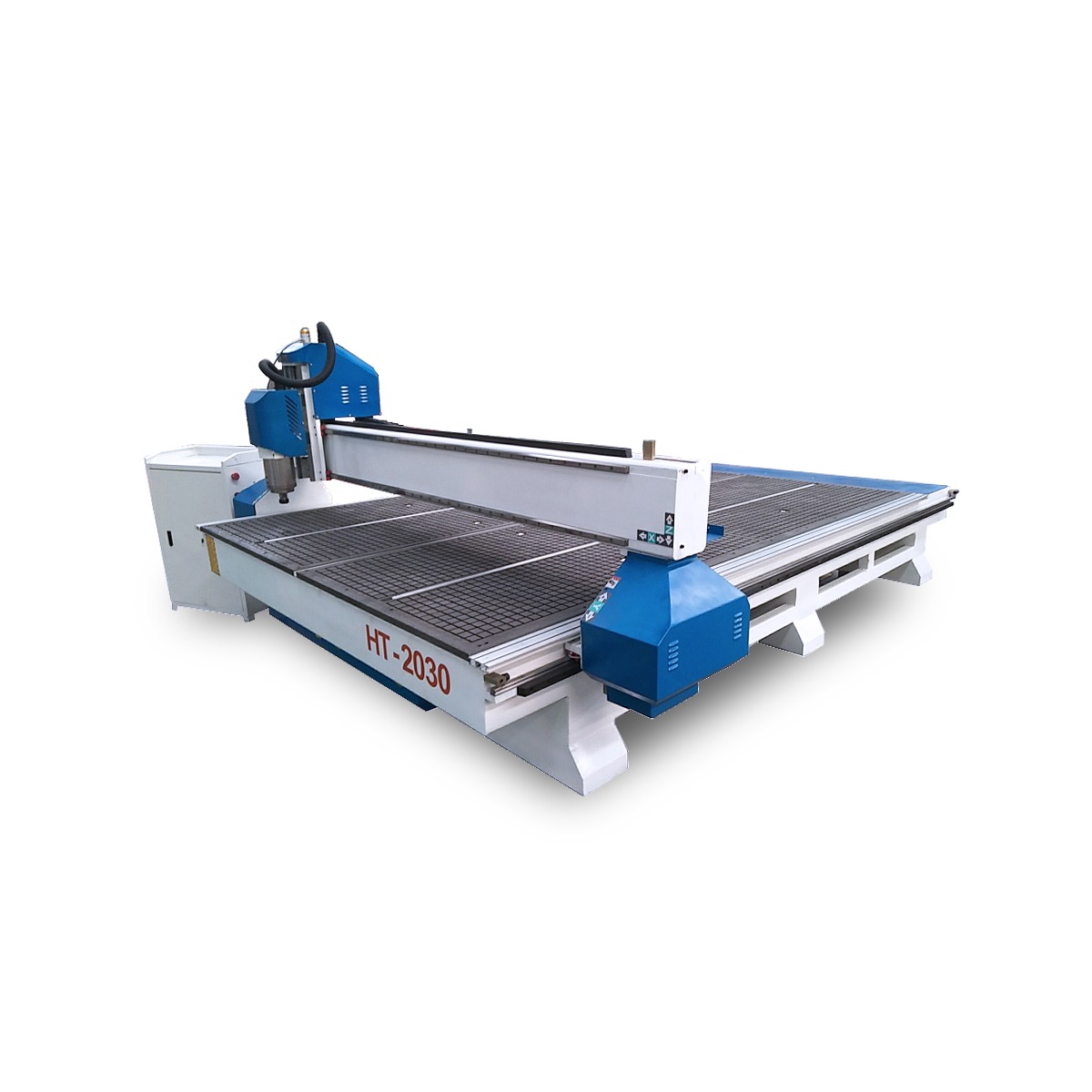

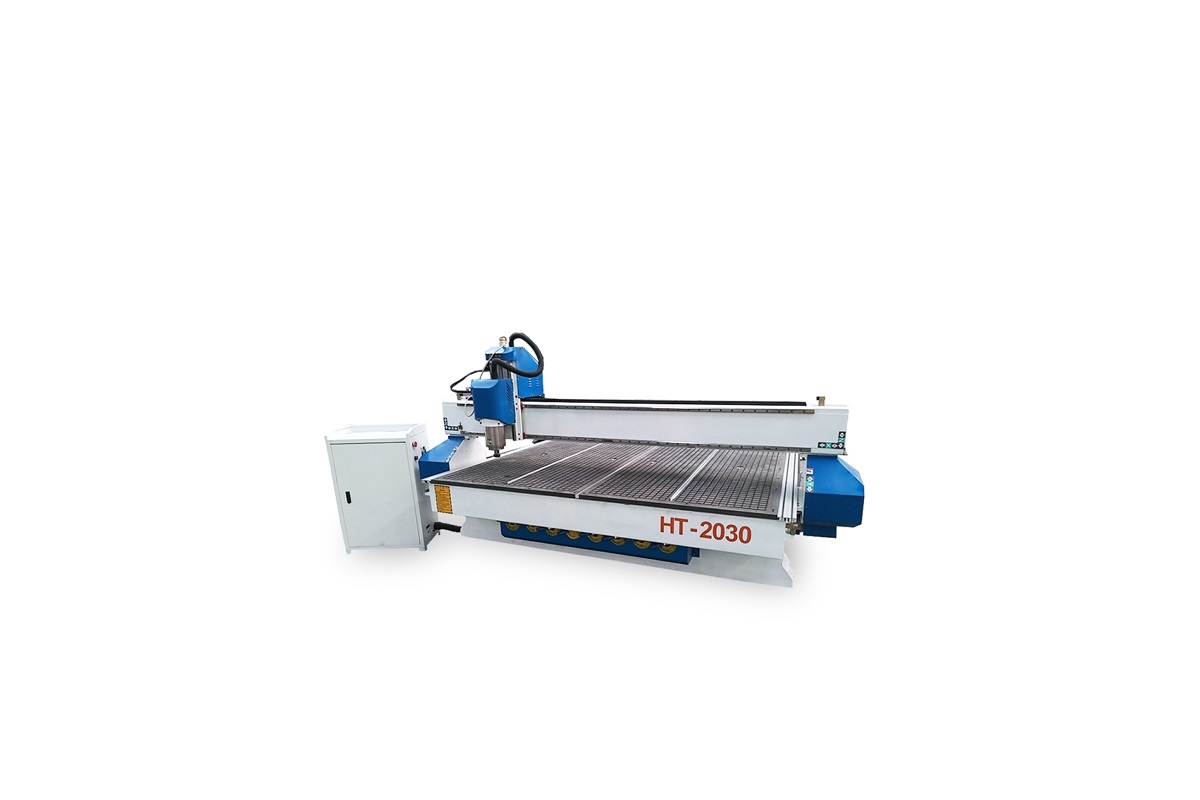

CNC router HT-2030C



  characteristic



1.Water cooling spindle,high precision,long life time,steady working,easy to start up.

2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.

3.DSP controller system with USB interface,working without connecting with computer during working and easy to control.

4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.

5.auto oilling system ,easy to operate by pressing one key.

6.seperated control system makes operation easily.

7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.

8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.



performance parameter



number Description parameter
1 XYZ working area 2000*3000*200mm
2 Table size 2180*3500mm
3 XYZ travel positioning accuracy ±0.025mm
4 XYZ repositioning positioning accury ±0.025mm
5 Table surface Bakelite vacuum table combiated T slot
6 frame steel
7 drive system X-Y axis Rack actuation
8 drive system Z axis Ball screw
9 Spindle power 3/5.5kw spindle
10 Max velocity 50m/min
11 Max working speed 25m/min
12 Spindle speed 0-24000rmp
13 work mode Stepper
14 Working voltage AC220V/380V
15 Command language G code
16 Interface USB
17 Operating system DSP/Mach3/Ncstudio
18 Flash memory 128
19 X-Y resolution  < 0.025mm
20 Software environment Ucancam type3 artcam
21 Running environment Temperature:0-45°C
22 Paking size 3750*2150*2200mm
23 Net weight 1700kg
24 Gross weight 2000kg
