cnc router and laser cutter

This cnc router and laser cutter has both the functions a co2 laser cutting machine and a CNC router, it can cut almost all materials, such as wood, acrylic, density board, PVC, plastic, paper, leather, cloth, etc. You buy this machine can help you complete all the work, fast and beautiful.

Main Features

The overall structure of the machine
♦ Steel pipe welding structure, with multiple supports in the middle, stable structure, no deformation.
♦ Cnc router and laser cutter with specially reinforced gantry to ensure the machine processing accuracy.
♦ The three axes use HIWIN high-quality guide rails to ensure the machine processing accuracy .

CNC router part
♦ 3.2KW high-power water-cooled spindle, cooled by water circulation during work, with fast cooling speed.
♦ Weihong control system, operated by computer, compatible with various CAD/CAM format software.

Laser machine part

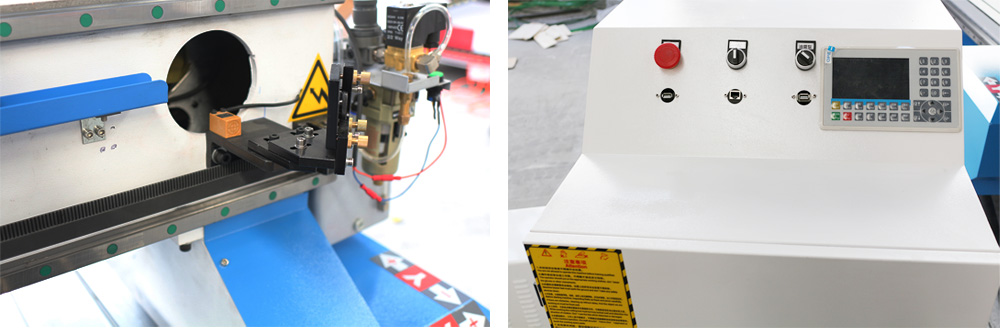

♦ High-precision retractable laser head, easy to adjust the focal length, equipped with red light positioning system, accurate positioning.
♦ Reci closed laser tube, high laser utilization rate, high power.
♦ Ruida control system, LCD digital screen, button control.

Main parameters

Working area: 1300x2500mm.
Machine Bed Width/Length: 1450X3150mm.
Z Travel: 200mm.
Table: Aluminium Tslot table.
Positioning: 0.01mm.
Repositioning: 0.025mm.
Frame: Steel tube welded frame.
Max velocity: 50m/min.
Max working speed: 25m/min.
Spindle power: 3.2KW.
Max Speed: 24000RPM.
Cooling System: Water cooled spindle.
Inverter: Folinn.
Motor: Servo motor and driver.
Transmission: X and Y axis – Guide rail rack Drive,Z axis -TBI Ball Screw Drive.
Laser type: CO2 laser tube,water-cooled
Laser tube: Reci
Laser power: 150W.
Operating system: Weihong cnc system and Ruida cnc system.
Interface: USB and Network.
Power: 220V/380V,Single/Three phase.
Packing size: 3600*2200*1850mm.
Net Weight/Gross Weight: 1200kg/1300kg.

Application

The cnc router and laser cutter has a spindle and a laser head, and has many functions.
♦ Engrave and cut almost all hard materials, such as wood, acrylic, stone, hard plastic, PVC, MDF aluminum, etc.
♦ Engrave and cut soft materials, such as cloth, paper, leather, etc.
It can use in many industries, such as woodworking industry, furniture industry, decoration industry, art industry, mold industry, education industry, construction industry, etc.

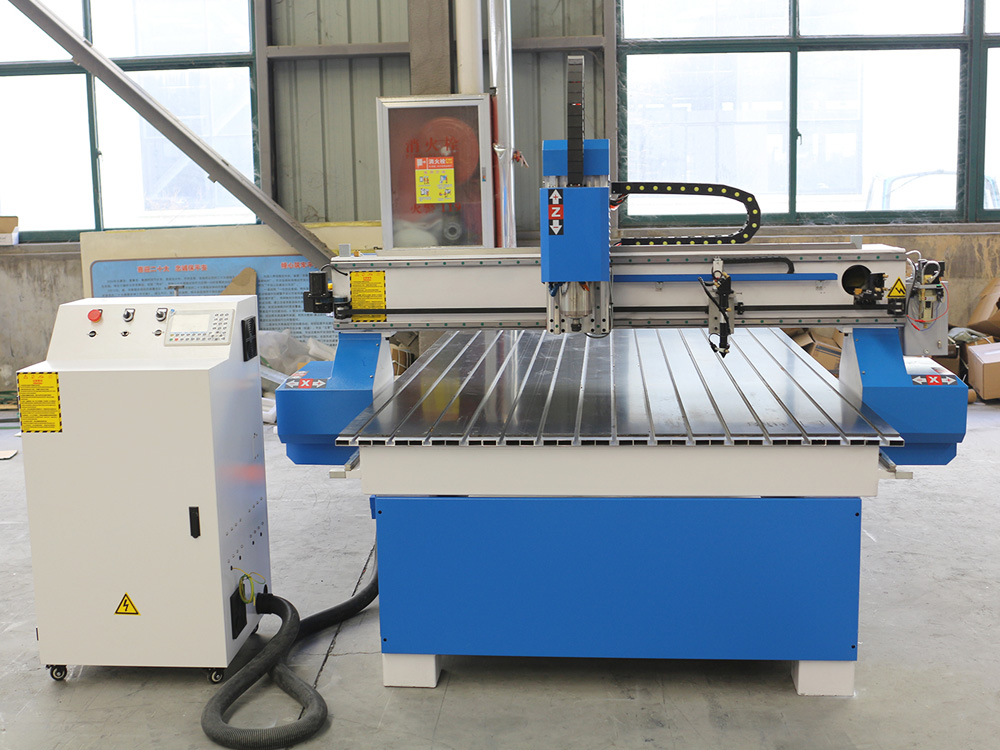

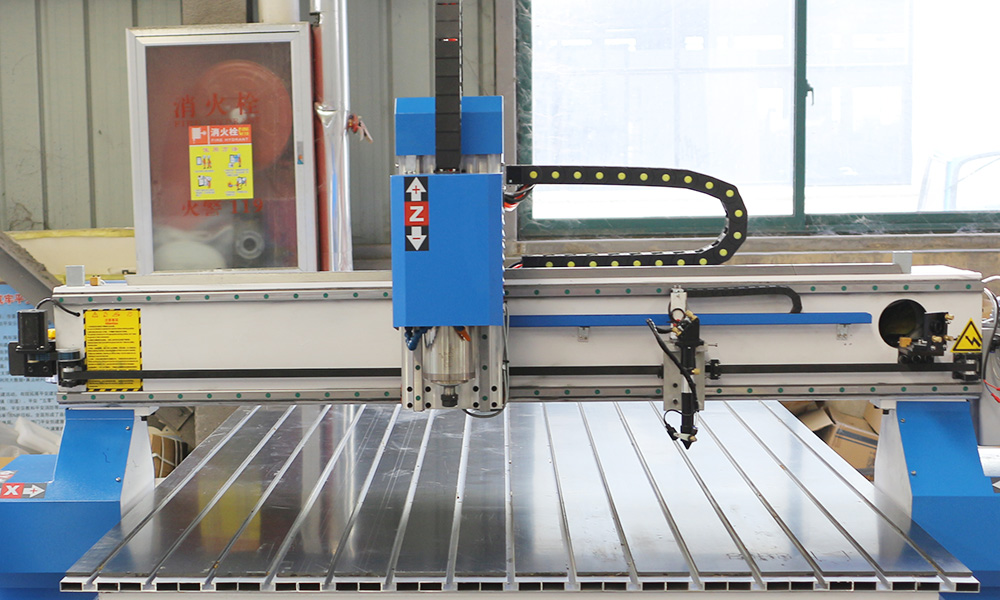

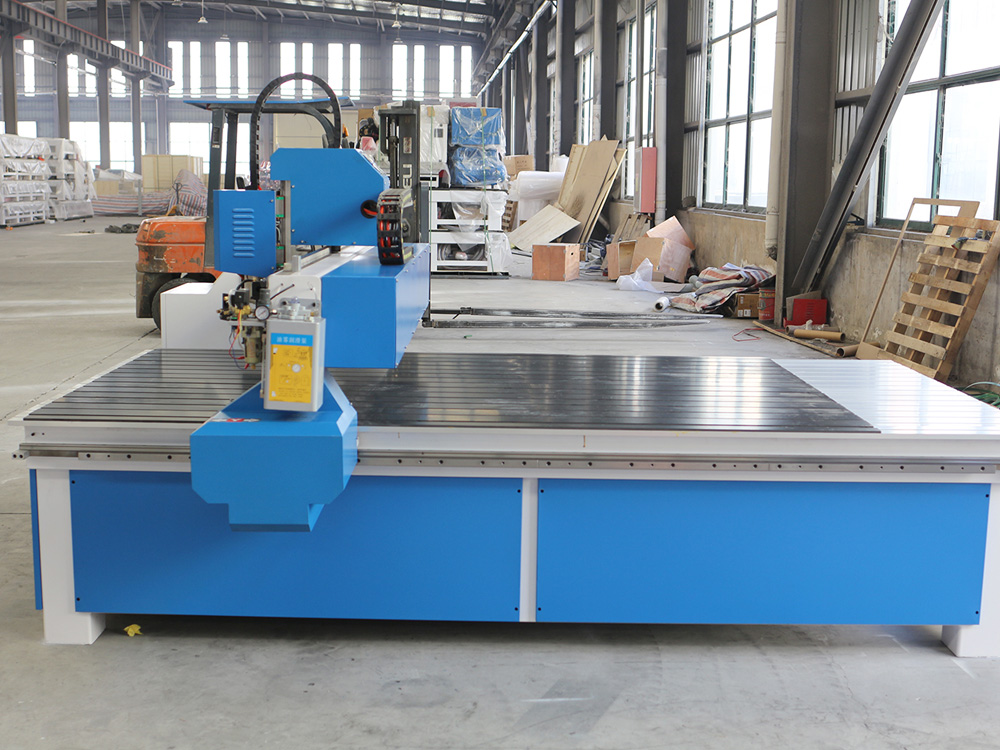

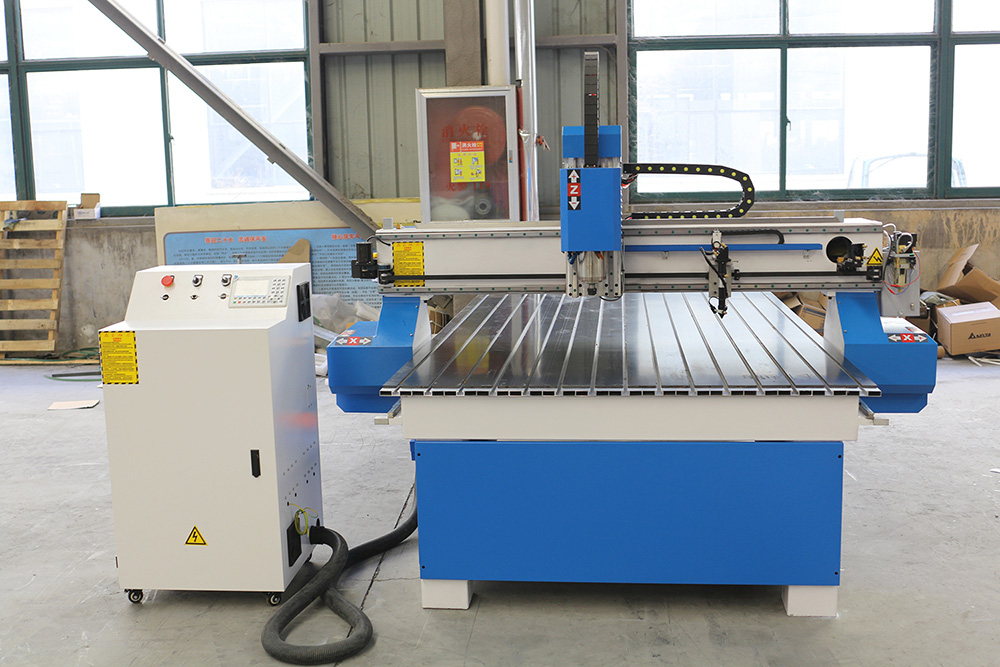

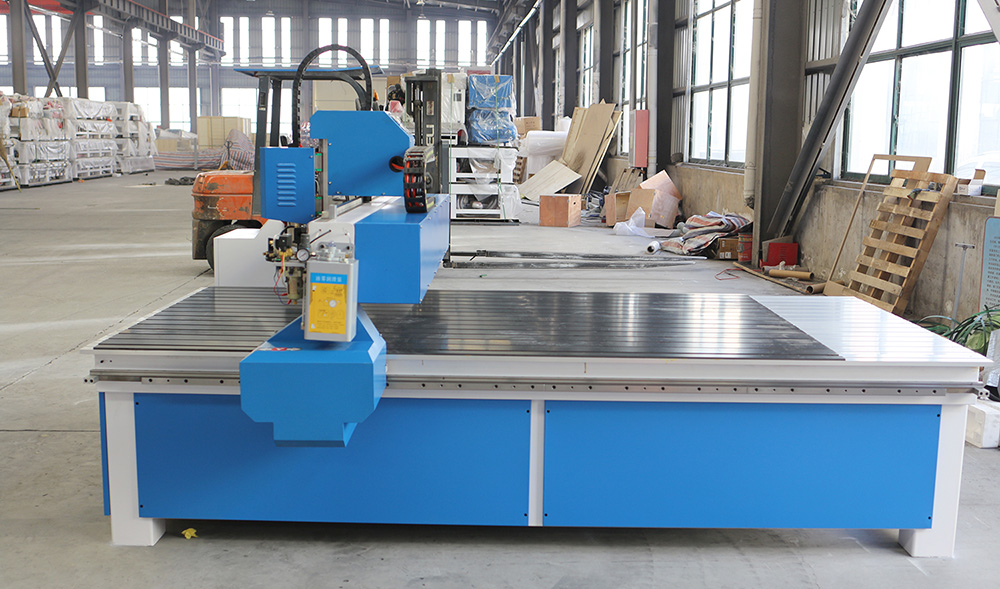

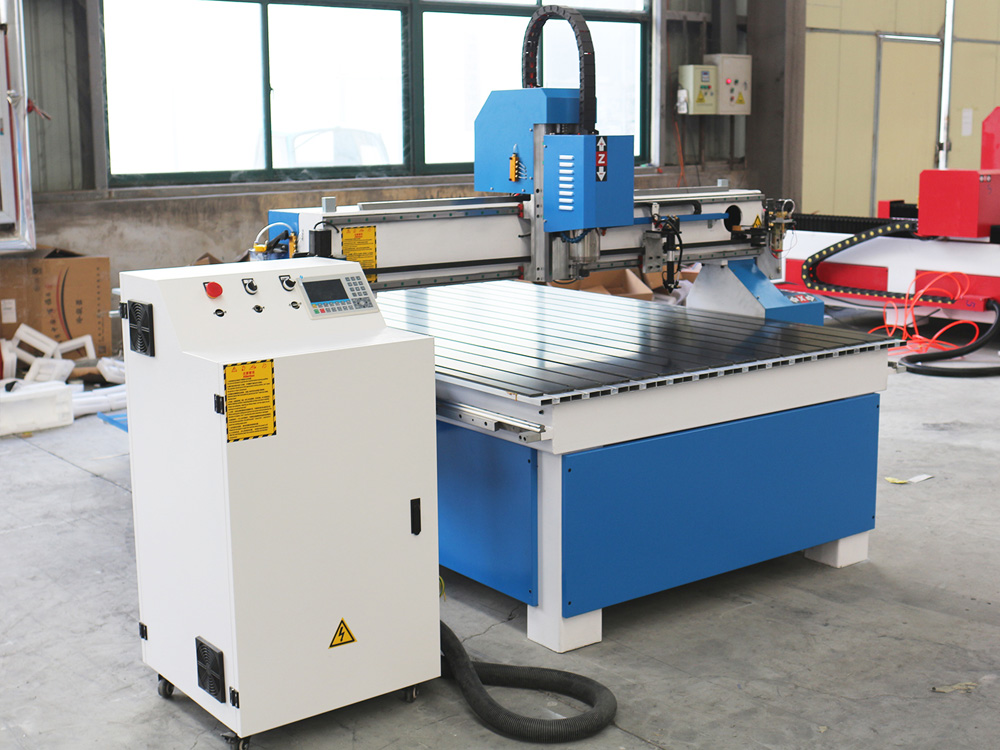

Product pictures

laser engraver and cnc router laser and router cnc machine cnc machine with laser and router cnc router with laser engraver laser engraver for cnc router

Samples

laser head for cnc router samples

Company Profile

China cnc router factory

cnc router machine

large cnc router

When machine using note

◊ Operators need wear goggles when the laser head is working.
◊ When not use the laser head, should cover it to prevent dust.
◊ Clean the laser head and reflector regularly.
◊ After switching the laser head and CNC spindle, the Z-axis zero point needs recalibrate.
◊ Correctly select the control system to avoid parameter conflicts.

FAQ

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
