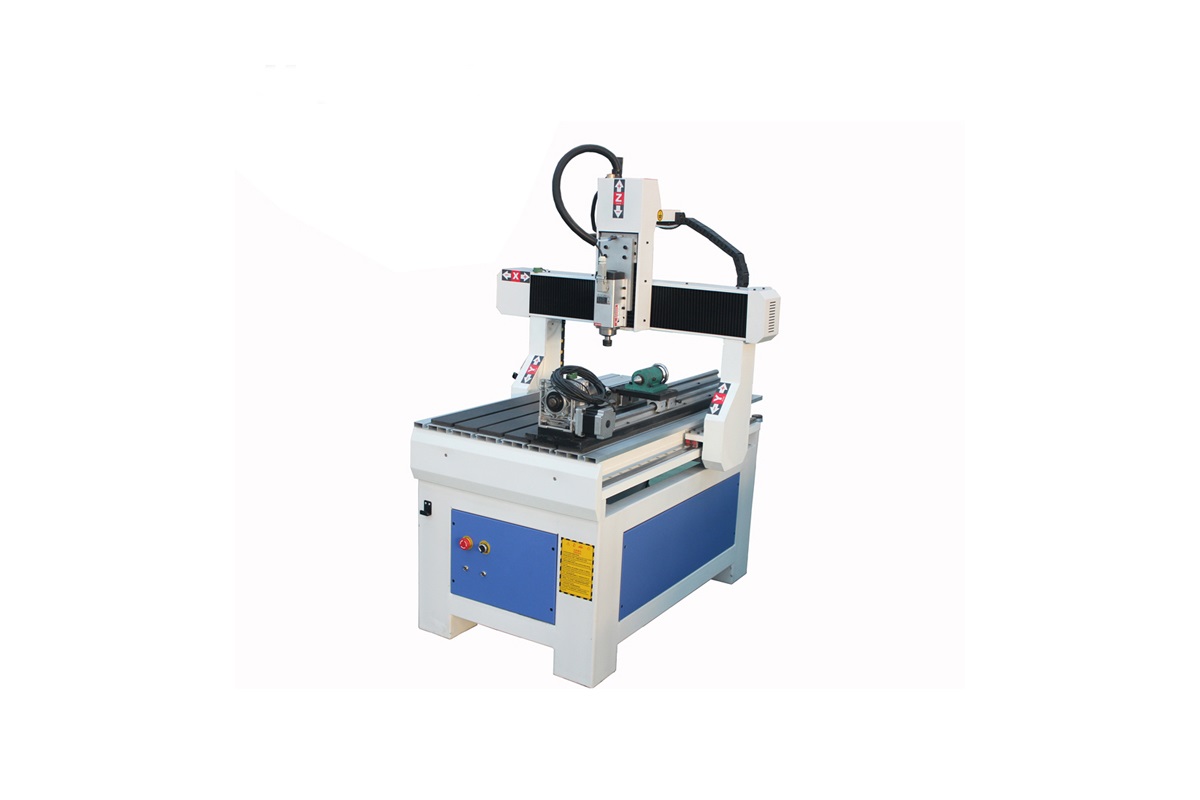

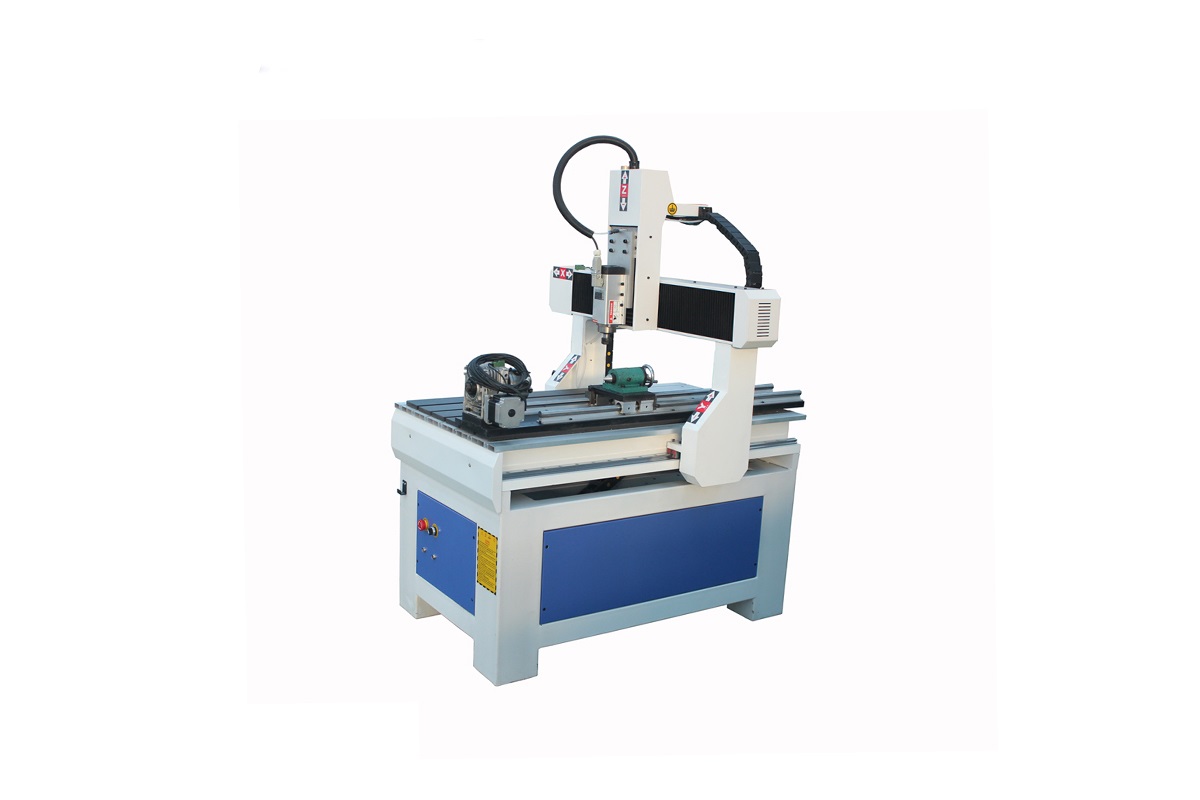

cnc router 4 axis rotary

Characteristic

1.high accuracy ball bearing guide screw of taiwan,minimize the slit.

2.imported linear rail,self lubricating glide.

3.our routers have the features of recarving after stop and the power failure may be restored.

4.unique preservation way of the zero point.

5.use for long time and no distortion.

6.this type is suitable for advertisement,wood engraving. It with rotary axis, suitable for engraving cylinder material.

 Performance parameter

number Description parameter
1 XYZ working area 600*900*200mm
2 Table size 740*1120mm
3 XYZ travel positioning accuracy ±0.01mm
4 XYZ repositioning positioning accury ±0.01mm
5 Gantry cast-aluminium
6 lathe structure casting iron
7 drive system X-Y axis Ball screw
8 drive system Z axis Ball screw
9 Spindle power 1.5KW
10 Max velocity 8m/min
11 Max working speed 6m/min
12 Spindle speed 0-24000rmp
13 work mode Stepper
14 Working voltage AC220V
15 Command language G code
16 Interface USB or Parallel
17 Operating system DSP/Mach3/Ncstudio
18 Flash memory 128
19 X-Y resolution 0.025mm
20 Software environment Wentai type3 artcam
21 Running environment Temperature:0-45°C
22 Packing size 1550*1140*900mm
23 Net weight 200kg
24 Gross weight 250kg

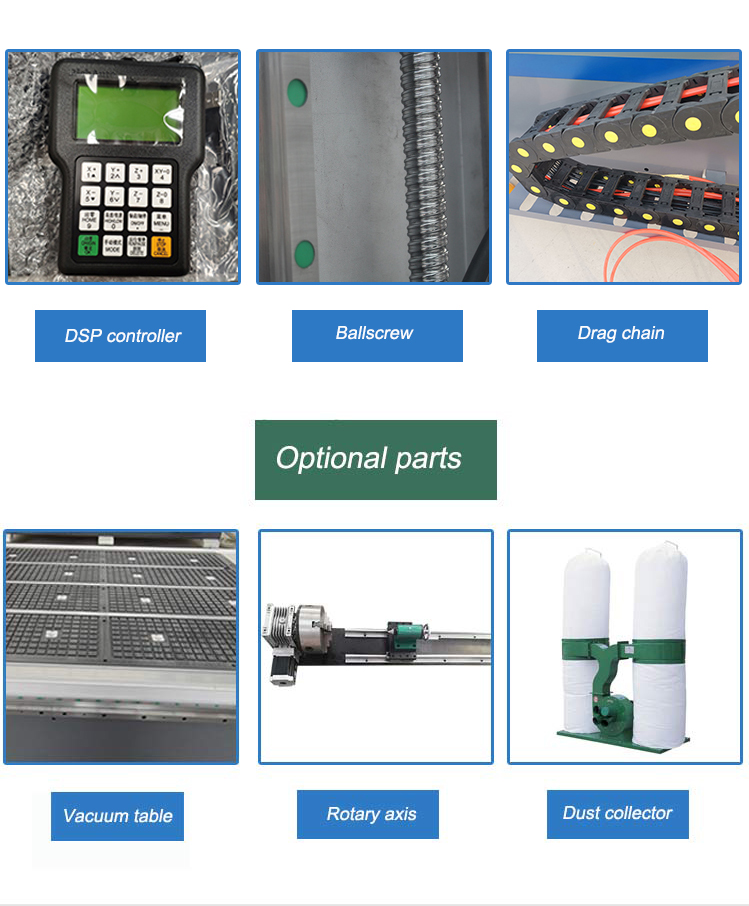

Main Parts:

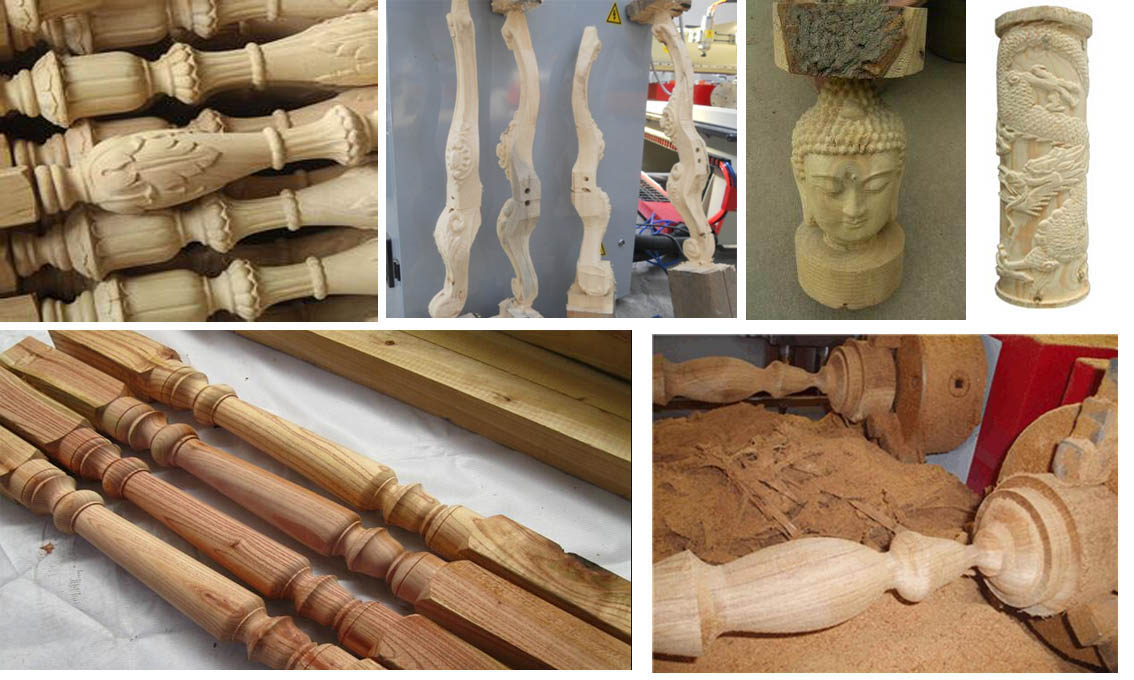

Working Samples:

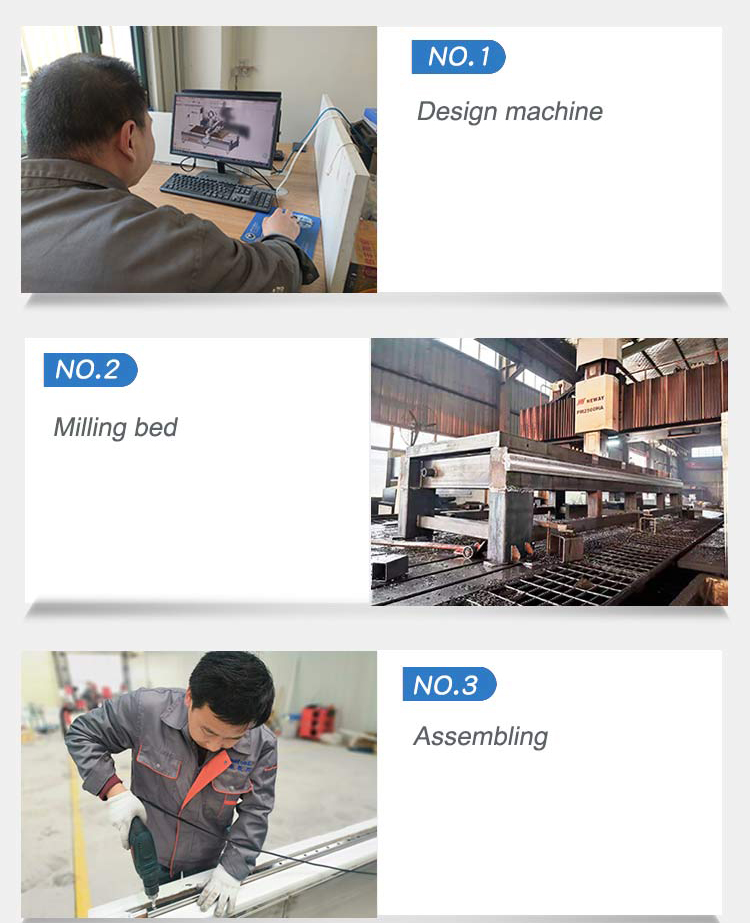

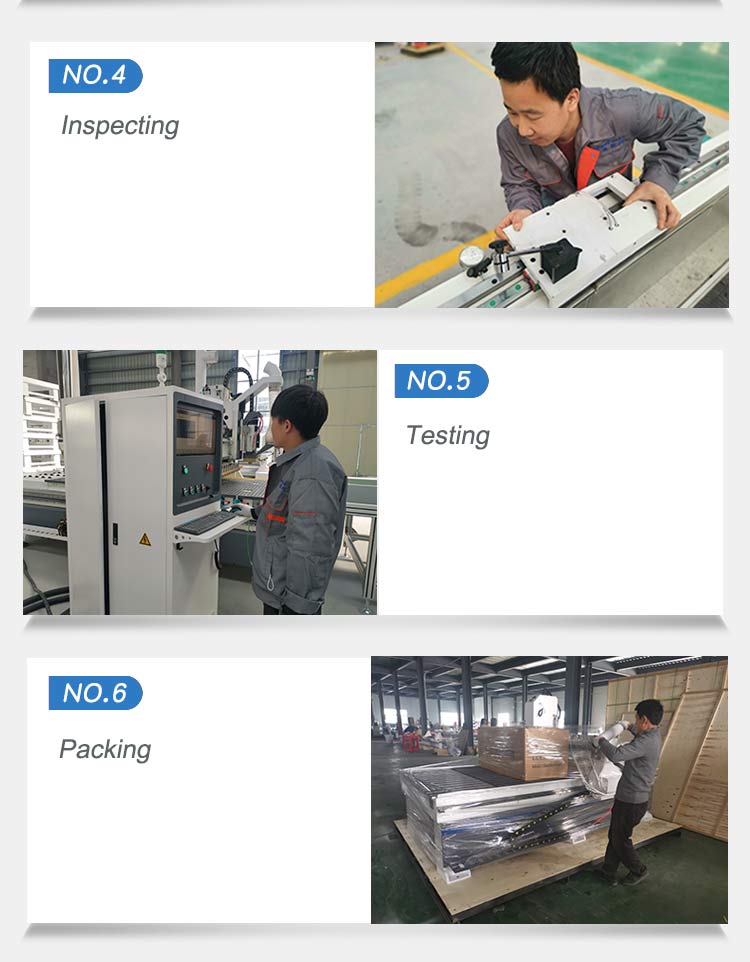

Producing Processing:

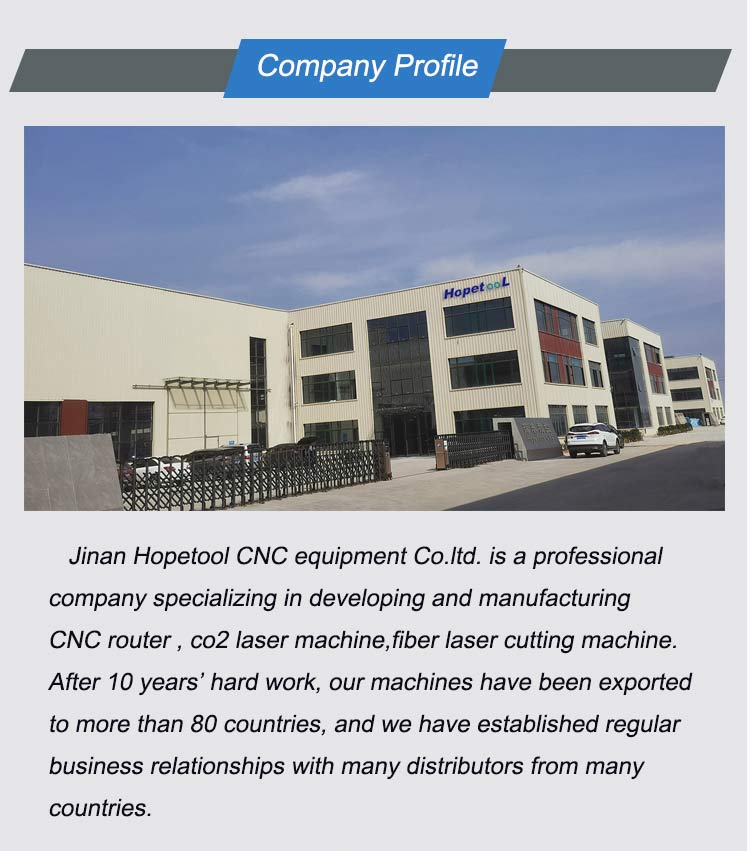

Company Profile:

























Jinan Hopetool CNC Equipment Co.Ltd. is located in Jinan, Shandong Province, China. The company integrates production and trade, and has ten years of production experience. Its main products include CNC routes, laser machines, fiber laser cutting machines, etc. Our products have complete CE, ISO, SGS, high tech company certificate and other certificates, and we have export certificates, which can be sold all over the world.

























Certificate:

























Customer Photos:

































FAQ:

Q1.How to get the most suitable machine and best price

​Please tell the material you want to working on ? ​How to working on it ? Engraving ? Cutting ? Or other ? ​What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?
​The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.
Q3.What is the producing time after order?
​The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if ​you are busy ,we will have the special engineer to your country,but you need to bear some fee,like ​tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. ​The testing video and pictures will be available before delivery.

      Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
