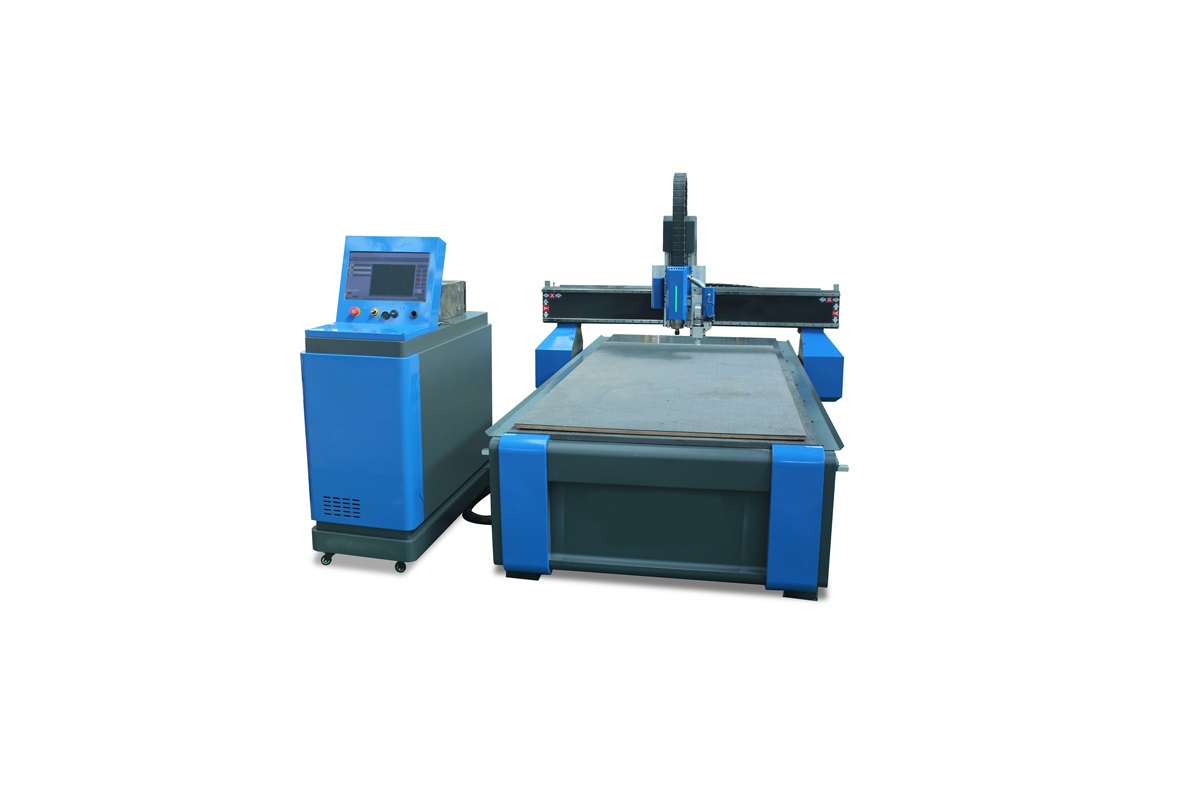

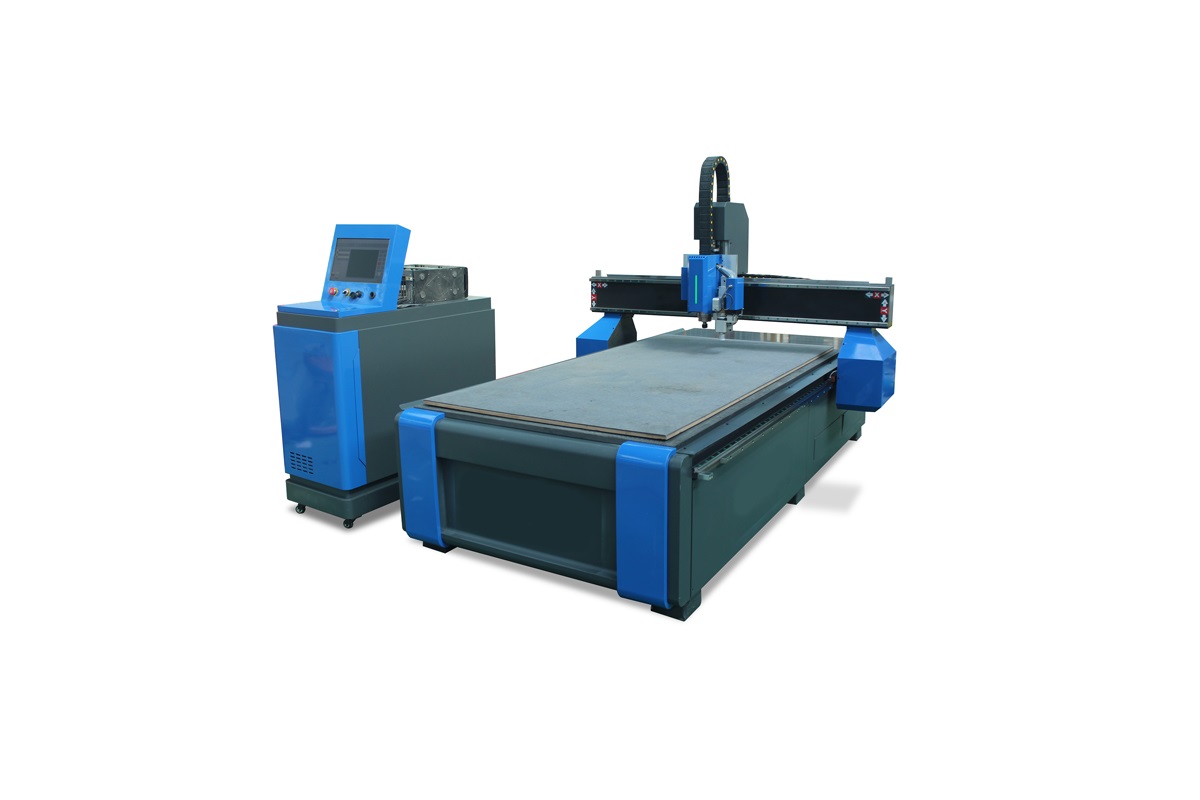

CNC router 1325 with Oscillating knife

Characteristic

1.This machine with two heads :spindle and oscillation knife ,so this machine can work different kinds material, the spindle can work wood,MDF,plastic etc, the oscillation knife can cut cardboard,KT board,corrugated board etc.

2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.

3.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.

4.auto oilling system ,easy to operate by pressing one key.

5.seperated control system makes operation easily,

6.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min.

7.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient.

Performance parameter:

number Description parameter
1 XYZ working area 1300*2500*200mm
2 Table size 1310*3000mm
3 XYZ travel positioning accuracy ±0.01mm
4 XYZ repositioning positioning accury ±0.01mm
5 Table surface Bakelite sheet
6 Gantry  Steel
7 drive system X-Y axis Rack actuation
8 drive system Z axis Ball screw
9 Spindle power 3.2/5.5KW
10 Max velocity 50m/min
11 Max working speed 25m/min
12 Spindle speed 0-24000rmp
13 work mode Step(optional servo)
14 Working voltage AC220/380V
15 Command language G code
16 Interface USB  or parallel port
17 Operating system DSP
18 Flash memory 128
19 X-Y resolution <0.025mm
20 Software environment Wentai type3 artcam
21 Running environment Temperature:0-45℃
22 Packing size 3300*1900*1900mm
23 Net weight 1000kg
24 Gross weight 1200kg

 W

Sample:

DCF7X 1

Working Samples:

FAQ:

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
