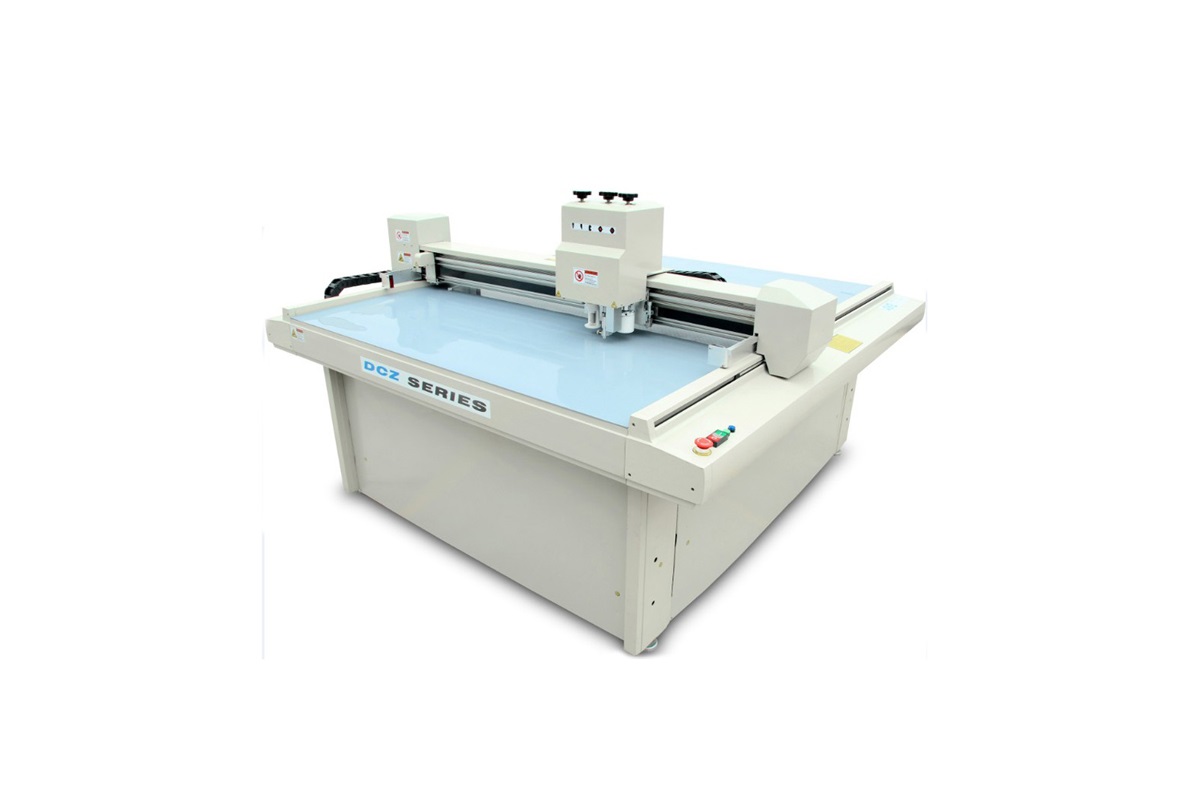

Carton box cutting machine DCZ50



Detail



DCZ50 series carton sample making machine is new developed carton sample making system on DCZ30 series basis. Dut to the four tool head design, the functions improves a lot comparing with original one. DCZ50 series sample making machine make cutting, creasing, drawing available undertaking machine’s stable, high speed, high accuracy. it could meet sample making or small production require of packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer,, die cutting manufacturer. it could cut corrugated board 、chipboard、foam board、plastic board、thin wood board、leather、cloth, etc. we are great reputed by customers from packaging、advertisement、printing、die cutting、electron、gasket、sign industries.

The main character of DCZ50 is as following
·Four tools include oscillating knife tool, drag knife tool, creasing tool, plotting pen.
·Carton and box can reach to perfect cutting performance
·Convenient half cut set to achieve perfect half cutting performance
·Safety guard system is equipped to avoid injury
·Brunt model sold well in EU and USA market



Specification



Mode DCZ502516 DCZ501713 DCZ501310
Effective cutting area 2500*1600mm 1700*1300mm 1300*1000mm
Configuration Oscillating knife、pen、creasing wheel、drag knife
Max aped 1000mm/s
Smallest cutting diameter 6mm
Maximum cutting thickness 15mm
Control line and driver Servo
Precision ≤0.1mm
Vacuum 5.5kw
Data form HPGL、DXF、PDF
Voltage 220v±10%50Hz
Data port PCI port
Data Transmission speed 10MB/s
Input cushion area 32MB
Occupy dimension(L*W*H) 3165*2545*1250mm 2365*2245*1250mm 1960*1935*1250mm
Note Other size can be customized.



Tools



DCZ50 series is equipped with drag knife tool, it enrichs cutting tools application and improve the machine’s capability. It saves time of tool changes, meanwhile the through cutting and half cutting could be done on one sample making work.
The machine is equipped with plotting pen、oscillating cutting tool、creasing tool、drag knife tool which could meet customers’ different requirement. The heavy duty drag knife tool and the video registration system could be selected as an option to special materials of the sign making industry and for automatically cutting of the printed materials
