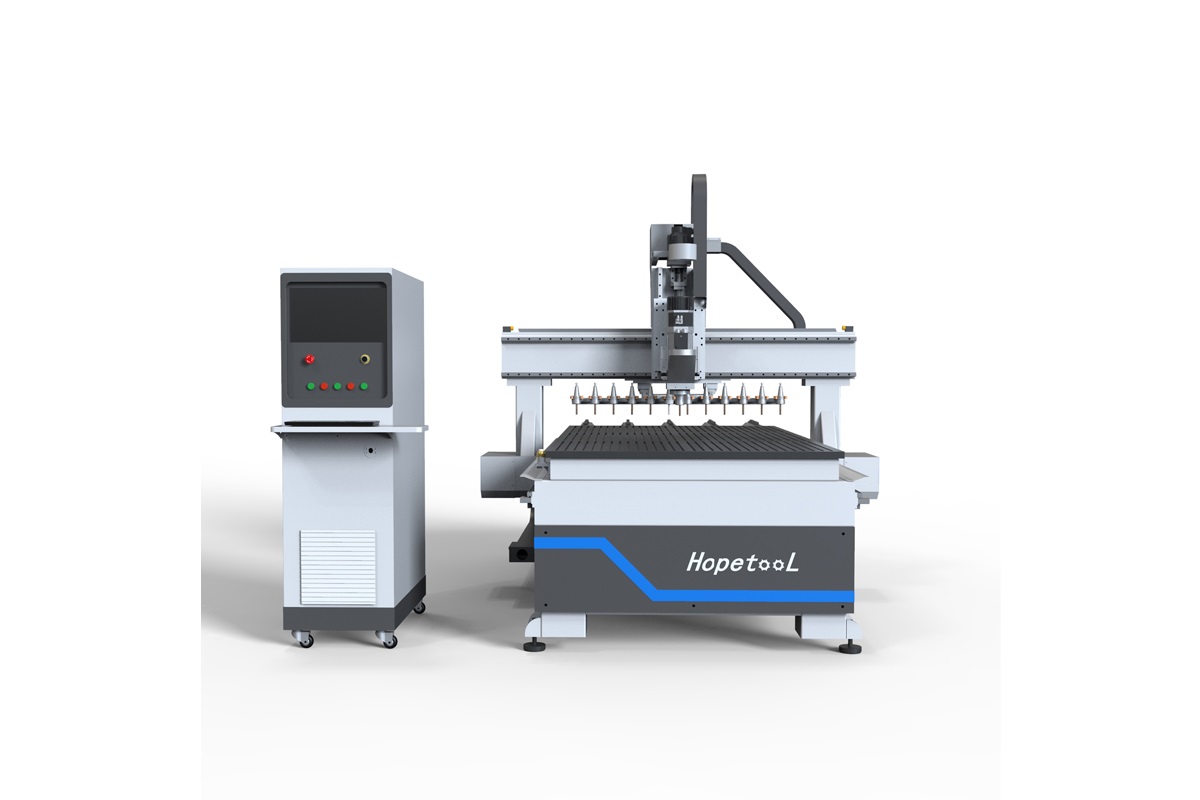

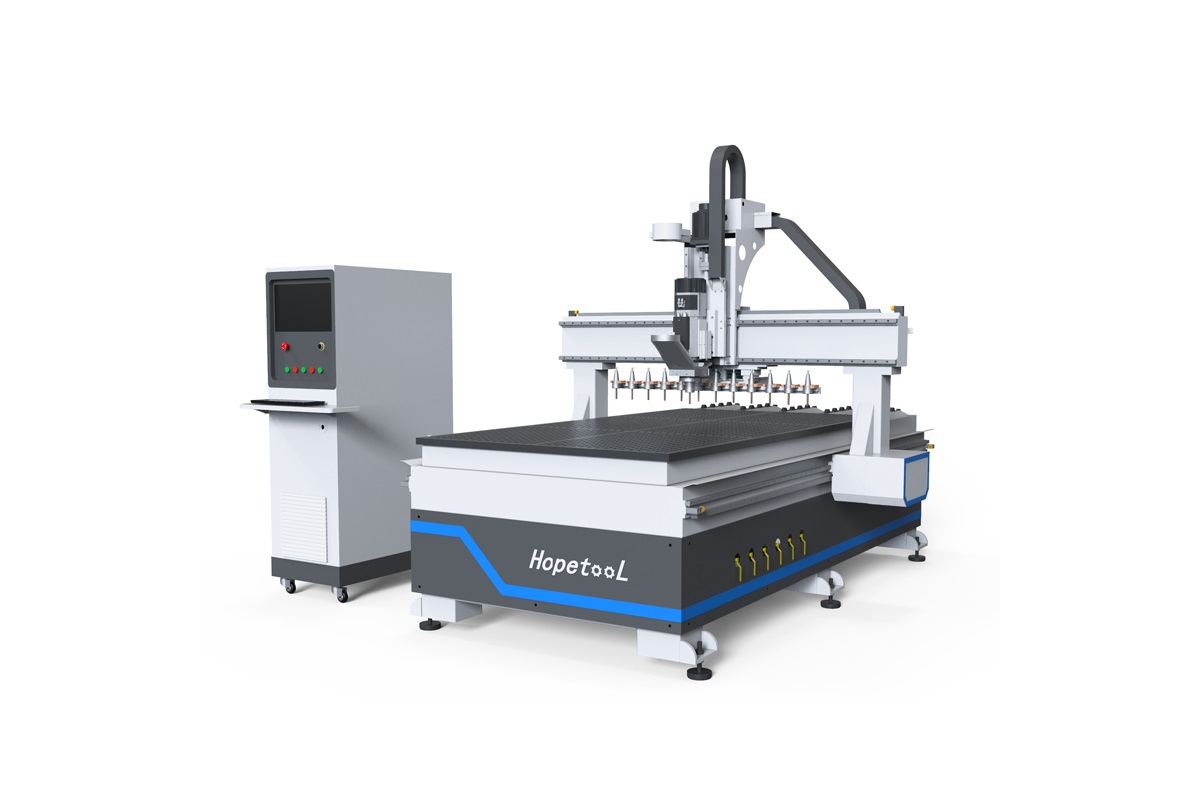

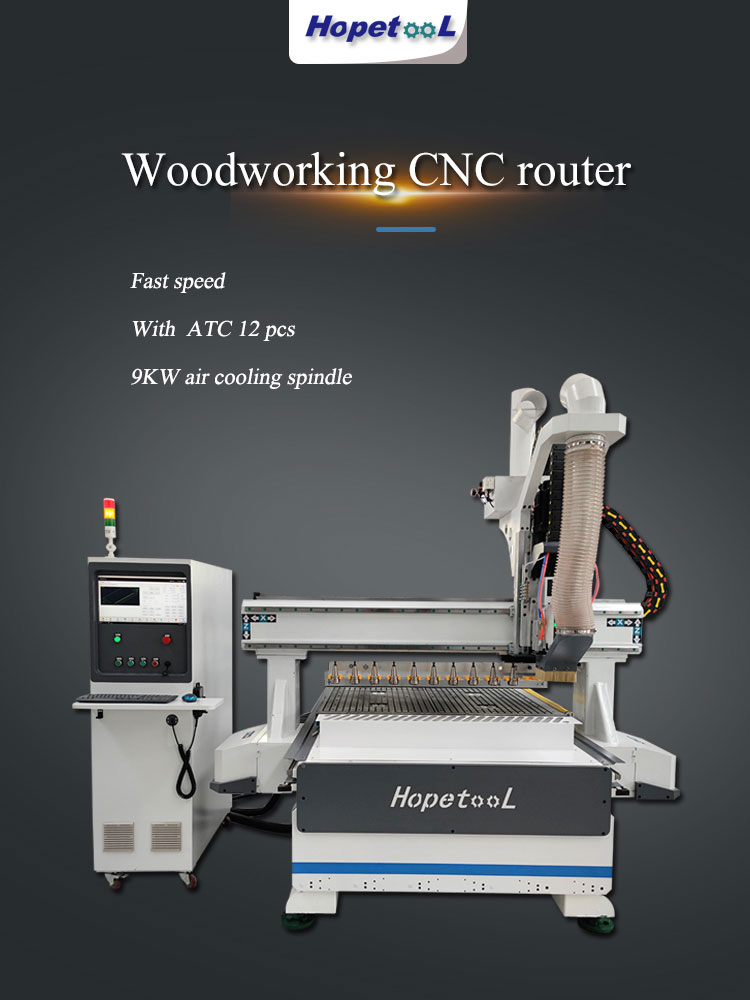

Characteristic:

1)This machine is linear Auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump with high efficiency.

2)Adopt Japan yaskawa servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .

3)Italy air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high precision and long lifetime.

4)Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel structure

5)All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high precision.

6)Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam,Typ3,UG,Artcam,Caxa).

7)6 zones vaccum table, it is a professional wood door making and furniture making machine.

performance parameter:

NO.	Discription	Parameter
1	X,Y,Z Working Area	1300X2500X200mm/1500X30000X200mm/2000X3000x200mm
2	Table Size	1440X3040mm/1640x3040mm/2140x3040mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Positioning Accuracy	±0.025mm
5	Lathe Structure	Welded Strucutre
6	X, Y Structure	Gear Wheel Transmission, Shaft Linear Bearings
7	Z Structure	Ball Screw, Shaft Linear Bearings
8	Max.Consume power	20KW
9	Max.Speed	0-60000mm/min
10	Max.Working Speed	0-25000mm/min
11	Spindle Power Motor	6/9KW HSD Spindle ATC or Chinese spindle
12	Spindle Speed	0-24000RPM
13	Working Mode	Servo system
14	Working Voltage	AC380V/50/60Hz , 3PH
15	Command	G Code, *uoo, *mmg, *plt
16	Operating System	SYNTEC System
17	Interface	Internet line
18	Flash Memory	512M
19	Collet	ER32
20	X,Y Working Delicacy	<0.01mm
21	Software	Type3 software, Wentai software,Artcam software
22	Running circumstance	Temperature: 0°C~45°C, Relative humidity: 30%~75%
23	Packing Size	4000x2150x2200 mm
24	Net Weight	2000KG
25	Gross Weight	2300KG

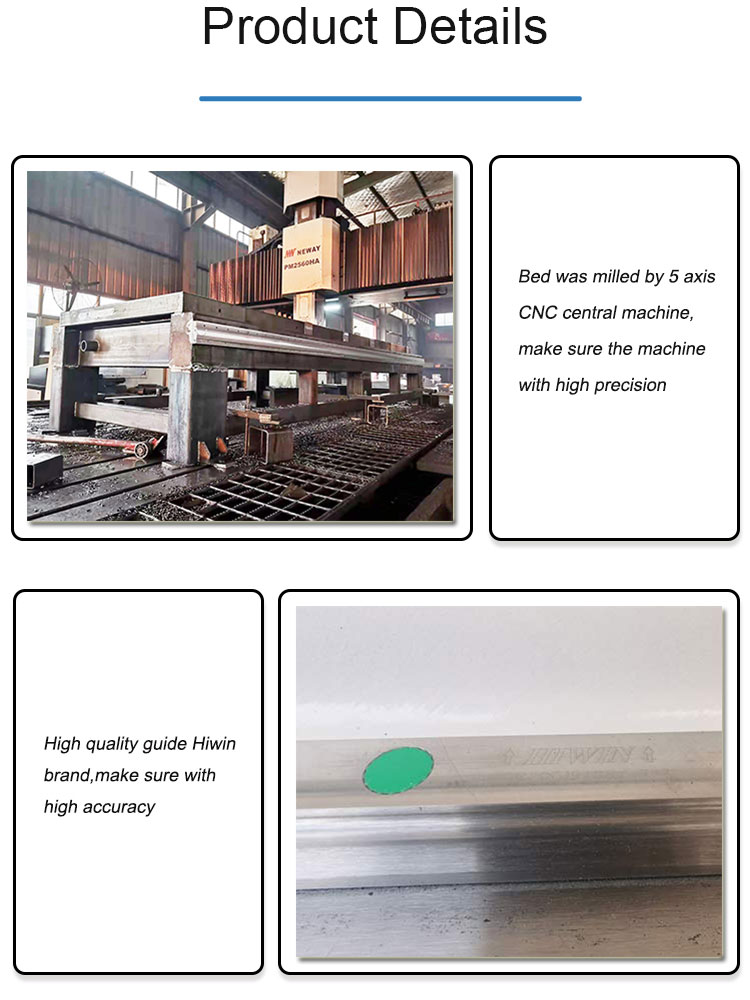

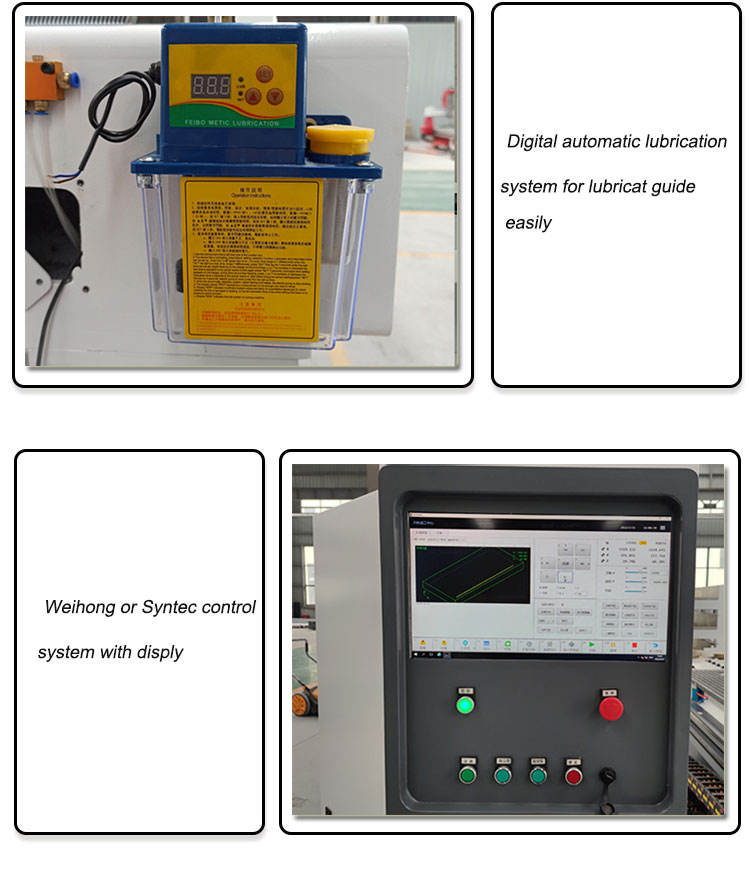

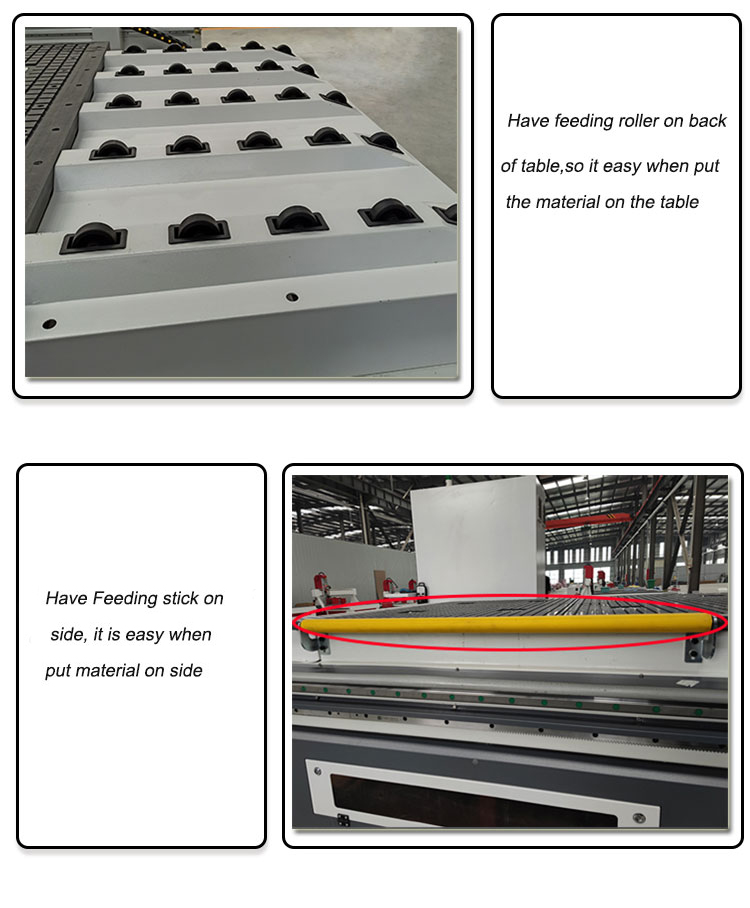

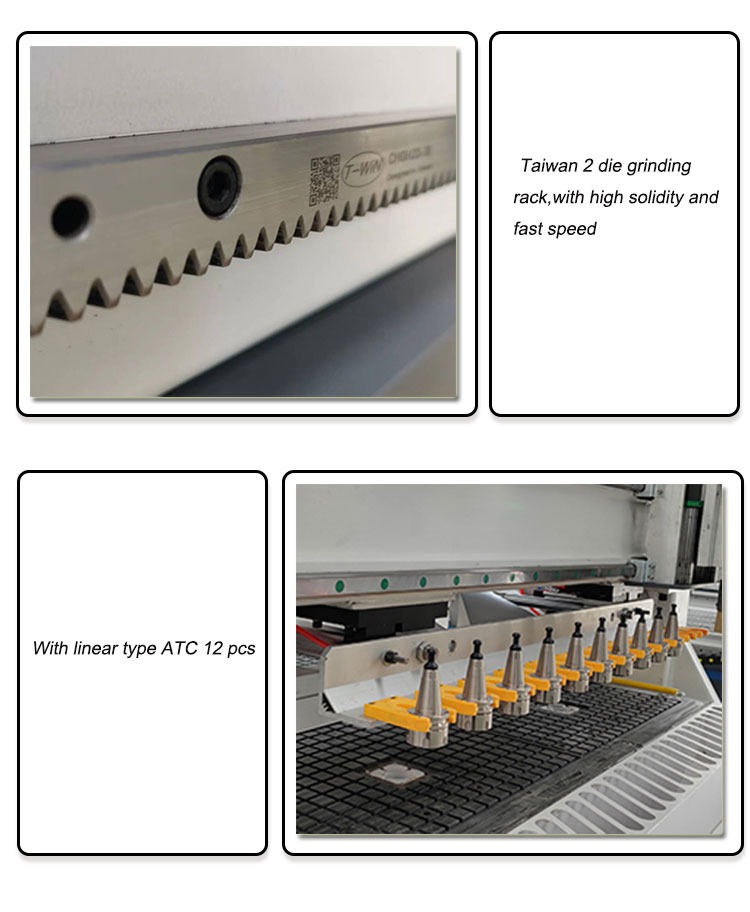

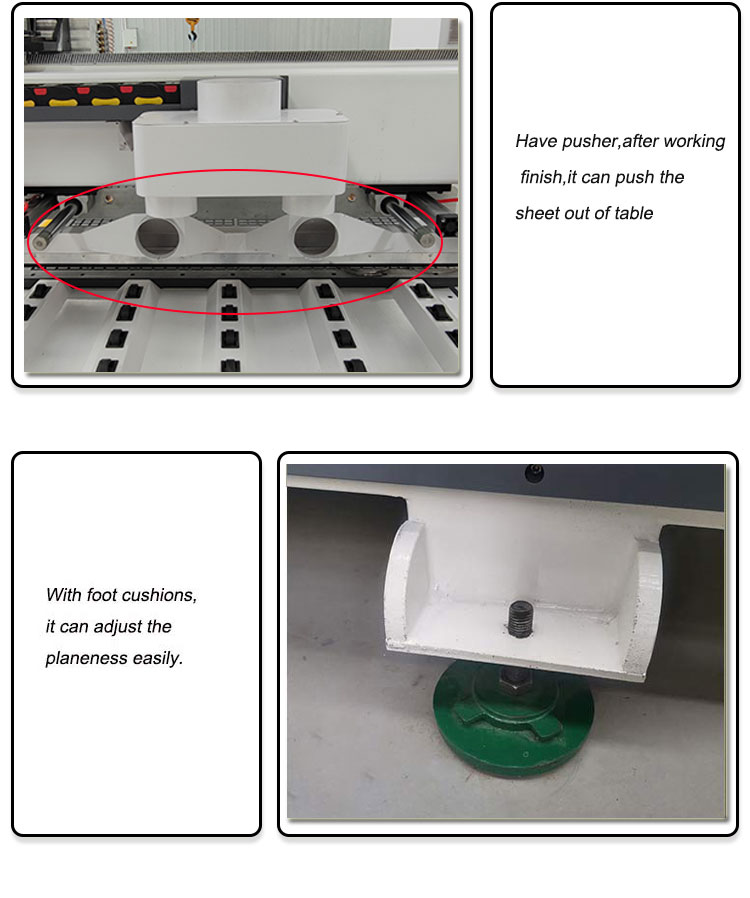

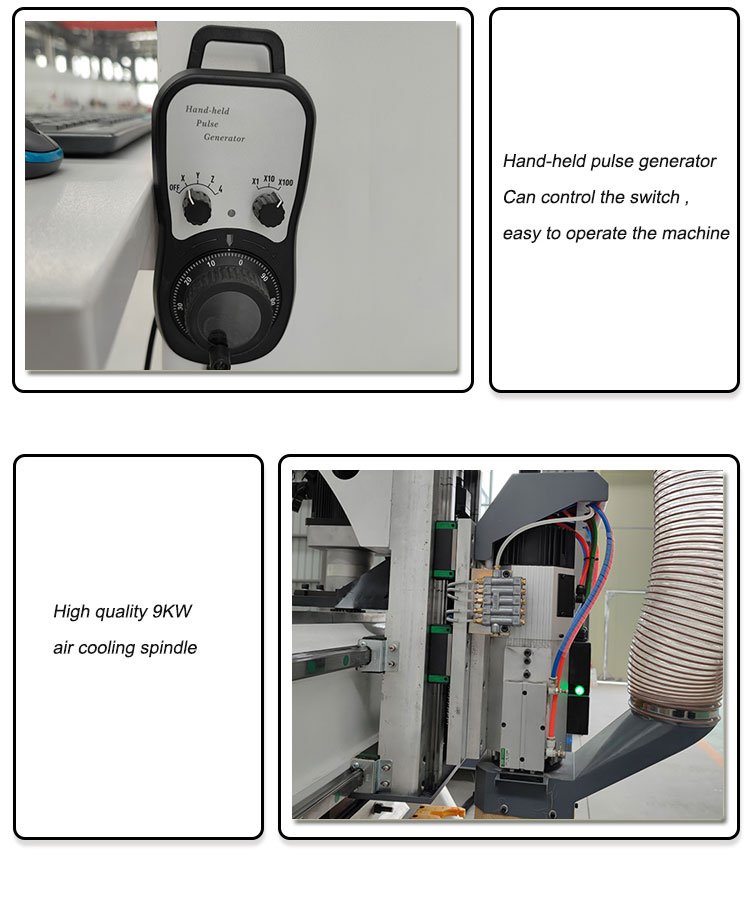

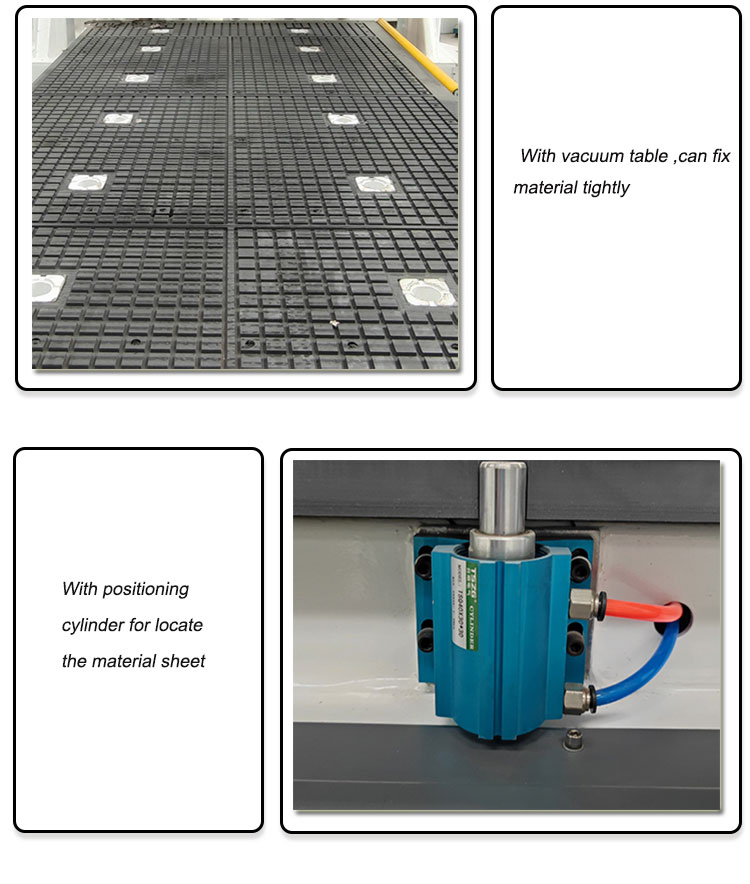

Machine Parts：





Working Samples：



FAQ：

Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

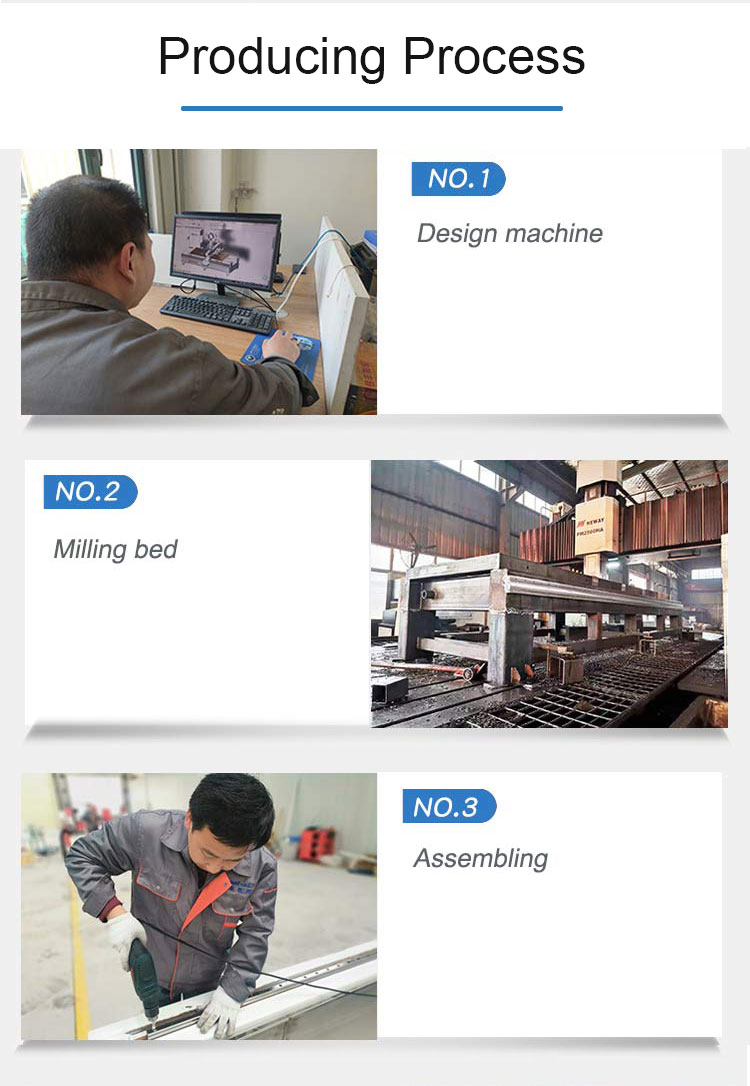

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
