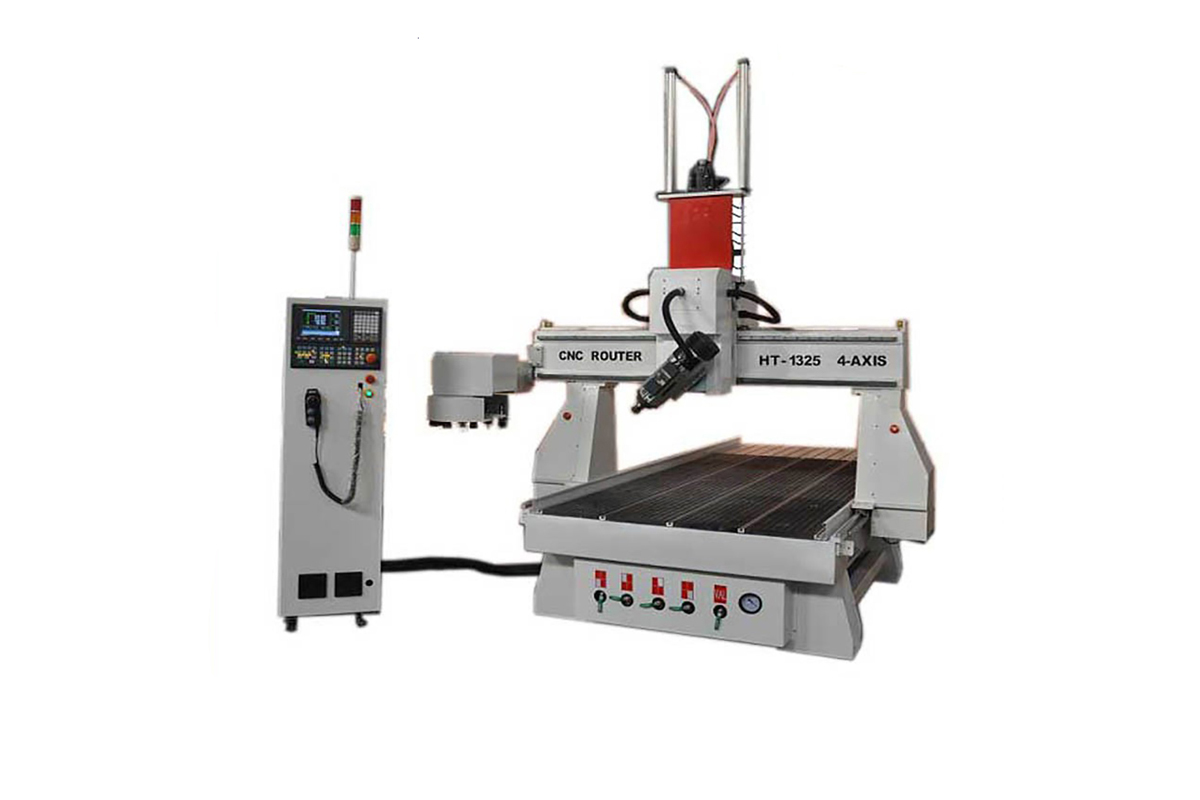

4 axis cnc router 1325

Machine Introduction

This machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.

With Syntec EZ-4ME control system, Yaskawa servo motors, HSD air cooling spindle, Delta inverter ,Becker vacuum pum all components are from global leaders.

With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.
With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration.

Perfomance Parameters
NO. Description Parameter
1 X,Y,Z Working Area 1300x2500x(300-700mm)*±180°
2 Table Size 1300×3000mm
3 X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
4 X,Y,Z Repositioning Accuracy: ±0.01mm
5 Table Surface Vacuum and  T-slot Combined (Option: T-slot Table)
6 Frame Big Steel Tube Structure
7 X, Y Structure Helical rack gear , HIWIN Linear guide
8 Z Structure Imported Ball Screw , HIWIN Linear guide
9 Max. Power Consumption (Without Spindle)  4.2Kw
10 Max. Rapid Travel Rate 40000mm/min
11 Max. Working Speed 30000mm/min
12 Spindle Power HSD spindle 4.5kw( Italy ATC spindle for option)
13 Spindle Speed 0-18000RPM
14 Drive Motors Japan 850 W YASKAWA servo motor
15 Working Voltage AC380V/50/60Hz,3PH (Option: 220V))
16 Command Language G Code
17 Operating System SYNTEC Control System (model: EZ4M)
18 Computer Interface USB
19 Flash Memory 512M
20 Collet ER25
21 X,Y Resolution <0.01mm
22 Software Compatibility UG , Power mill
23 Running Environment  Temperature 0 – 45 Centigrade
24 Relative Humidity 30% – 75%
25 Packing Size 4.1*2.3*2.6m
26 N.W. 2500KG
27 G.W. 2800KG
28 Optional Parts Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
SIEMENS/DELTA/ Panasonic Servo Motors
Colombo Spindle
X:2.5m, Y:4m, Z:1.2m

Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.

Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.

      Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
