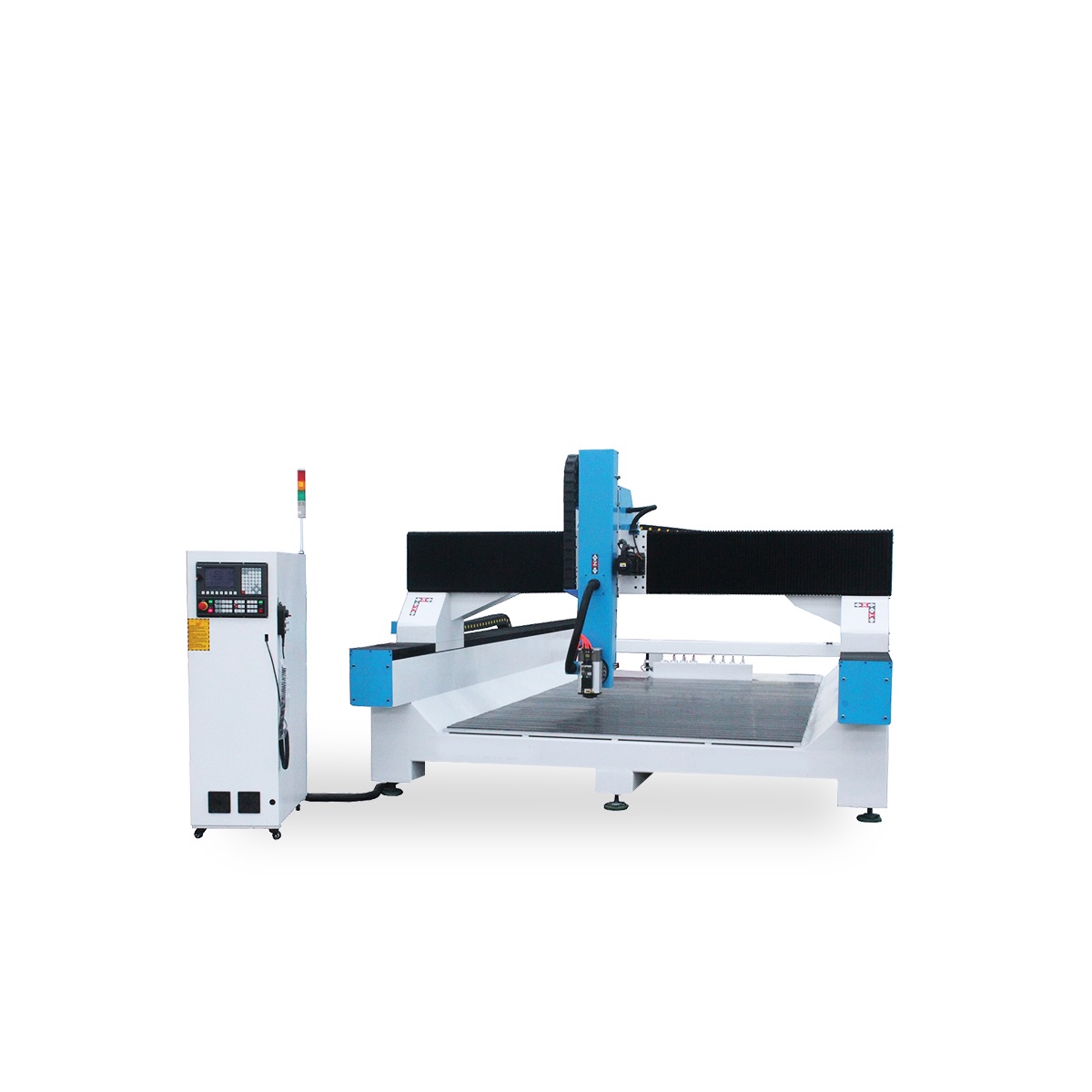

4 axis ATC CNC router

 characteristic

his machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.

With Syntec EZ-4ME control system, Yaskawa servo motors, HSD or Chinese air cooling spindle, Delta inverter.

With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.

With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration.

performance parameter

NO. Description Parameter
1 X,Y,Z Working Area 2000x3000x(300-700mm)*±180°
2 Table Size 2000×3500mm
3 X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
4 X,Y,Z Repositioning Accuracy: ±0.01mm
5 Table Surface Vacuum and  T-slot Combined (Option: T-slot Table)
6 Frame Big Steel Tube Structure
7 X, Y Structure Helical rack gear , HIWIN Linear guide
8 Z Structure Imported Ball Screw , HIWIN Linear guide
9 Max. Power Consumption (Without Spindle)  4.2Kw
10 Max. Rapid Travel Rate 40000mm/min
11 Max. Working Speed 30000mm/min
12 Spindle Power HSD spindle 4.5 or 9kw( Italy ATC spindle for option)
13 Spindle Speed 0-18000RPM
14 Drive Motors Japan 850 W YASKAWA servo motor
15 Working Voltage AC380V/50/60Hz,3PH (Option: 220V))
16 Command Language G Code
17 Operating System SYNTEC Control System (model: EZ4M)
18 Computer Interface USB
19 Flash Memory 512M
20 Collet ER25
21 X,Y Resolution <0.01mm
22 Software Compatibility UG , Power mill
23 Running Environment  Temperature 0 – 45 Centigrade
24 Relative Humidity 30% – 75%
25 Packing Size 4.1*2.3*2.6m
26 N.W. 2500KG
27 G.W. 2800KG
28 Optional Parts Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
SIEMENS/DELTA/ Panasonic Servo Motors
Colombo Spindle
X:2.5m, Y:4m, Z:1.2m

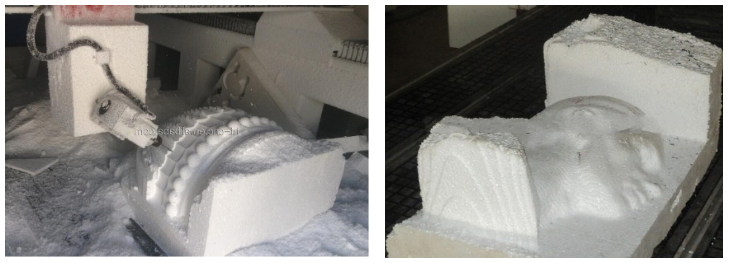

Working Samples:







































Producing Processing:























































































































































Company Profile:
