4 axis atc cnc router
The 4 axis atc cnc router can automatic change tools to work, reducing labor input. which can improves the processing speed. The machine working area is 1300x2500mm, and vacuum work table and LNC control system to ensure fast and accurate processing.
Main Features
- 6MM Steel tube welded frame, multi-support structure, structure stable and does not deform.
- The gantry is reinforced with steel plates to reduce vibration during work and achieve high processing accuracy.

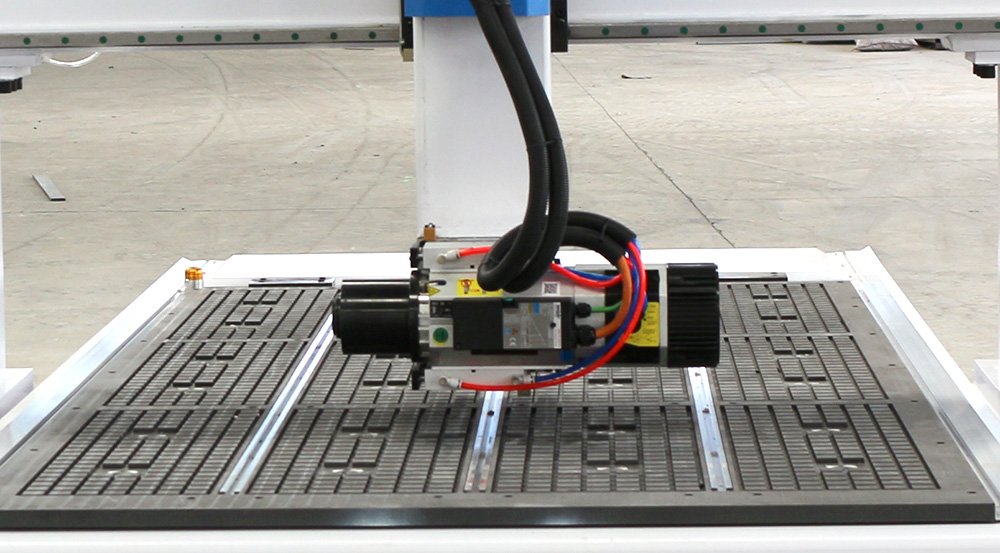

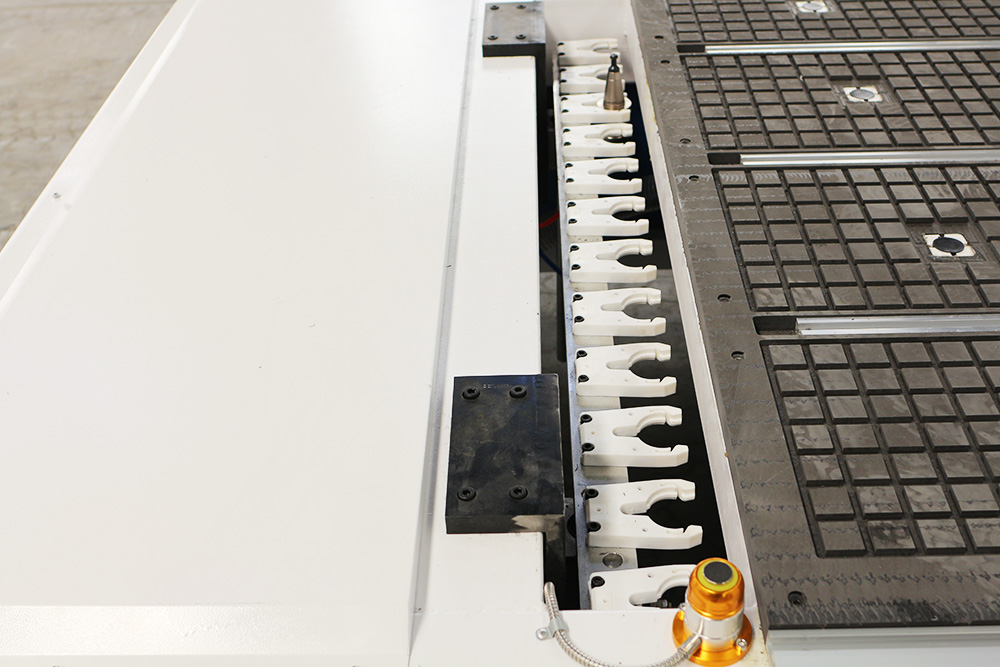

- The 9KW air-cooled spindle can automatic change tools and can swing 180 degrees.
- The 4 axis atc cnc router use servo motor , working fast and high precision.
- Use vacuum work table, which is fixed by air adsorption, and can also select an aluminum work table.
- Taiwan LNC control system ,with stable system operation and automatic input path processing.
- The three axes use HIWIN guide rails, which are stable and fast.
- The Z axis uses TBI’s ball screw drive, which has high processing accuracy.
Main parameters
● Working area ：1300mmx2500mmx200mm.
● XYZ travel positioning accuracy: ≤0.01mm.
● XYZ repositioning positioning accury: ≤0.025mm.
● Table surface: Vacuum work table.
● Drive system X-Y axis: Guide rails and rack.
● Spindle: 9KW air-cooled spindle,swing and atc change tools.
● Spindle speed: 0 – 24,000 RPM.
● Collet type: ER20.
● Max velocity: 50m/min.
● Max working speed: 25m/min.
● Work mode: Servo motor.
● Working voltage: AC220V/380V.
● System: LNC control system(optional SYNTEC system).
● Net / Gross weight: 1600kg / 1800kg.

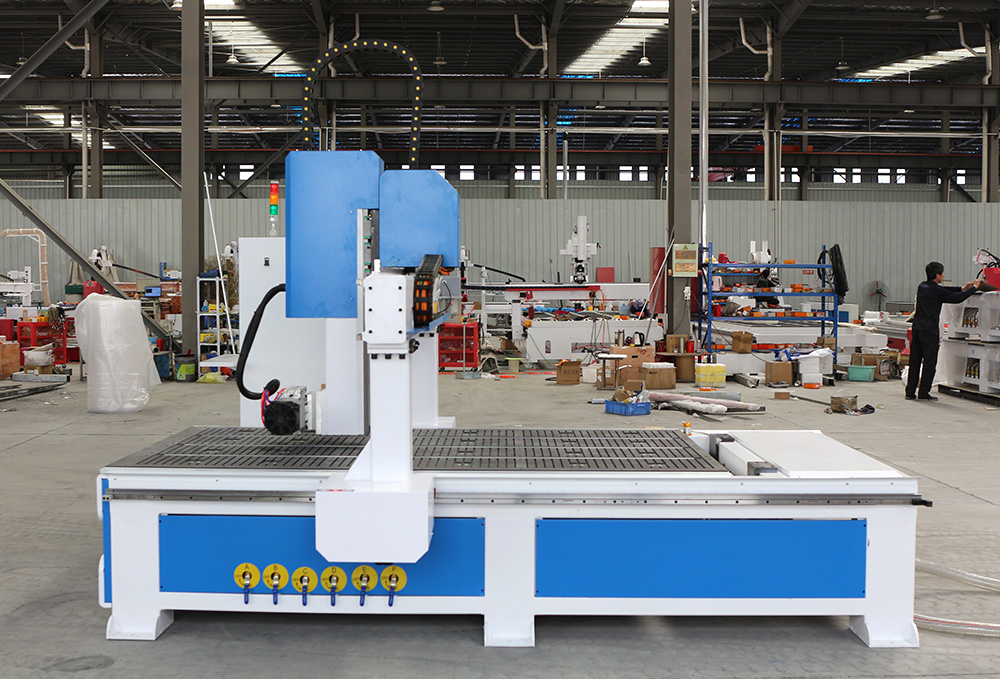

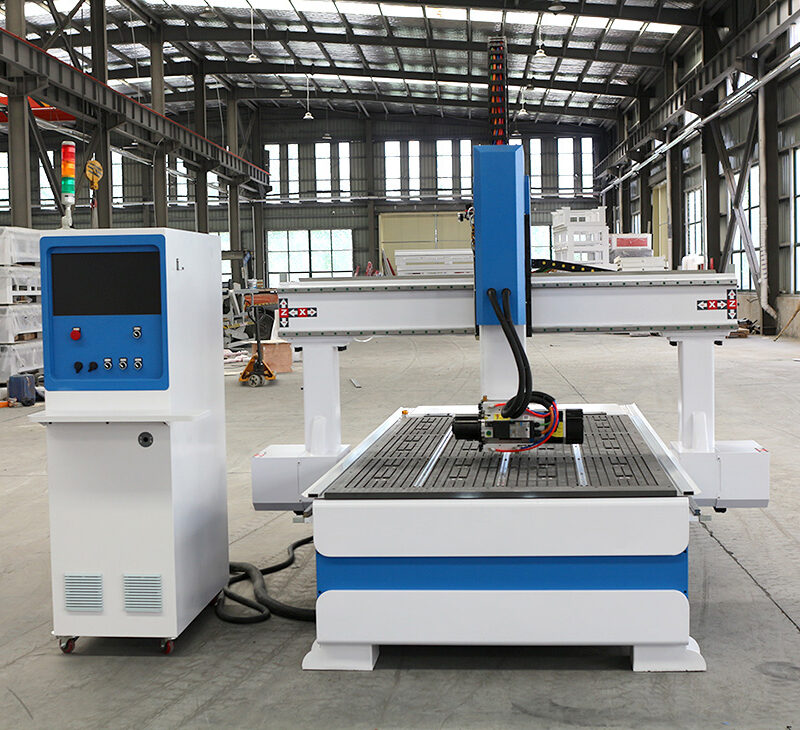

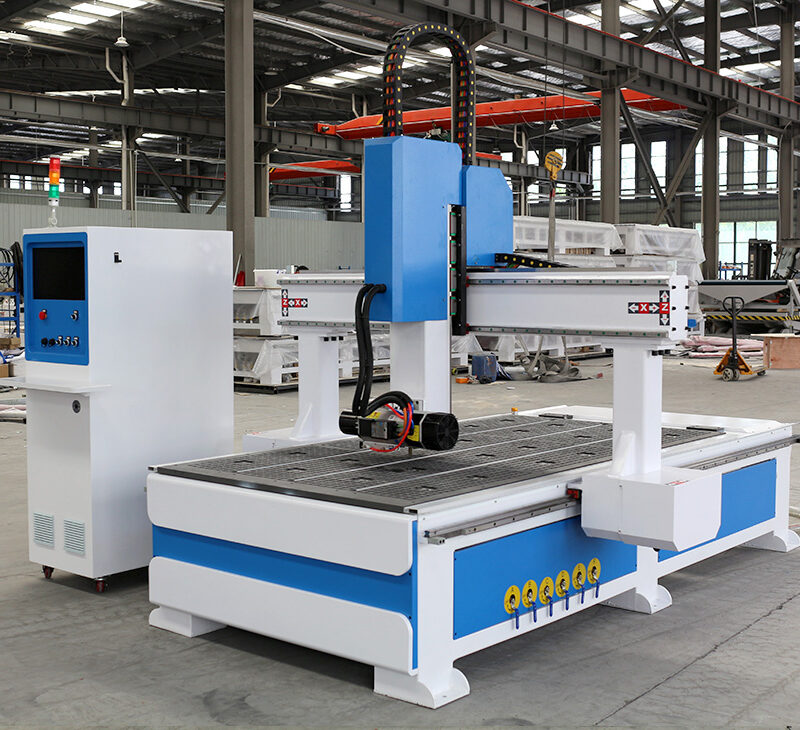

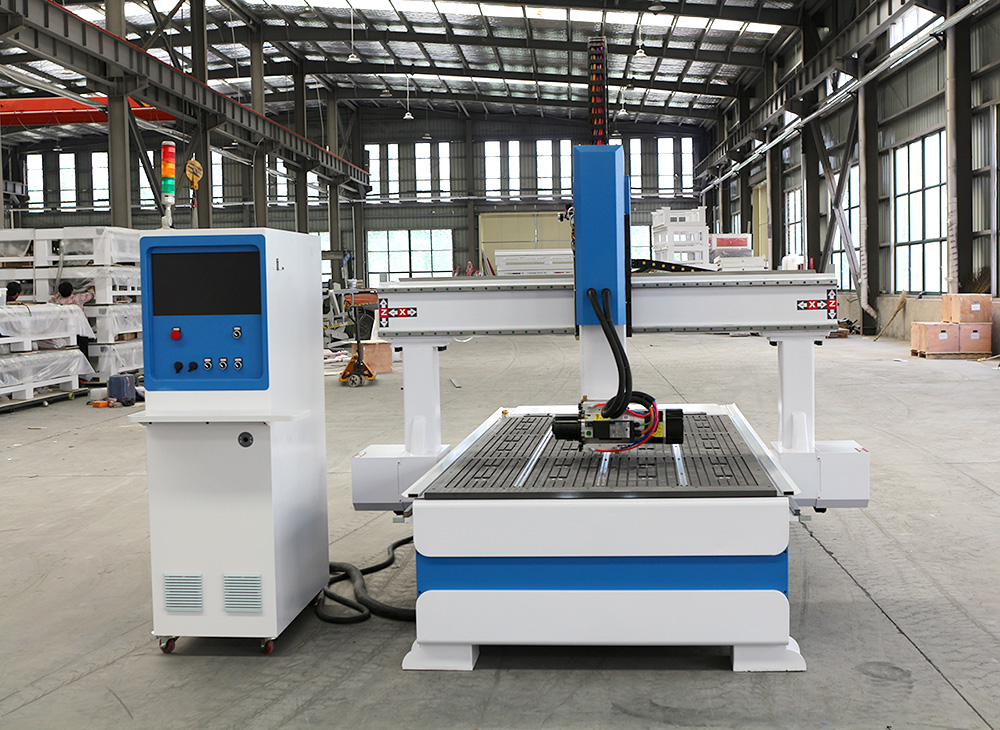

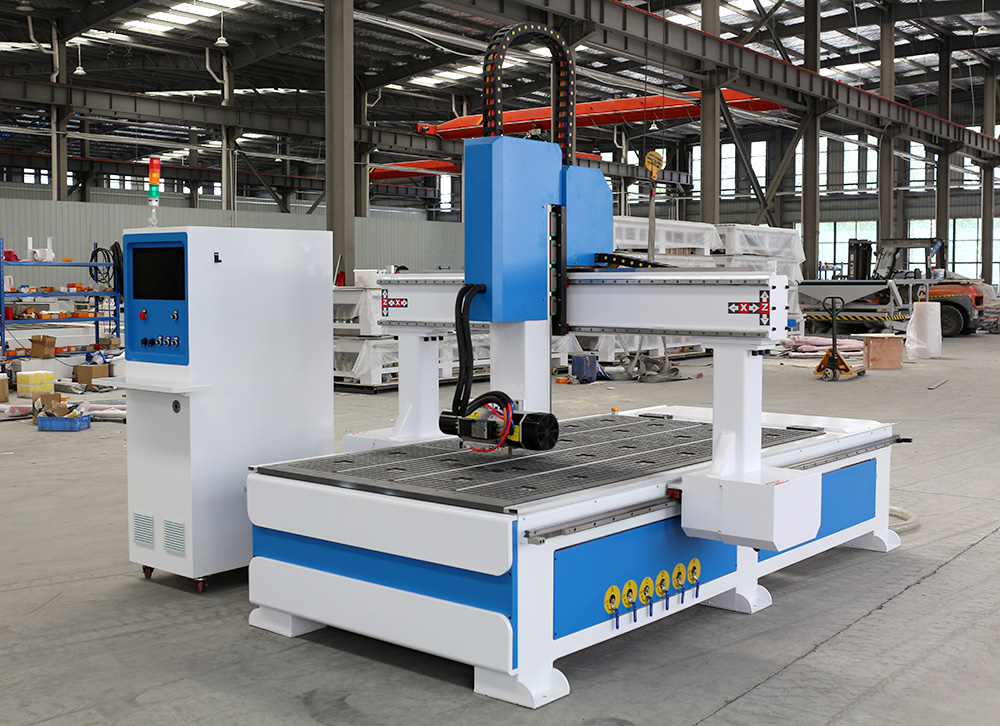

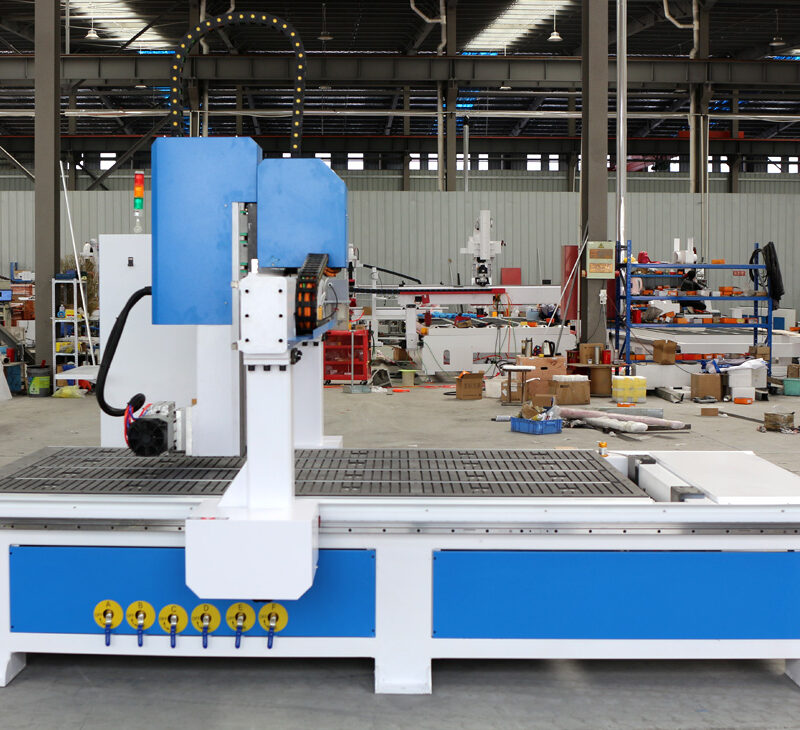

Product pictures

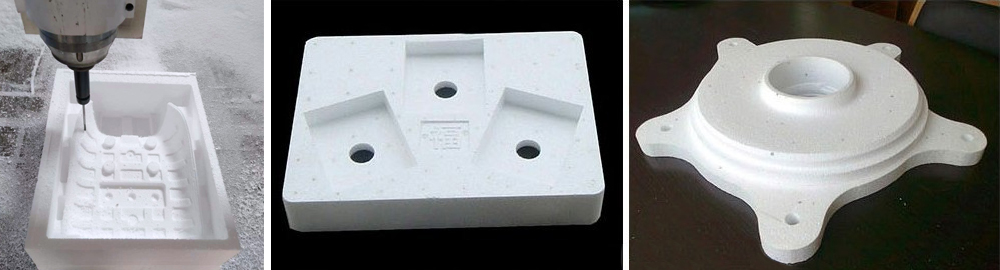

Application
Design
Processing 3D or 4D molds, aviation molds, architectural molds, automotive molds, reliefs, flat engraving, etc.
Woodworking
Processing furniture and furniture decorations, other wooden artworks, etc.
Manufacturing
Enterprise manufacturing, home use, handcraft enthusiasts, etc.
other
The 4 axis atc cnc router machine use wide , and can be used in any industry. Please consult us details.
