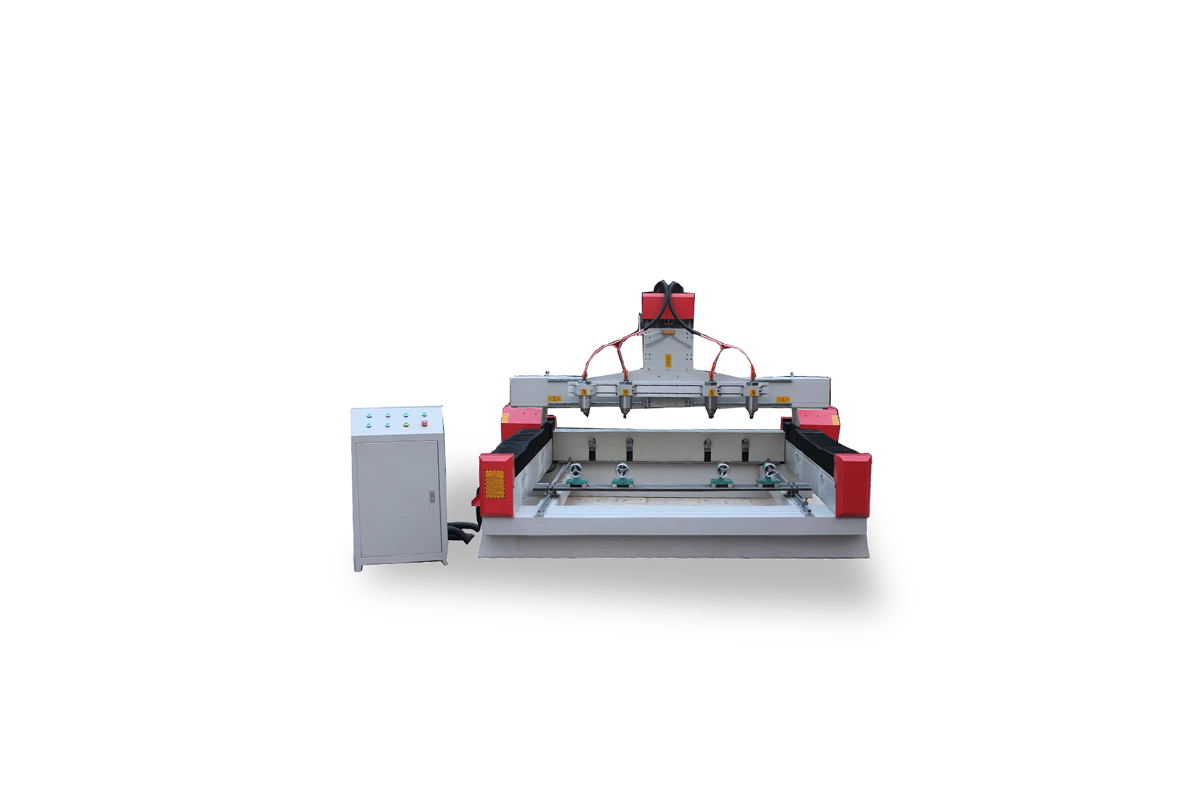

3D cnc wood router machine


1.With 4 axises,Single Rotary, which can do any cylinder’s engraving and cutting, milling, the processed cylinder diameter can be increased to 500mm, length can be 2400mm.

2.With Scanner or designed photo, it can do any 3D Engraving.

3.Has the rotary which is used for engraving cylinder workpiece.

4.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.

5.Has the function of re-carving after break point and power failure.

6.Has the function of forecasting process time.

7.Adopting advanced DSP system with USB connection, operated with the handle.

8.Adopting water cooling system, it can provide good cooling effect when carving flinty materials.

9.Professional used for making : any kind of wood cylinder , foam cylinder Engraving and Milling.

Applicable industries:

Balustrade,furniture legs,stair railing ,cylinder items,handrail,desk or chair legs,teatray,The human body,avatar,3D cylinder mold,and a variety of rotational symmetry.
Wood processing:processing of various furniture such as door, window, cabinet, furniture, craft wood door, screen and so on.

Applicable materials:

Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.

Processing effect:

It can manufacture the following effects: engraving, cutting, milling, drilling, relief, shadow, enchase and so on.

Technical Parameter

Description Parameter
X,Y,Z Effective Working Table Area 1200mm*1800mm*300mm
Rotary Max.Diameer 300mm
Rotary Max.Length 1800mm
Table Size 1450mm*2000mm
Resolution 0.03mm
Lathe Structure Seamless welded steel structure
X,Y Structure Rack and pinion transmission,

Hiwin square guide rail

Z Structure Germany rolling ball screw,

Hiwin square guide rail

Max. Idling Speed 35m/min
Single Spindle Power 2.2 KW water cooling spindle
Spindle Rotate Speed 0-24000r/min, variable speed
Working Voltage AC380V/50Hz
Working Mode Servo
Command G code (HPGL,U00,mmg,plt)
Operating System DSP/Ncstudio/Mach3
Diameter of cutter φ3.175-φ12.7mm
Dust-collect Function Yes
Work-holding By clamp
Software Type 3, ArtCam,powermill, Wentai
Packing size 3900mm*2280mm*2260mm
Net Weight 2300KG

Working Samples:

Producing Process:



Q1.How to get the most suitable machine and best price

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don’t know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.

      Jinan Hopetool CNC equipment Co.ltd. is a professional company specializing in developing and manufacturing different kind laser machine.
