(1) HT-2130E is linear type auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump with high efficiency;
(2) Adopt Japan yaskawa servo motor, built-in encoder, It can stop automatically when graunch happens, so can avoid accidents;
(3) Italy air cooling spindle or China water cooling spindle with tool change, high power, imported tool holders with high precision and long lifetime;
(4) Whole machine is welded with seamless steel structure, the regidity is good, not easy to be deformed. The gantries adopt steel structure;
(5) All adopt imported square oribit, heavy loading, stable working, high precision and long lifetime. Imported ballscrew, high precision;
(6) Taiwan leading control system: the embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D
space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (Such as Mastercam,Typ3,UG,Artcam,Caxa);
(7) 6 zones vaccum table, it is a professional wood door making and furniture making machine.

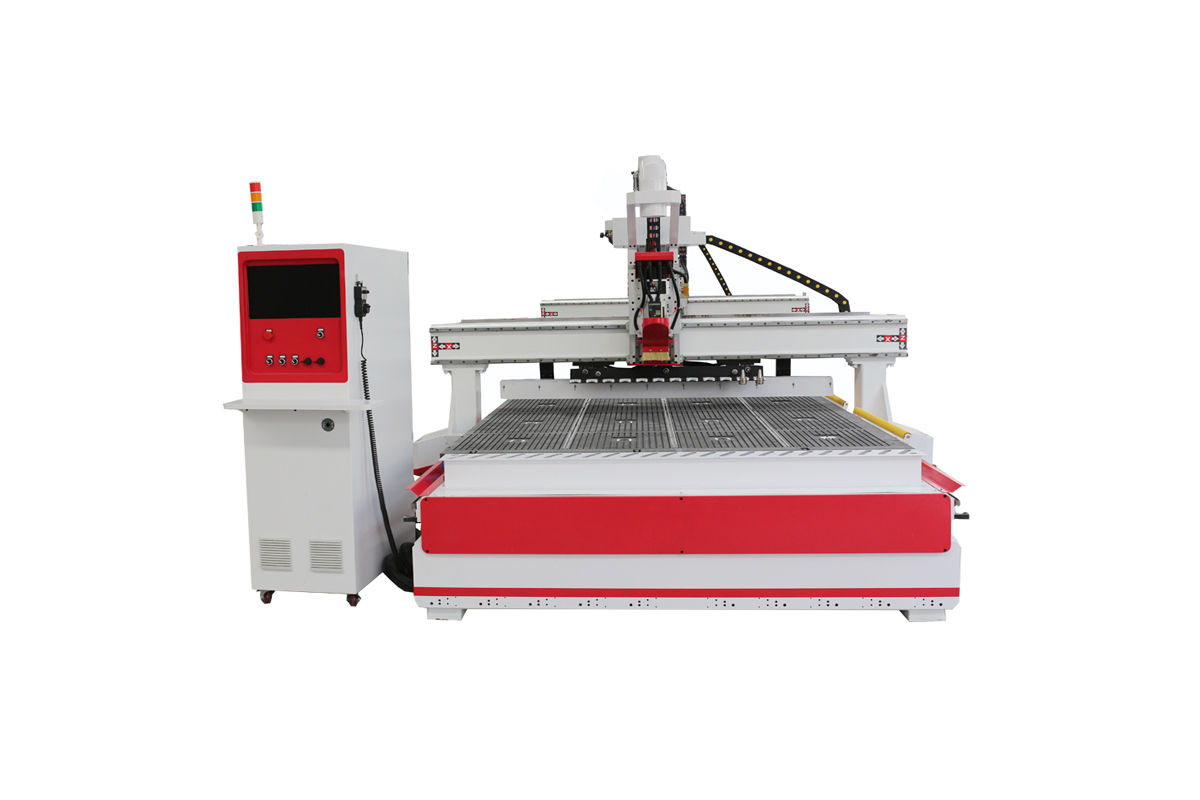

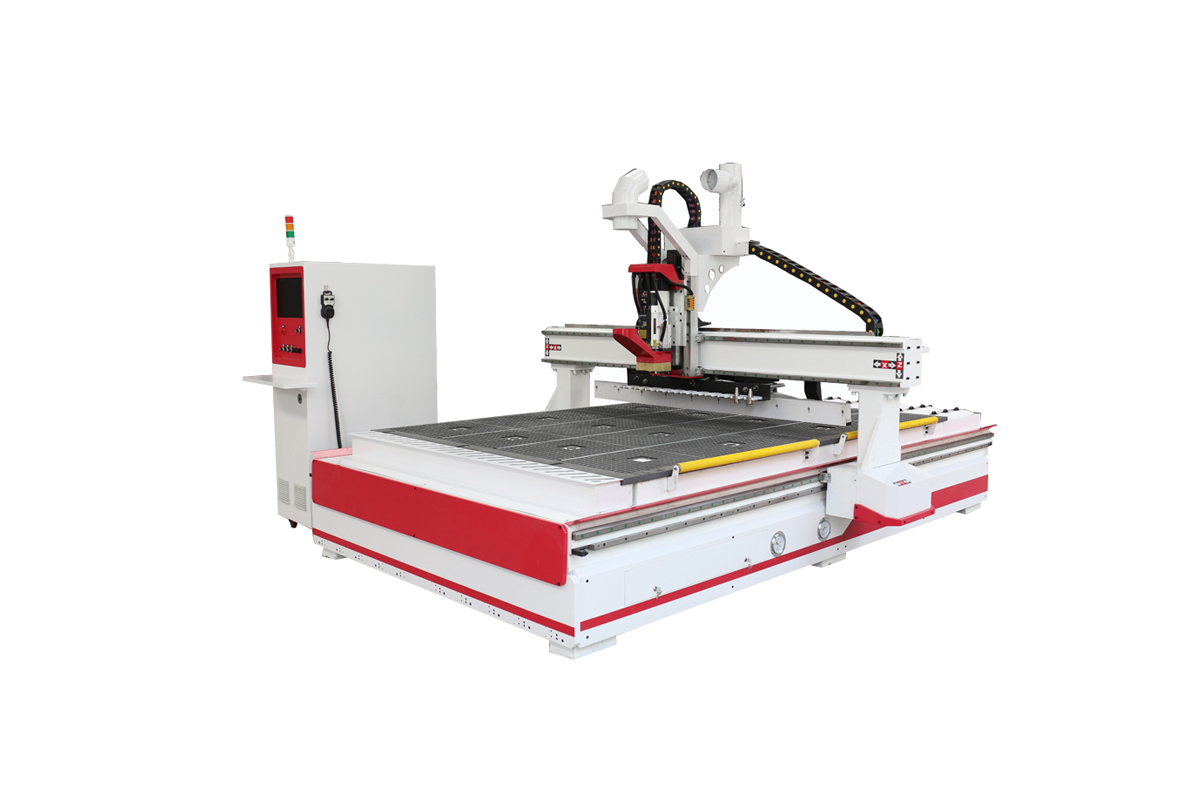

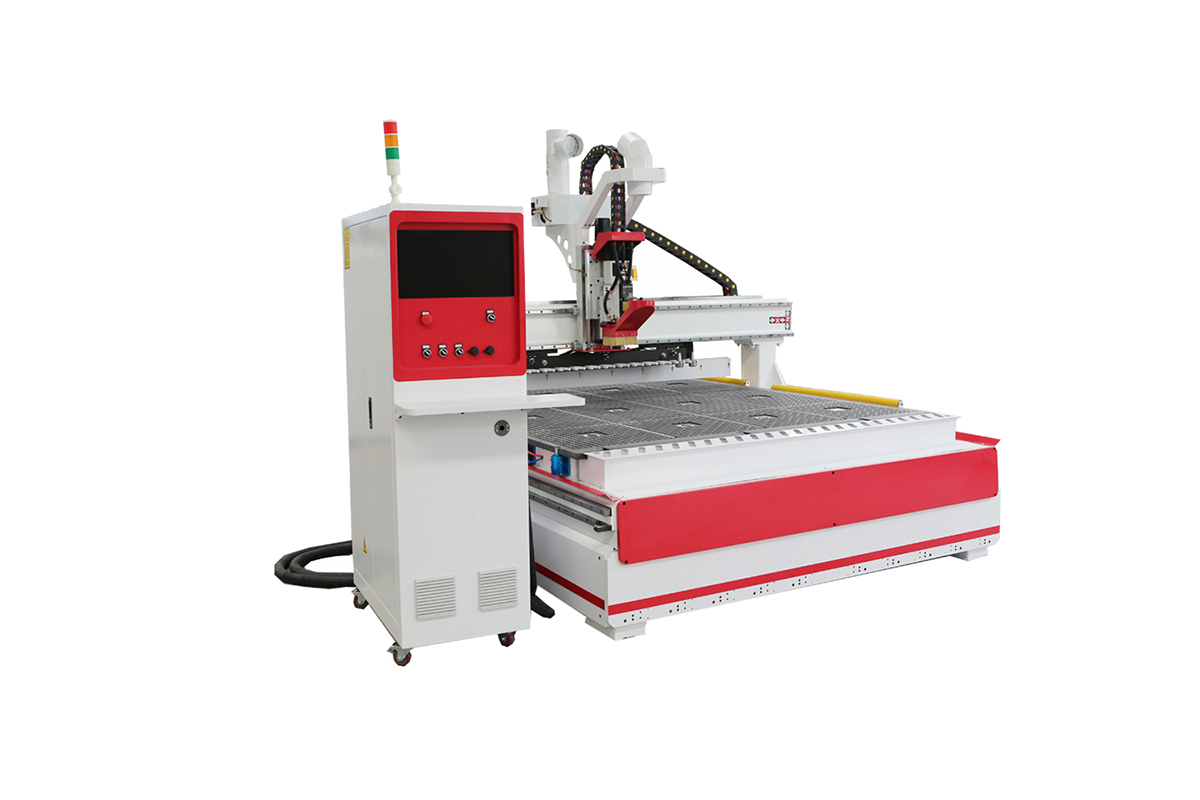

2130 Automatic Tool Change Cnc Router
Characteristic
|
Description
|
Parameter
|
||
|
XYZ Working Area
|
1300*2500*200mm
|
1500*3000*200mm
|
2000*3000*200mm
|
|
Table Size
|
1440X3040mm
|
1640*3540mm
|
2140*3540mm
|
|
X,Y,Z Traveling
Positioning Accuracy
|
±0.03/300mm
|
||
|
X,Y,Z Repositioning
Positioning Accuracy
|
±0.01mm
|
||
|
Lathe Structure
|
Welded Strucutre
|
||
|
X, Y Structure
|
Gear Wheel Transmission, Shaft Linear Bearings
|
||
|
Z Structure
|
Ball Screw, Shaft Linear Bearings
|
||
|
Max.Consume Power
|
20KW
|
||
|
Max.Speed
|
0-60000mm/min
|
||
|
Max.Working Speed
|
0-25000mm/min
|
||
|
Spindle Power Motor
|
9KW ATC spindle
|
||
|
Spindle Speed
|
0-24000RPM
|
||
|
Working Mode
|
Servo system
|
||
|
Working Voltage
|
AC380V/50/60Hz, 3PH
|
||
|
Command
|
G Code, *uoo, *mmg, *plt
|
||
|
Operating System
|
SYNTEC or Weihong System
|
||
|
Interface
|
Internet line
|
||
|
Flash Memory
|
512M
|
||
|
Collet
|
ER32
|
||
|
X,Y Working Delicacy
|
<0.01mm
|
||
|
Software
|
Type3 software, Wentai software,Artcam software
|
||
|
Running Circumstance
|
Temperature: 0°C~45°C,
Relative humidity: 30%~75%
|
||
|
Packing Size
|
4000x2150x2200mm
|
||
|
Net Weight
|
2000KG
|
||
|
Gross Weight
|
2300KG
|
||
FAQ
Q1.How to get the most suitable machine and best price
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.Q3.What is the producing time after order?
The proucing time is about 10-20 days depend on different machines.
Q4.If we don’t know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to
make sure they can work very well before being out of factory.
The testing video and pictures will be available before delivery.
